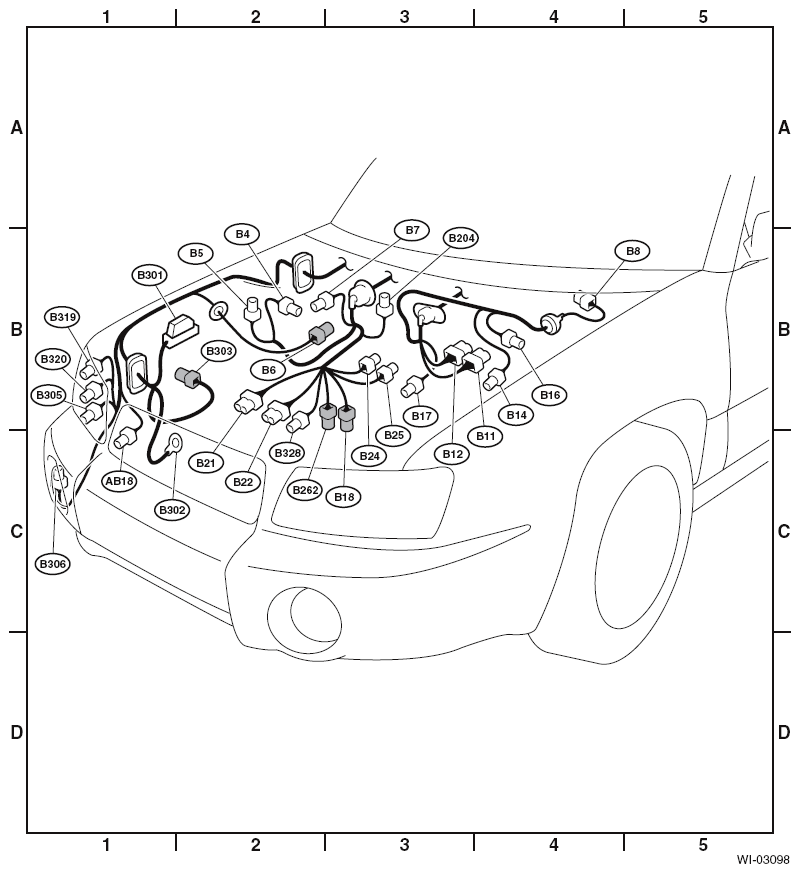

| B4 |
4 |
Gray |
B-2 |
|
AT dropping resistor |
| B5 |
2 |
Gray |
B-2 |
|
Daytime running light resistor |
| B6 |
2 |
Brown |
B-2 |
|
Front ABS wheel speed sensor RH |
| B7 |
6 |
Black |
B-3 |
|
Cruise control actuator |
| B8 |
5 |
Gray |
B-4 |
|
Front wiper motor |
| B11 |
20 |
Black |
B-4 |
T4 |
Transmission code (AT model) |
| B12 |
12 |
Gray |
B-3 |
T3 |
| B14 |
1 |
Black |
B-4 |
|
Starter motor (Magnet) |
| B16 |
2 |
Gray |
B-4 |
|
Brake fluid level switch |
| B17 |
3 |
Black |
B-3 |
|
Vehicle speed sensor (MT model) |
| B18 |
4 |
|
B-3 |
|
Rear oxygen sensor |
| B21 |
16 |
Brown |
B-2 |
E2 |
Engine wiring harness |
| B22 |
20 |
Gray |
B-2 |
E3 |
| B24 |
2 |
Gray |
B-3 |
T1 |
Back-up light switch (MT model) |
| B25 |
2 |
Brown |
B-3 |
T2 |
Neutral switch (MT model) |
| B204 |
1 |
Black |
B-3 |
|
Security horn |
| B262 |
4 |
Gray |
B-3 |
|
Front oxygen (A/F) sensor |
| B301 |
31 |
Black |
B-2 |
|
ABS control module |
| B302 |
1 |
|
C-1 |
|
ABS motor ground |
| B303 |
8 |
Black |
B-2 |
|
Shield ground (ABS) |
| B305 |
2 |
Gray |
B-1 |
|
Front turn signal light RH |
| B306 |
2 |
Black |
C-1 |
|
Front fog light RH |
| B319 |
2 |
Gray |
B-1 |
|
Front clearance light RH |
| B320 |
2 |
Black |
B-1 |
|
Side maker light RH |
| B328 |
6 |
Gray |
B-2 |
E58 |
Engine wiring harness |
