DTC 38: Rear Left Outlet Valve Malfunction: Wiring Diagram

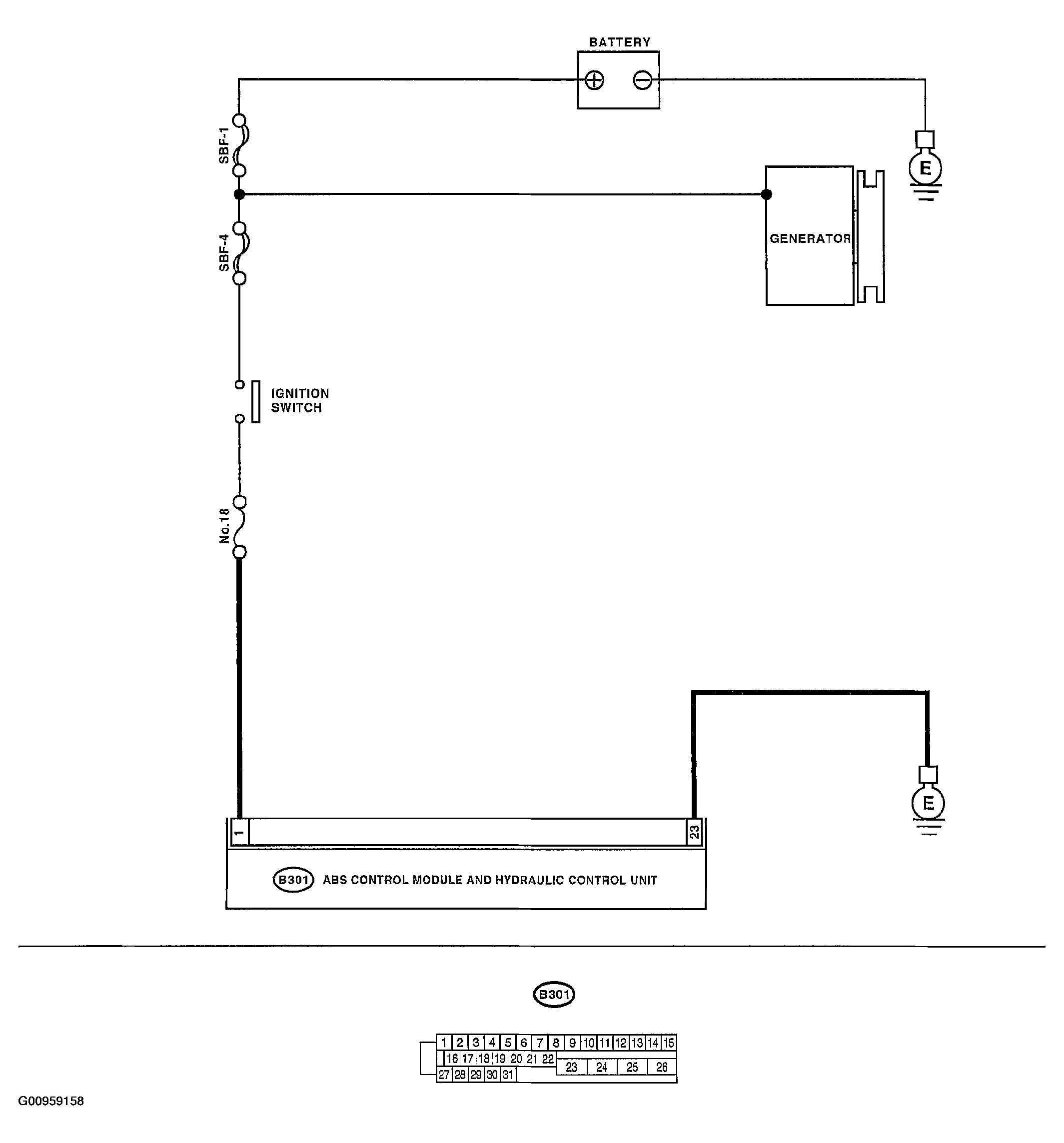

Fig 1: Wiring Diagram - DTC 38, 36, 34, 32 Rear Left Outlet Valve Malfunction

G00959158

Courtesy of SUBARU OF AMERICA, INC.
