Rear Disc Brake Pads: Removal

Set vehicle on a lift.
Loosen wheel nuts.
Jack-up vehicle and remove rear wheel.
Remove lock pin. See Fig 1 .
Raise caliper body.
NOTE: Do not disconnect the brake hose from the caliper body.
Remove pad from support. See Fig 2 .
NOTE: If brake pad is difficult to remove, see steps A - D under FRONT DISC BRAKE PADS.
Check pad thickness. See DISC BRAKE SPECIFICATIONS .
CAUTION: Always replace pads for both left and right wheels at the same time. Also replace pad clips if they are twisted or worn. A wear indicator is provided on the inner disc brake pad. If the pad wears down to such an extent that the end of the wear indicator contacts the disc rotor, a squeaking sound is produced as the wheel rotates. If this sound is heard, replace the pad. Replace the pad if there is oil or grease on it.

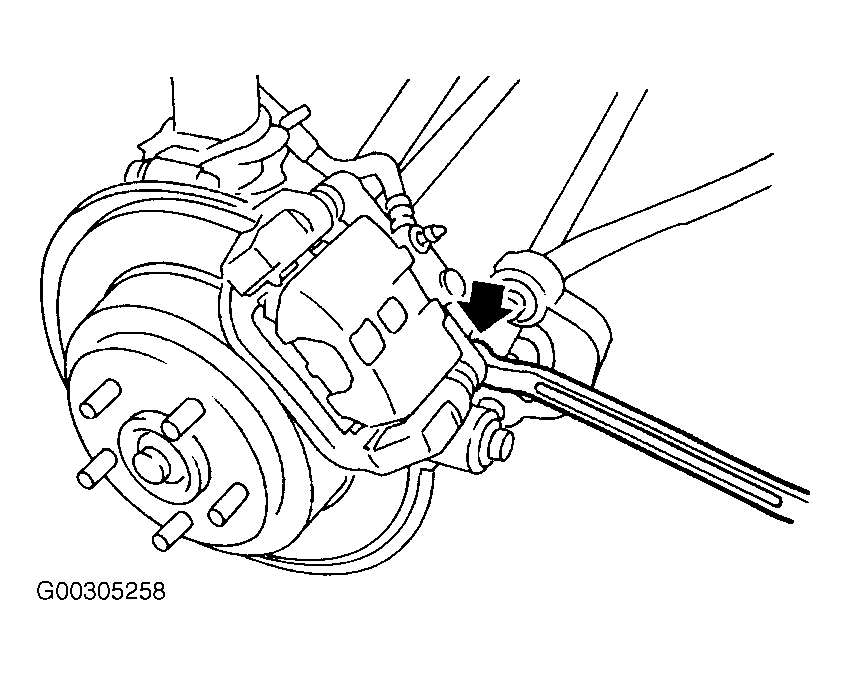

Fig 1: Removing Lock Pin (Rear Brake Pad)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Removing Pad From Support

Courtesy of SUBARU OF AMERICA, INC.
