- Set vehicle on a lift.
- Loosen wheel nuts.
- Lift-up vehicle and remove wheels.
- Disconnect brake hose from caliper body assembly.
CAUTION:
Do not allow brake fluid to come in contact with the vehicle body; wipe off completely if spilled.

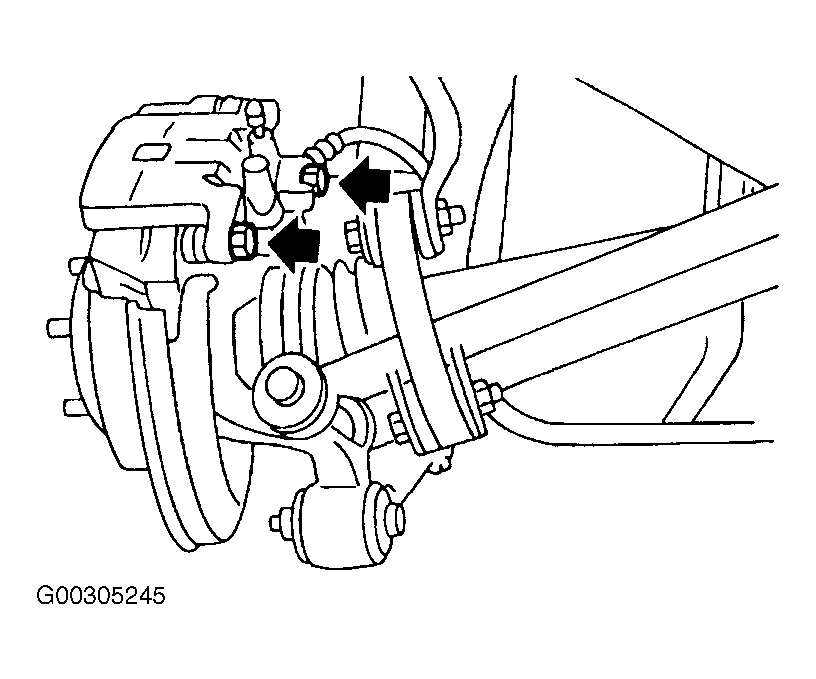

- Remove lock pin. See Fig 1
.
- Raise caliper body and move it towards the vehicle center to separate it from support.
- Remove support from housing.
NOTE:
Remove support only when replacing it or the rotor. It does not need to be removed when servicing the caliper body assembly.
- Clean mud and foreign particles from caliper body assembly and support.
CAUTION:
Be careful not to allow foreign particles to enter inlet at brake hose connector.
- Check caliper body and piston for uneven wear, damage or rust.
- Check rubber parts for deterioration.
- Repair or replace faulty parts.
