Parking Brake Assembly (Rear Disc Brake): Removal

1. Pull down and release the parking brake.

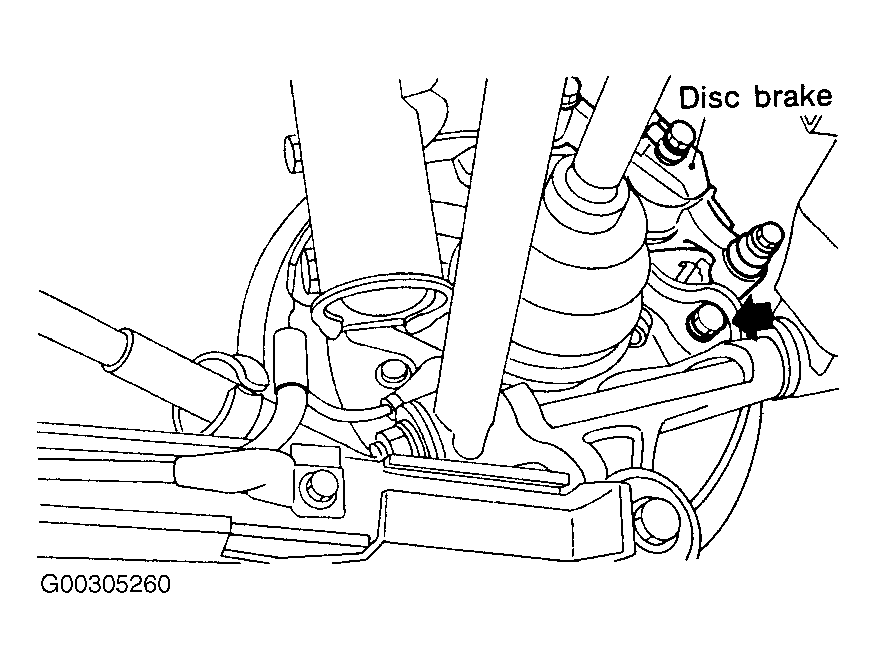

2. Remove 2 mounting bolts and remove disc brake assembly. See Figure .
3. Suspend disc brake assembly so that the hose is not stretched.
4. Remove disc rotor.
   NOTE: If the disc rotor is difficult to remove, perform the following procedures:

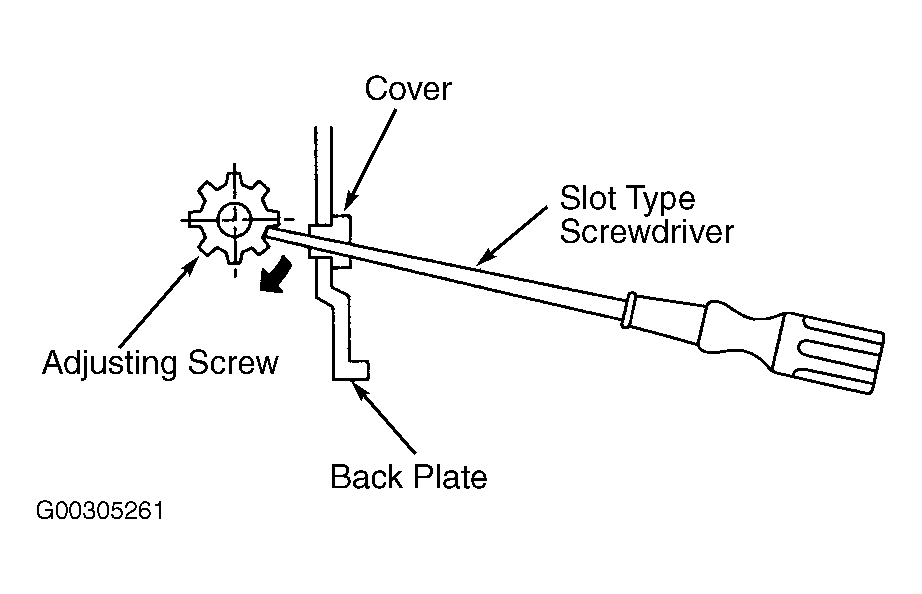

   • Turn the adjusting screw using a slot-type screw driver until the brake shoe gets away enough from the disc rotor. See Figure .
   • If disc rotor seizes up within the hub, drive the disc rotor out by installing an 8 mm bolt in the side holes on the rotor. See Figure .
5. Remove the primary and secondary return spring from the parking brake assembly.
6. Remove the front shoe hold down spring and pin with pliers.
7. Remove strut and strut spring.
8. Remove adjuster assembly and adjusting spring from the parking brake assembly.
9. Remove brake shoe.
10. Remove rear shoe hold down spring and pin with pliers. See Fig 1 .
11. Remove parking cable from parking lever. See Fig 2 .
12. Using a standard screwdriver, raise the retainer. Remove the parking lever and washer from the brake shoe.
13. Measure the brake disc inside diameter. See DISC BRAKE SPECIFICATIONS  . If the disc is scored or worn, replace the brake disc.
14. Measure the lining thickness. See DISC BRAKE SPECIFICATIONS  . If it exceeds the limit, replace the shoe assembly.

Fig 1: Removing Front Shoe Hold Down Spring & Pin

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Disconnecting Parking Cable From Parking Lever

Courtesy of SUBARU OF AMERICA, INC.
