Rear Drum Brake Assembly: Notes

NOTE: Before disassembling and reassembling rear drum brake assembly, identify the brakes components. See Fig 1 .

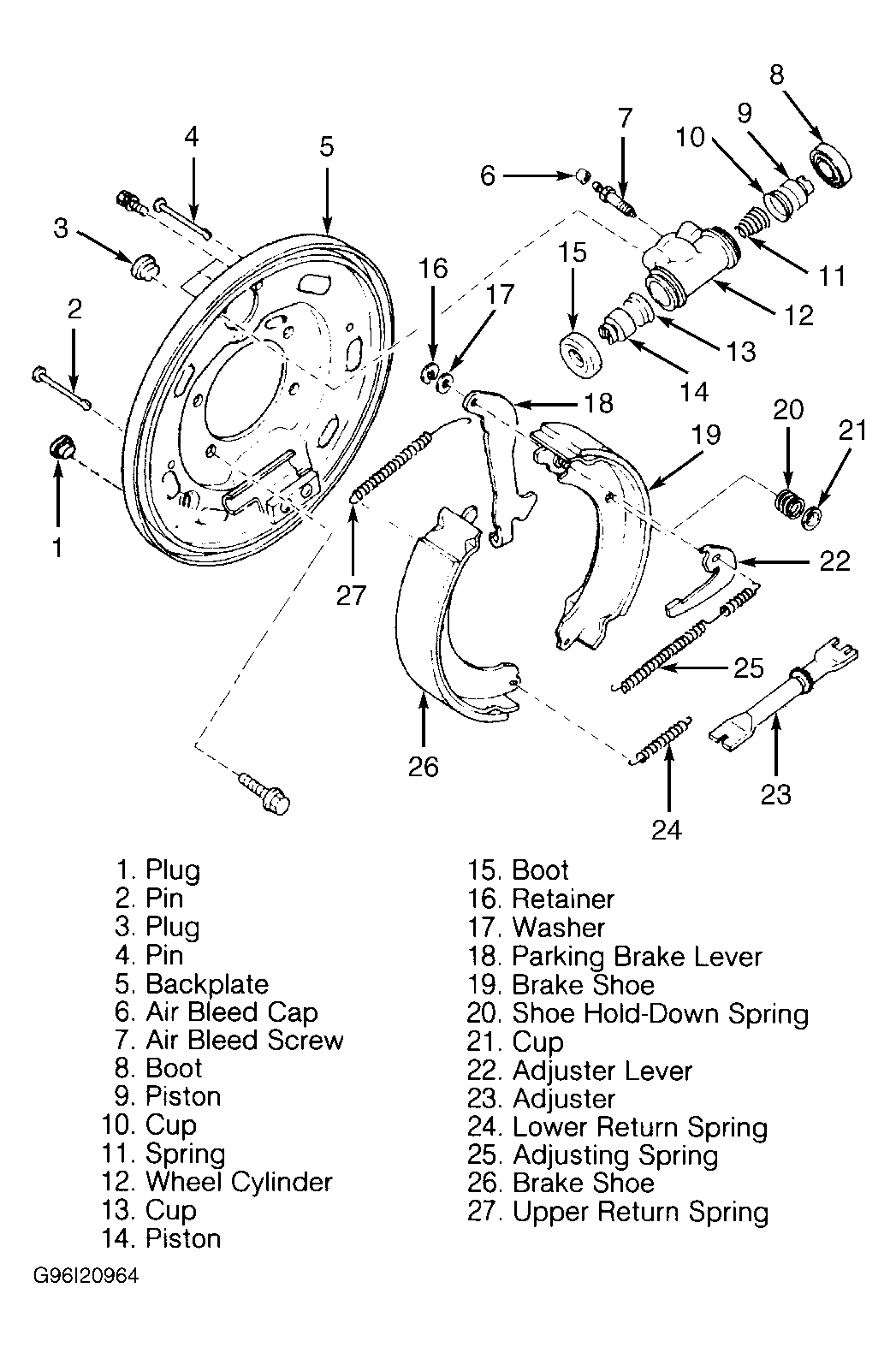

Fig 1: Identifying Rear Drum Brake Components
G96I20964Courtesy of SUBARU OF AMERICA, INC.
