DTC 52: Abnormal Motor And/Or Motor Relay
>>
Wiring Diagram
DTC 52: Abnormal Motor And/Or Motor Relay: Wiring Diagram

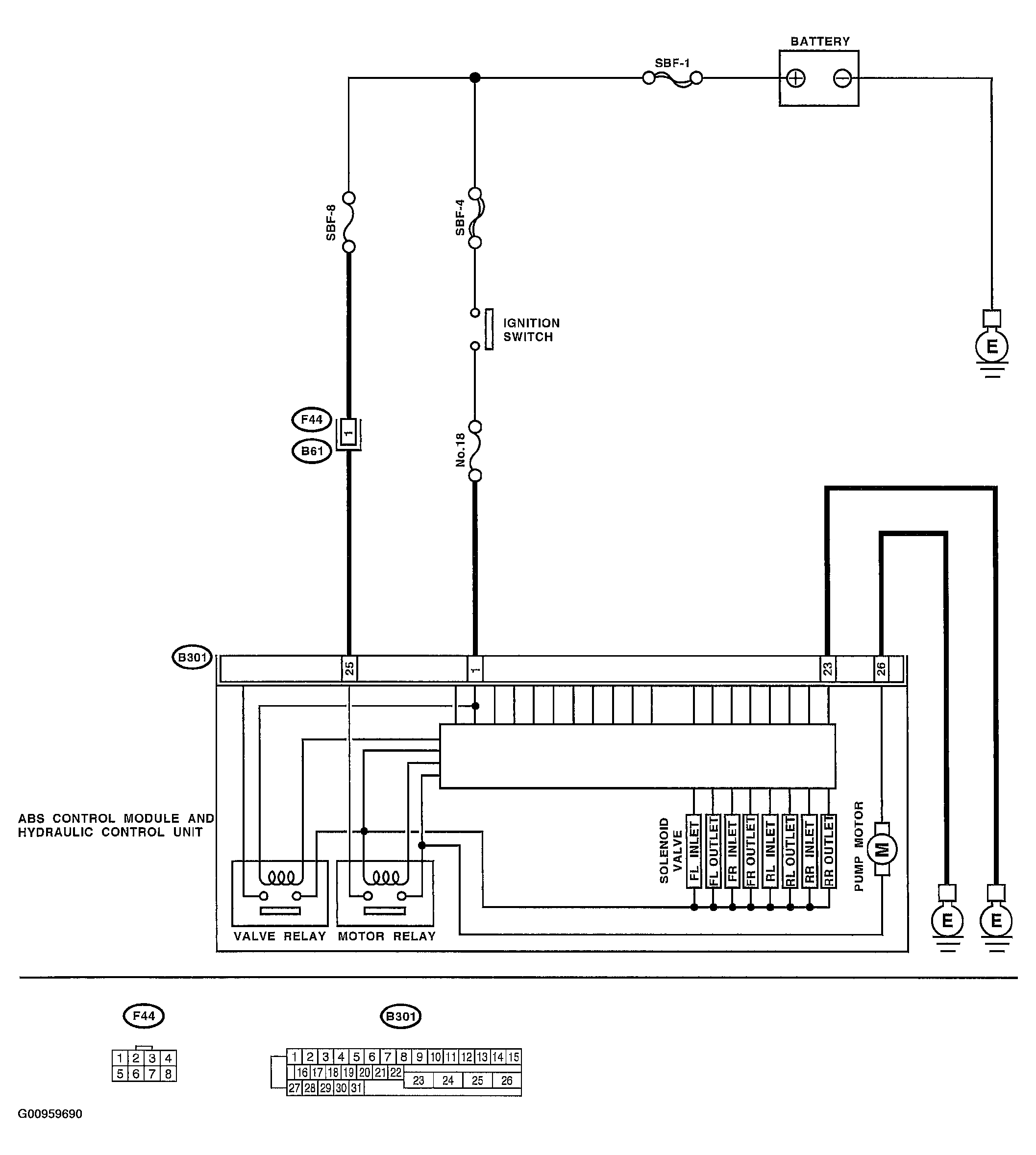

Fig 1: Wiring Diagram - DTC 52 Abnormal Motor And/Or Motor Relay
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
