Abs Warning Light Does Not Come On.: Wiring Diagram

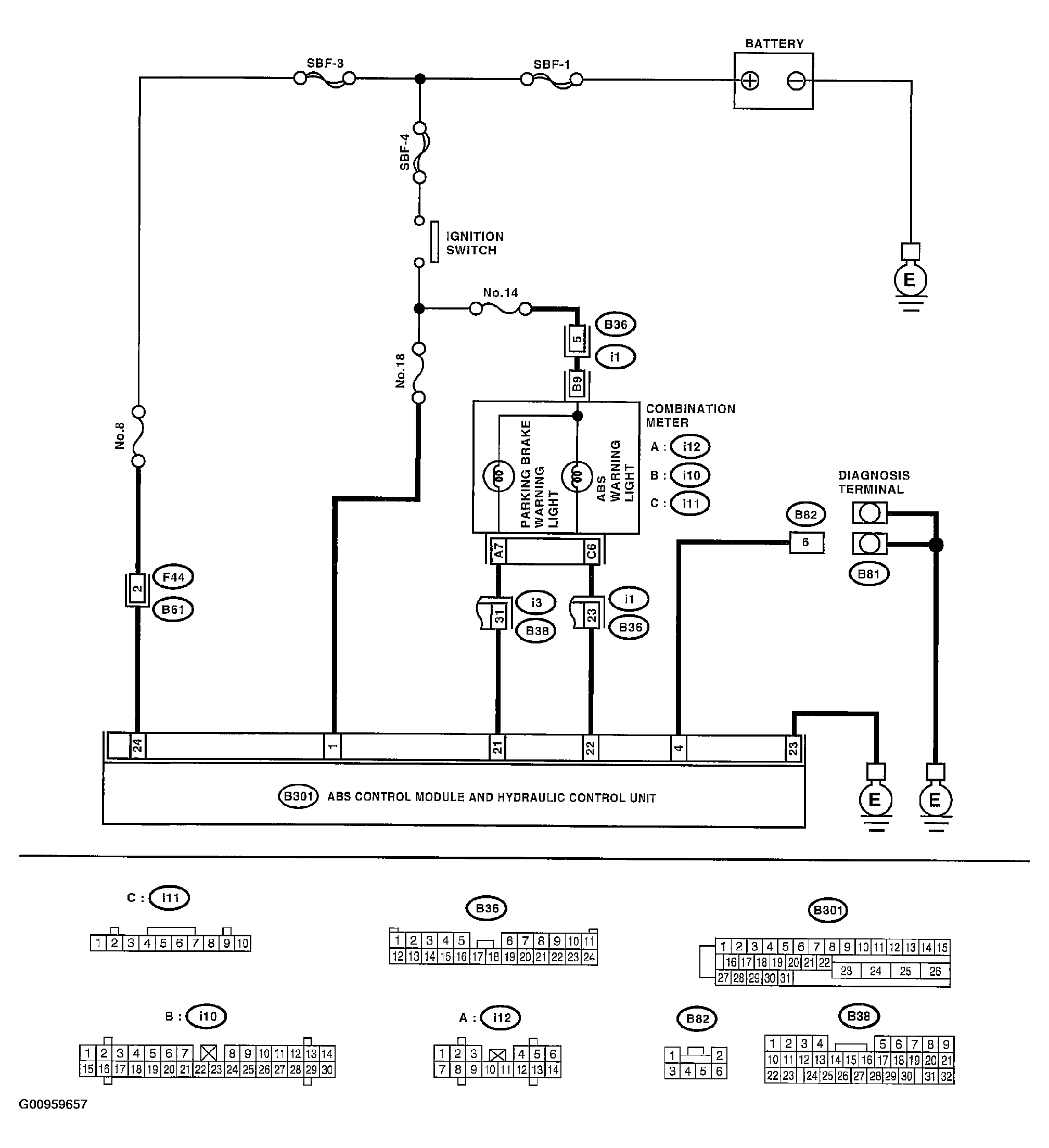

Fig 1: Wiring Diagram - ABS Warning Light Does Not Come On

G00959657

Courtesy of SUBARU OF AMERICA, INC.
