Abs And Brake Warning Light Do Not Go Off: Wiring Diagram

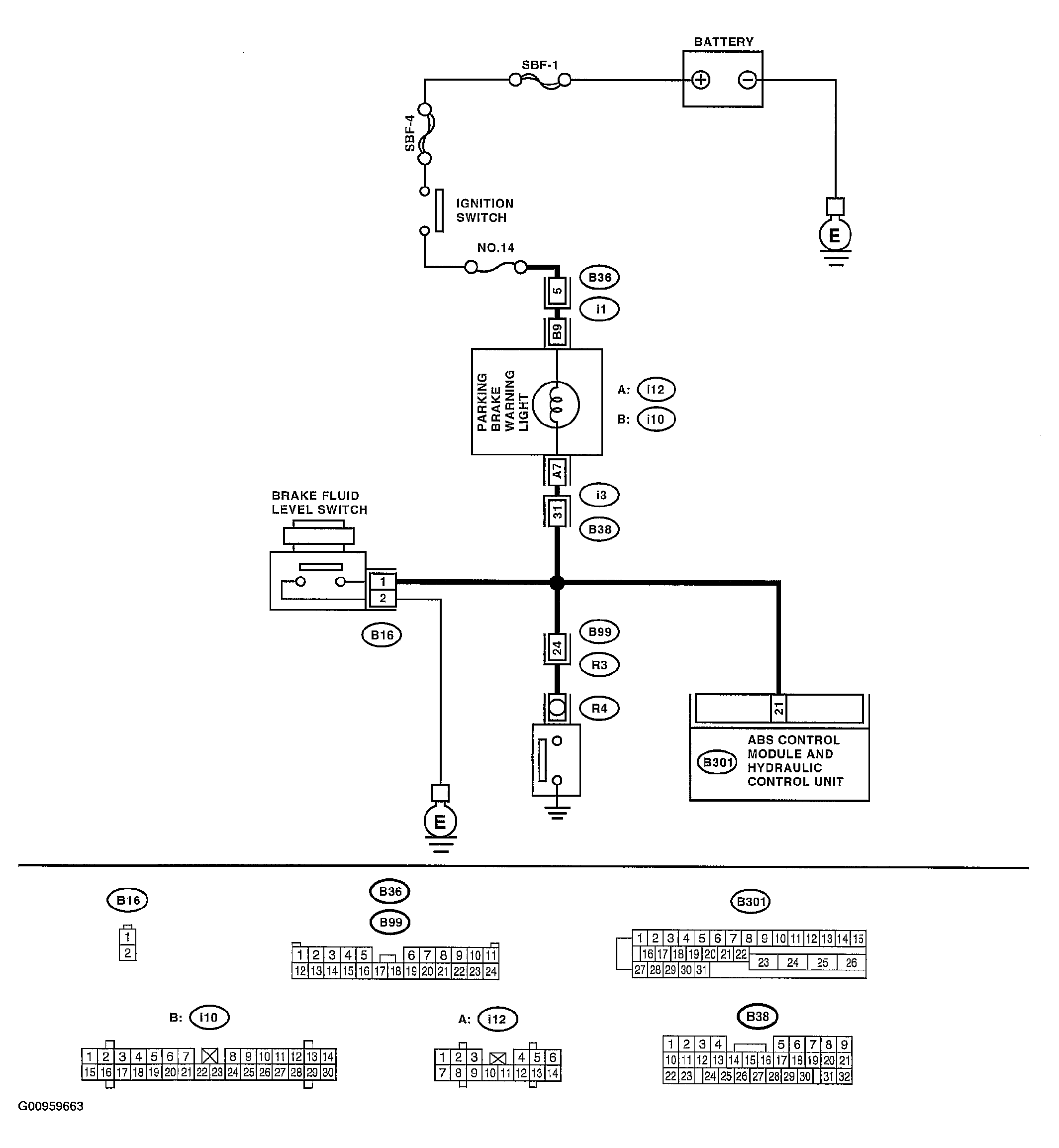

Fig 1: Wiring Diagram - ABS And Brake Warning Light Do Not Go Off

G00959663

Courtesy of SUBARU OF AMERICA, INC.
