DTC 52: Motor Relay On Failure: Wiring Diagram

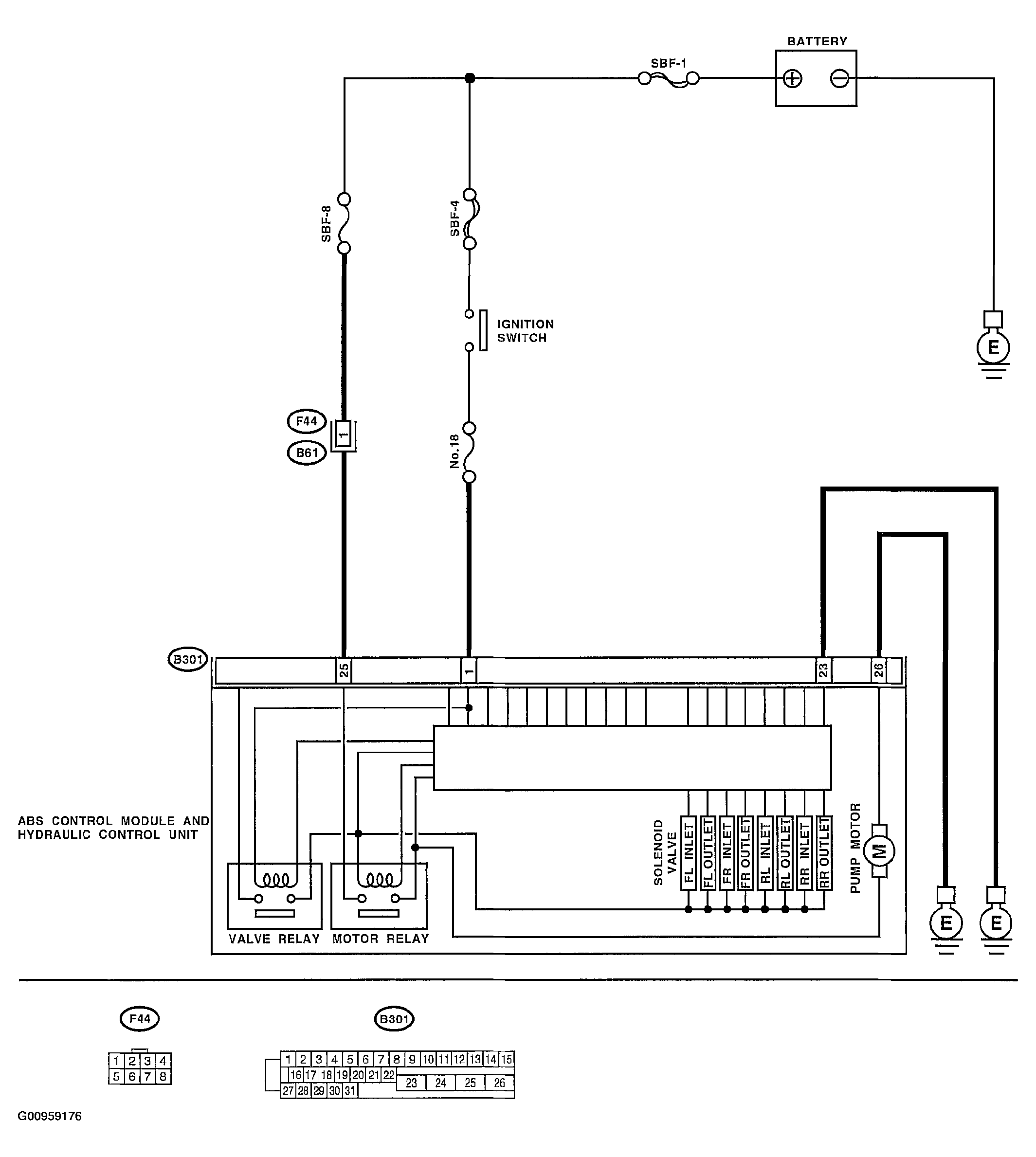

Fig 1: Wiring Diagram - DTC 52 Motor Relay On Failure

G00959176

Courtesy of SUBARU OF AMERICA, INC.
