DTC 52: Motor Malfunction: Wiring Diagram

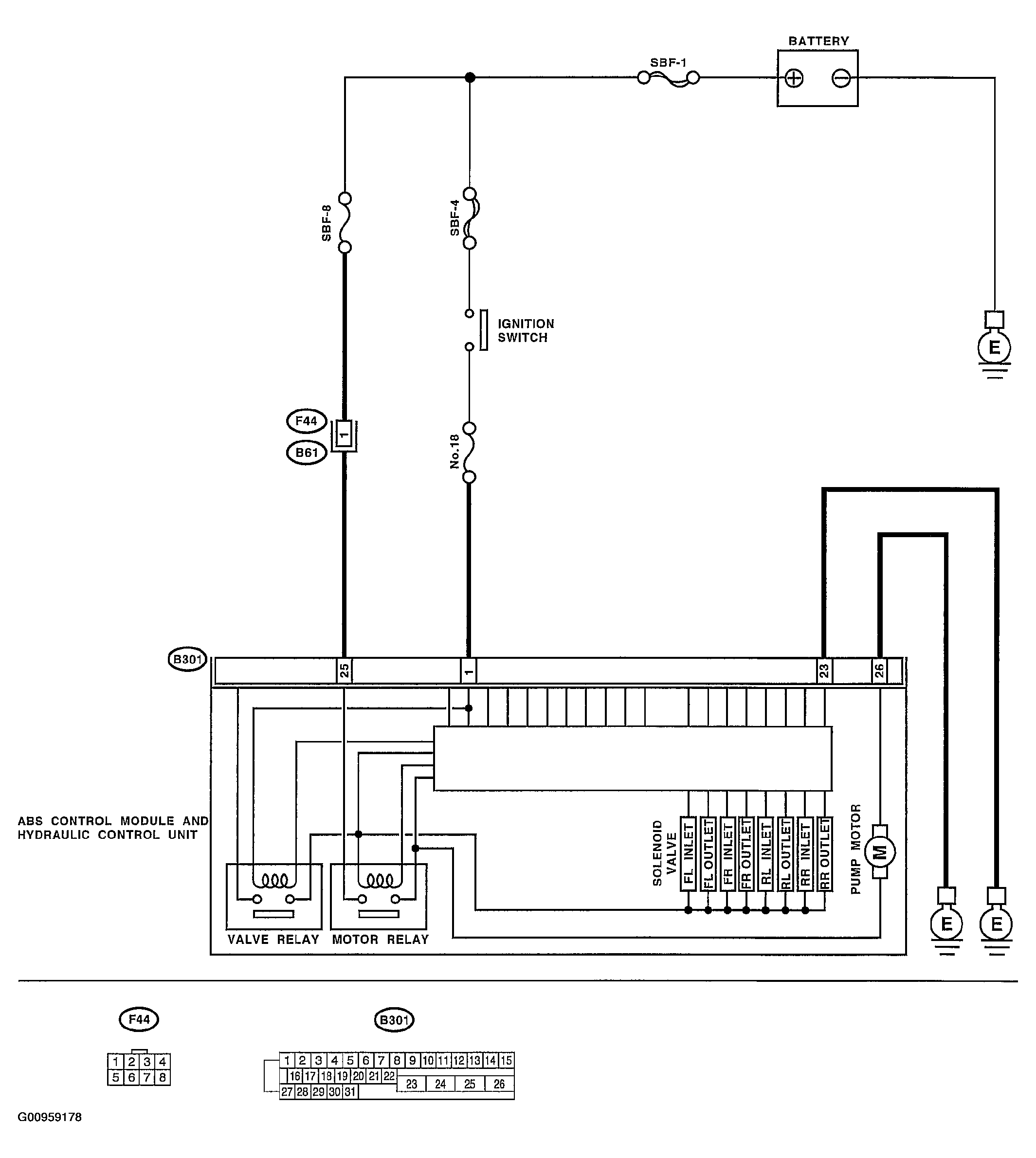

Fig 1: Wiring Diagram - DTC 52 Motor Malfunction

G00959178

Courtesy of SUBARU OF AMERICA, INC.
