DTC 51: Valve Relay On Failure: Wiring Diagram

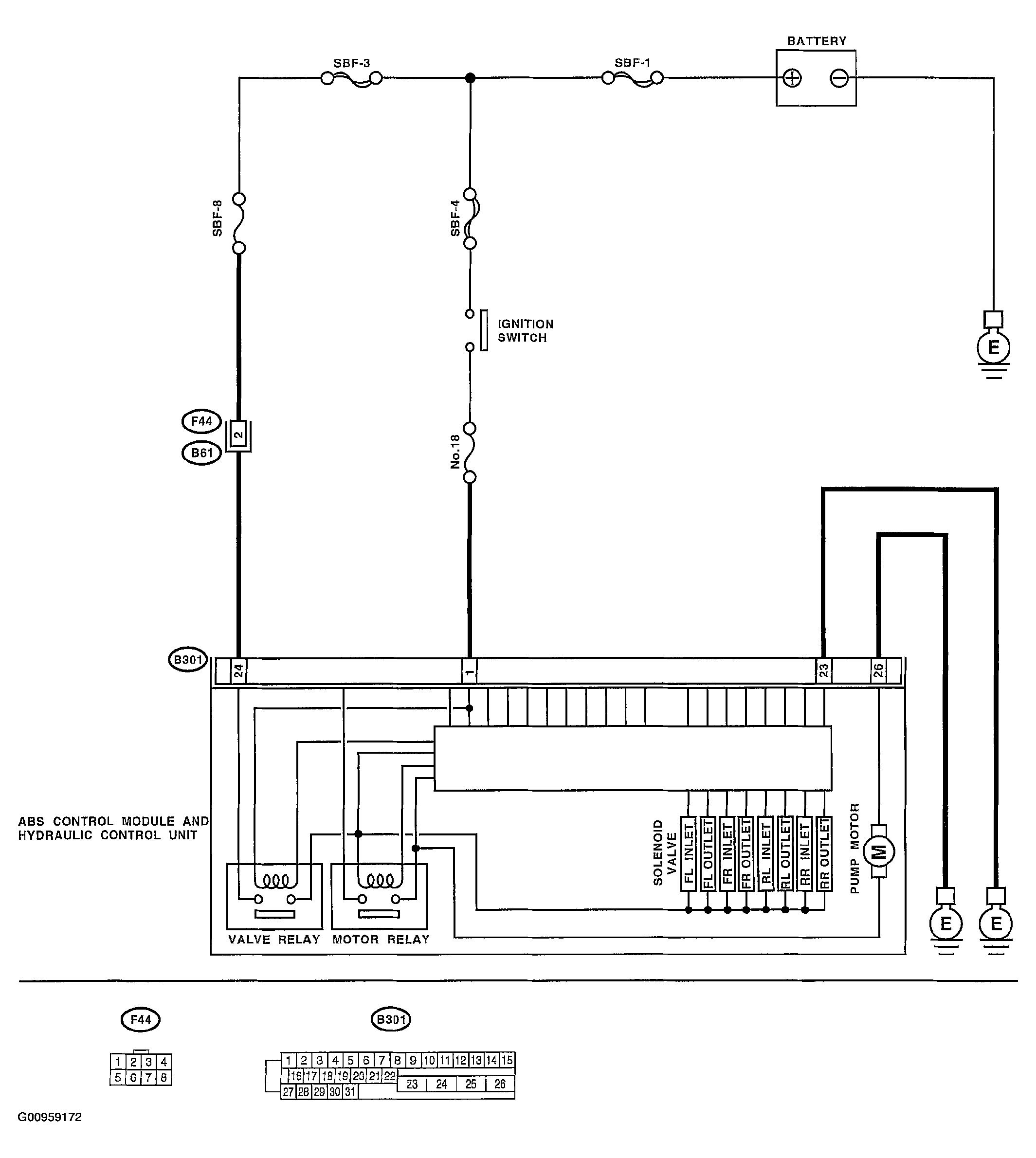

Fig 1: Wiring Diagram - DTC 51 Valve Relay On Failure

G00959172

Courtesy of SUBARU OF AMERICA, INC.
