DTC 37: Rear Left Inlet Valve Malfunction: Wiring Diagram

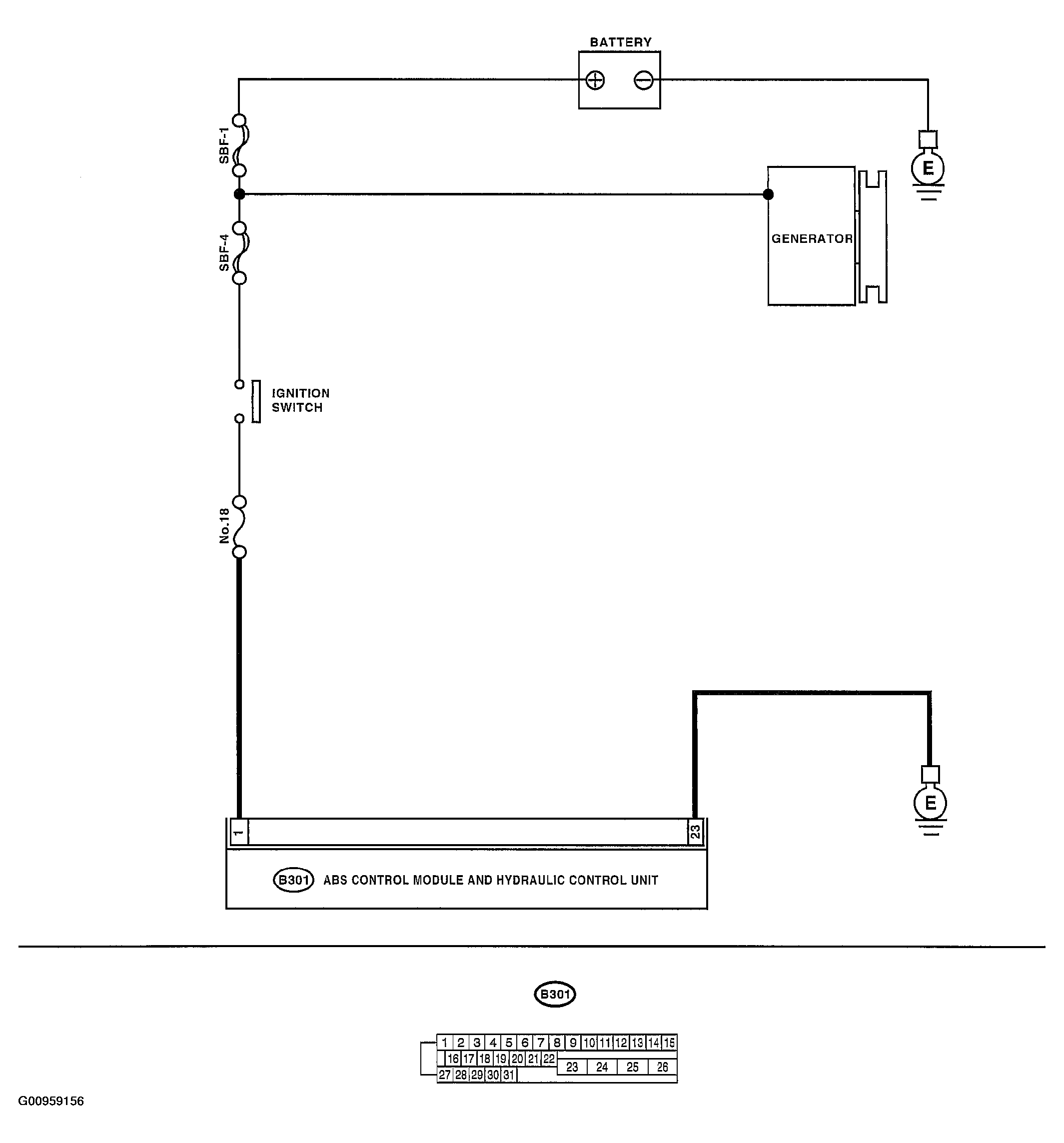

Fig 1: Wiring Diagram - DTC 37, 35, 33, 31 Rear Left Inlet Valve Malfunction

G00959156

Courtesy of SUBARU OF AMERICA, INC.
