Diagnostic Chart

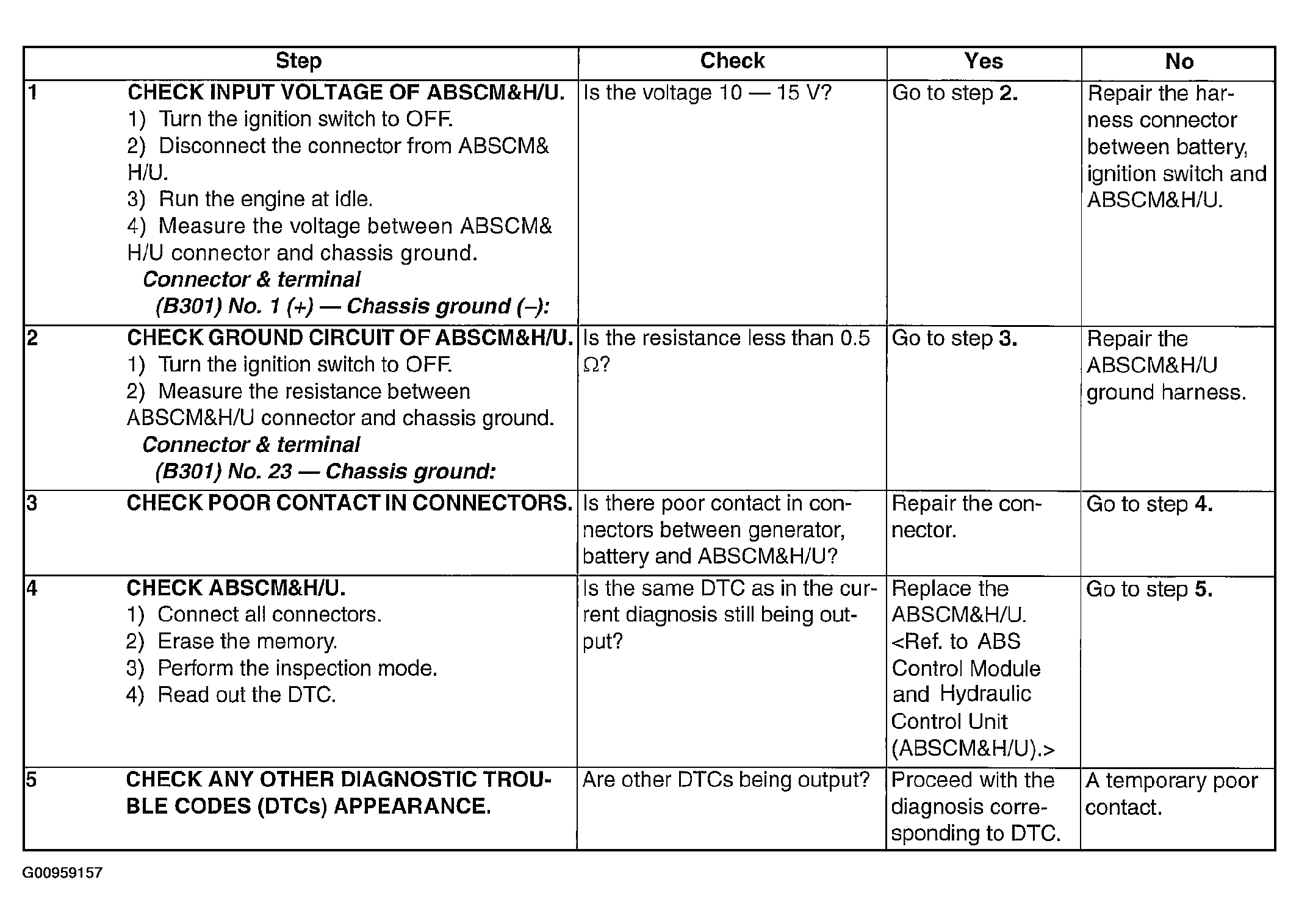

Fig 1: Diagnostics Procedure Chart - DTC 37, 35, 33, 31 Rear Left Inlet Valve Malfunction
G00959157Courtesy of SUBARU OF AMERICA, INC.
