Sunroof Motor: Removal

CAUTION:
  • Fully close sunroof when removing sunroof motor.
  • When removing clip, use great care to not damage the roof trim.
  1. Completely close the sunroof.
  2. Disconnect the ground cable from battery.
  3. Remove roof trim. < Ref. to REMOVAL , Roof Trim . >
  4. Disconnect harness connector (A) and remove sunroof motor mounting screw (B) and nut (C).

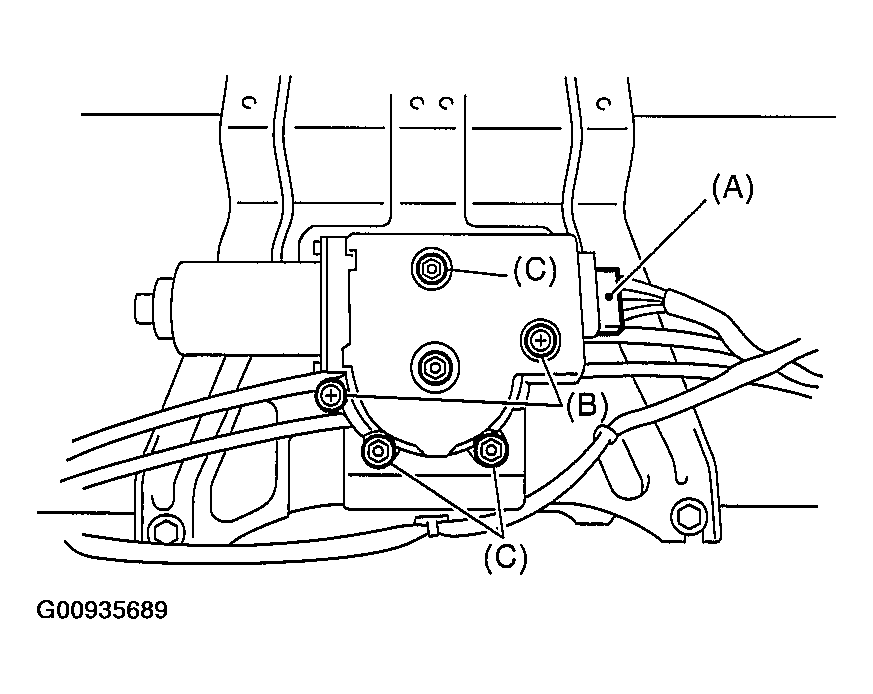

    Fig 1: Disconnecting Harness Connector (A) And Removing Sunroof Motor Mounting Screw (B) And Nut (C)
    G00935689Courtesy of SUBARU OF AMERICA, INC.
