Sunroof Motor: Installation

CAUTION: Be careful not to move the sunroof cable when installing sunroof motor.
  1. Install sunroof motor.
  2. Connect sunroof motor harness connector and then connect battery ground cable.
  3. Reset the sunroof motor. < Ref. to ADJUSTMENT  . >
  4. Check sunroof operation with the following procedure.

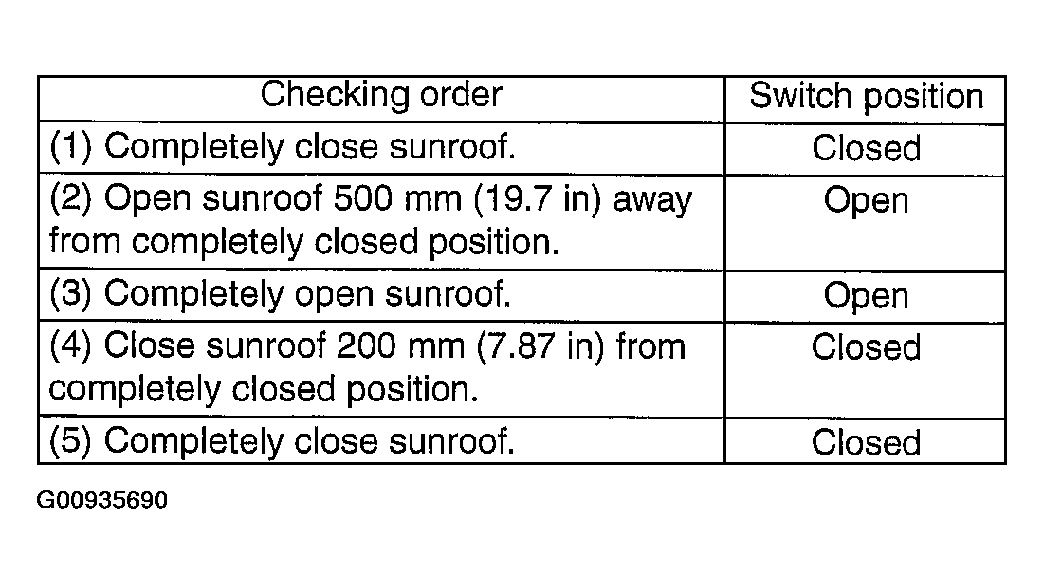

    Fig 1: Switch Position Specification
    G00935690Courtesy of SUBARU OF AMERICA, INC.
  5. Install the roof trim. < Ref. to INSTALLATION , Roof Trim . >
