Door Construction

• All the front and rear doors have side door beams (two on front doors and one on rear doors), a door shoulder reinforcement, a latch area reinforcement, and an arch area reinforcement.
• An additional reinforcement has been provided for each rear door upper reinforcement.
• A lower reinforcement has been added to each door.

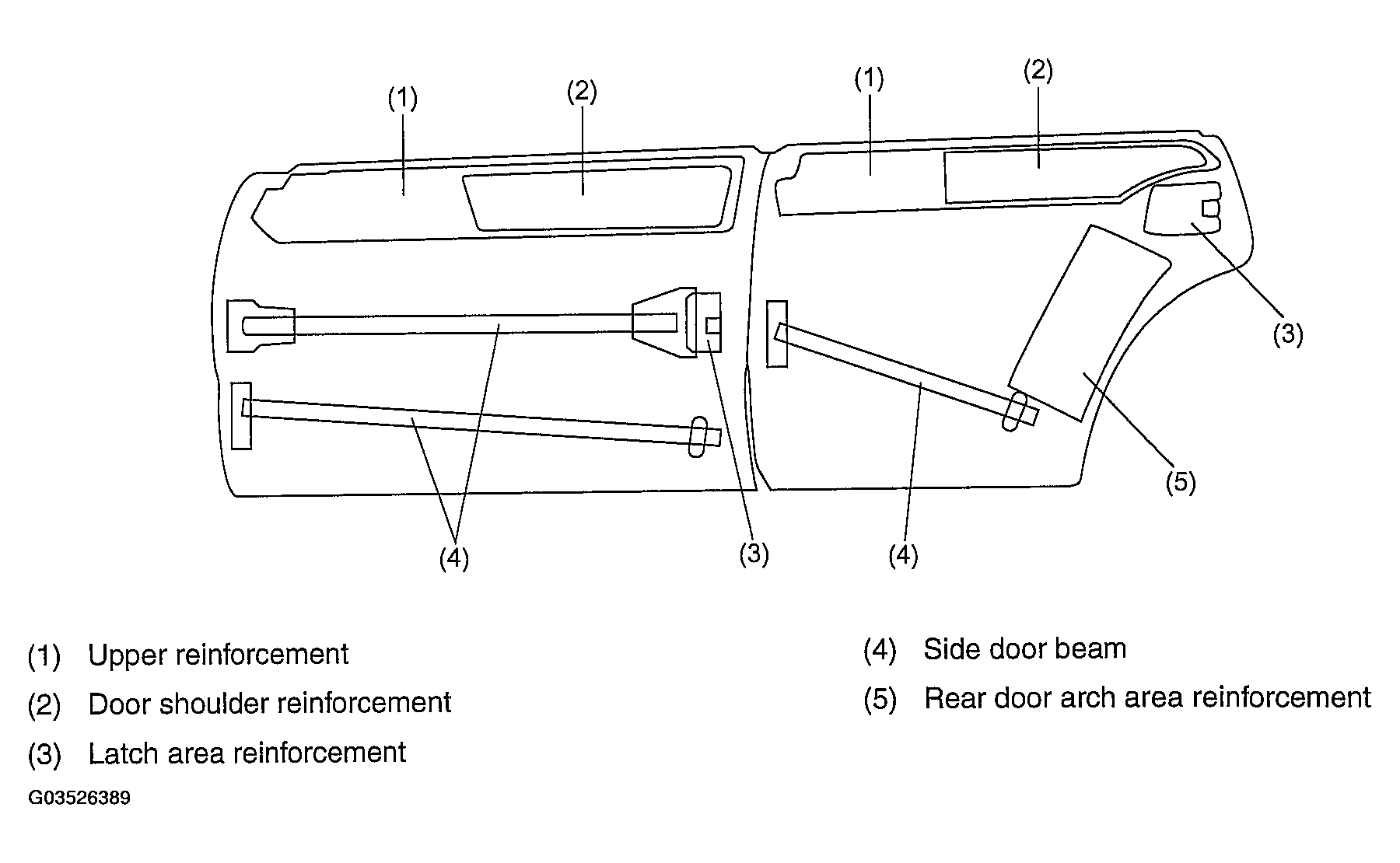

  Fig 1: Identifying Door Components

  Courtesy of SUBARU OF AMERICA, INC.
• Intrusion of road noise etc. is minimized by dual sealing at the bottom of each door.
  Fig 2: Identifying Locations Of Dual Sealing Panels

  Courtesy of SUBARU OF AMERICA, INC.
