Water Temperature Gauge
- The water temperature gauge is a cross-coil type.
- The water temperature signal is sent from the water temperature sensor located on the engine.
- The resistance of the water temperature sensor changes according to the engine coolant temperature. Therefore, the current sent to the water temperature gauge also changes according to the engine coolant temperature. As the change in current causes the magnetic force of the coil to change, the gauge needle moves according to the engine coolant temperature.

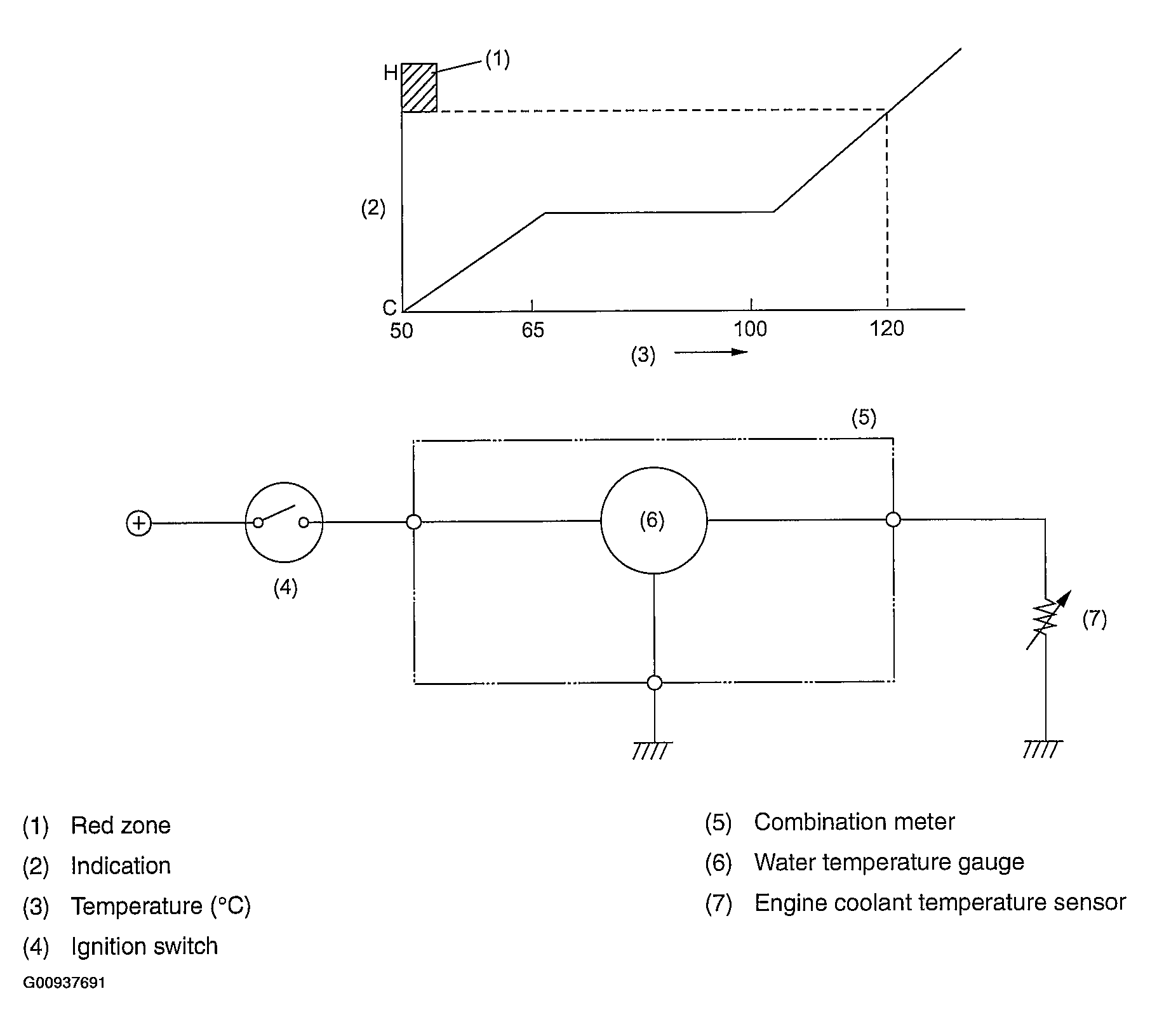

- When the coolant is at a normal operating temperature of approx. 70 to 100°C (158 to 212°F), the gauge needle stays in the middle of the indication range as shown below.
