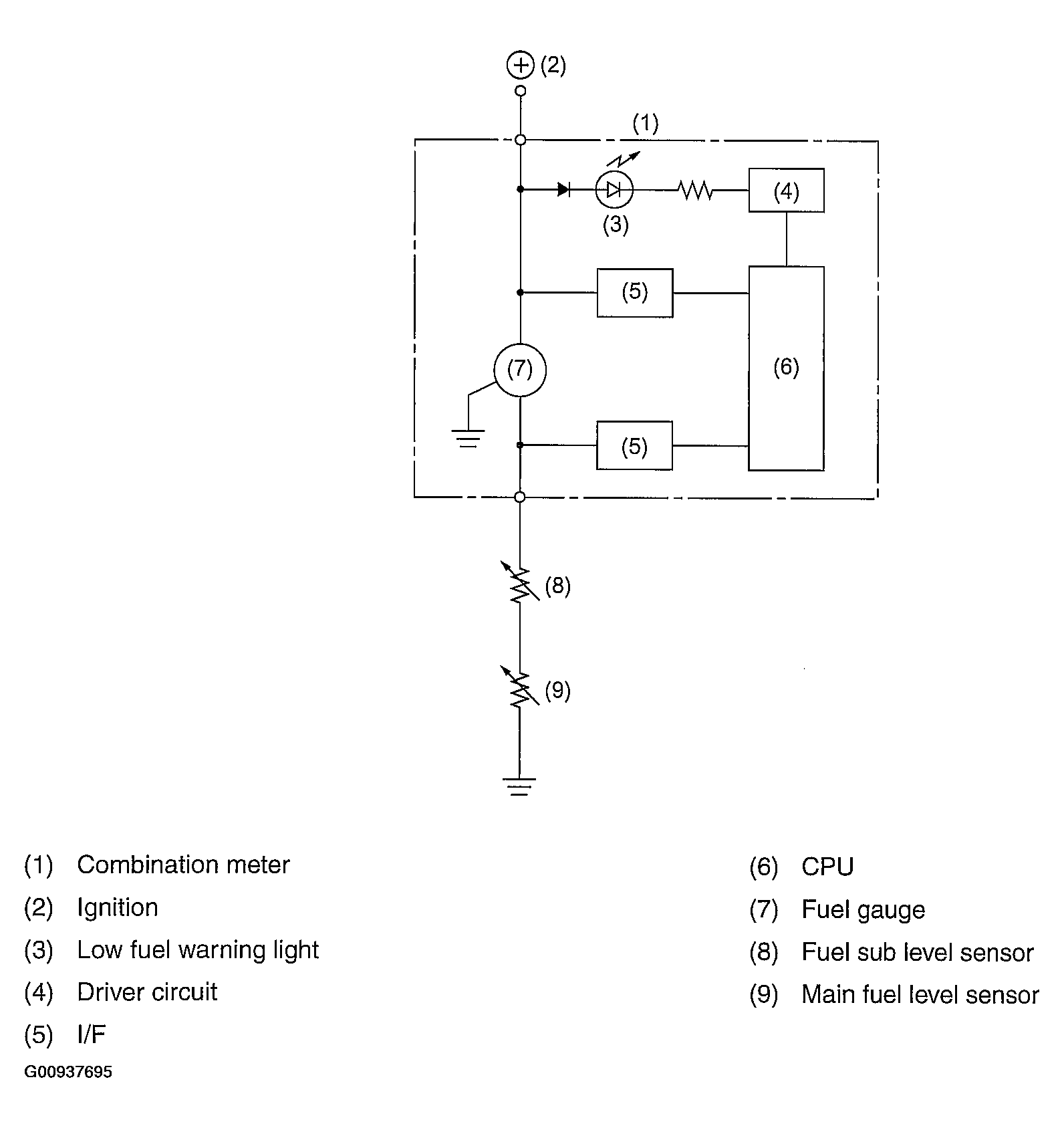

Home >> Subaru >> 2004 >> Forester XT, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Driver Info - Mechanism & Function >> Combination Meter >> Fuel Gauge >> Schematic Drawings
