Rear Disc Brake Assembly: Notes

NOTE: Before disassembling and reassembling rear disc brake assembly, identify the brakes components. See Fig 1 .

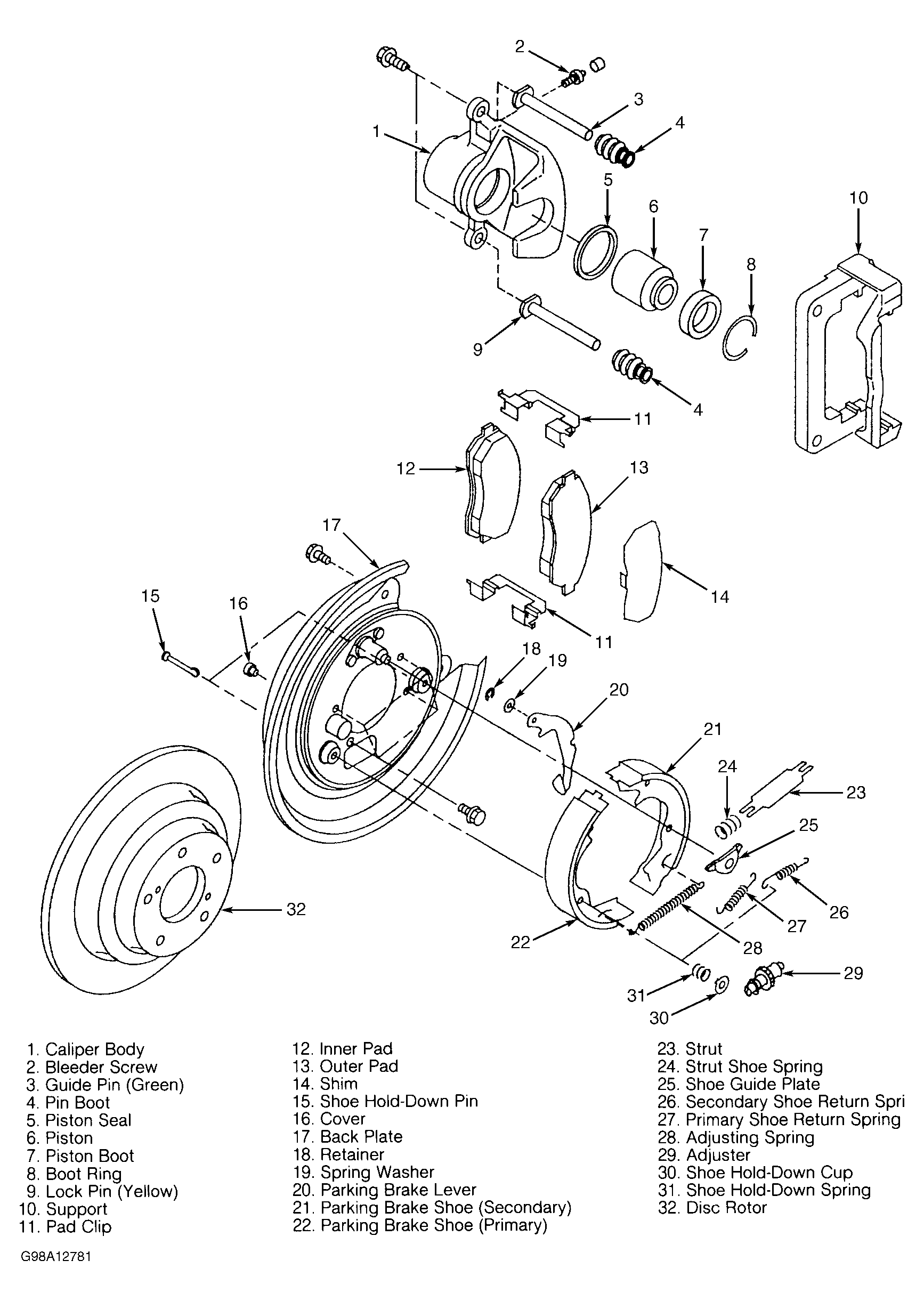

Fig 1: Identifying Rear Disc Brake Components
G98A12781Courtesy of SUBARU OF AMERICA, INC.
