Front Disc Brake Assembly: Notes

NOTE: Before disassembling and reassembling front disc brake assembly, identify the brakes components. See Fig 1 .

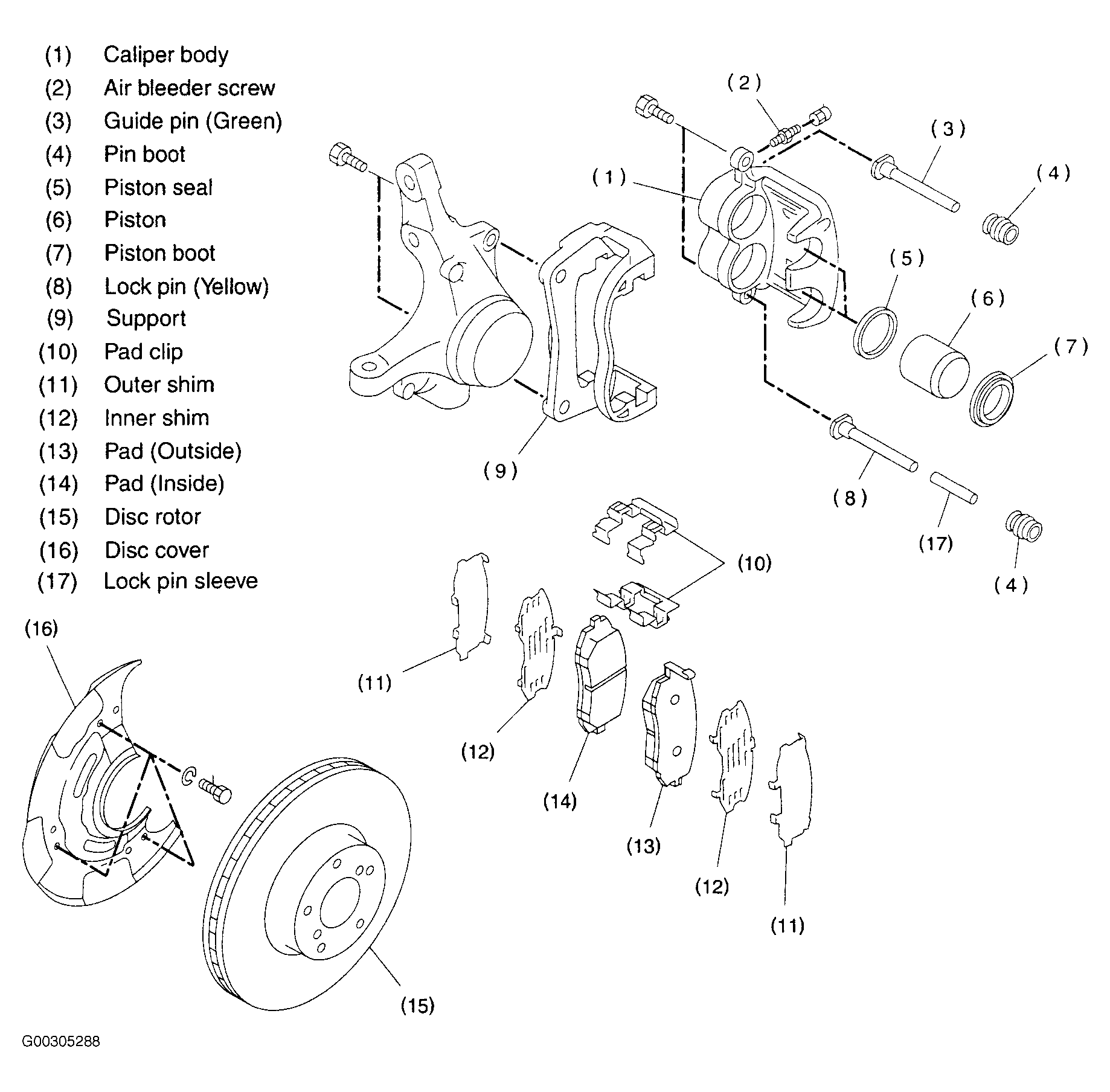

Fig 1: Identifying Front Disc Brake Components
G00305288Courtesy of SUBARU OF AMERICA, INC.
