Rear Quarter Trim: Removal: Wagon

  1. Remove side sill rear upper cover. Refer to REMOVAL , Lower Inner Trim.
  2. Remove luggage floor mat. Refer to REMOVAL , Luggage Floor Mat.
  3. Remove rear skirt trim (A).
  4. Remove rear quarter lower trim mounting volts, screws and clips, then remove the trim (B).
  5. Remove rear mole (C).
  6. Remove rear quarter upper trim mounting screw, then remove the trim (D).
  7. Remove rear rail trim (E).

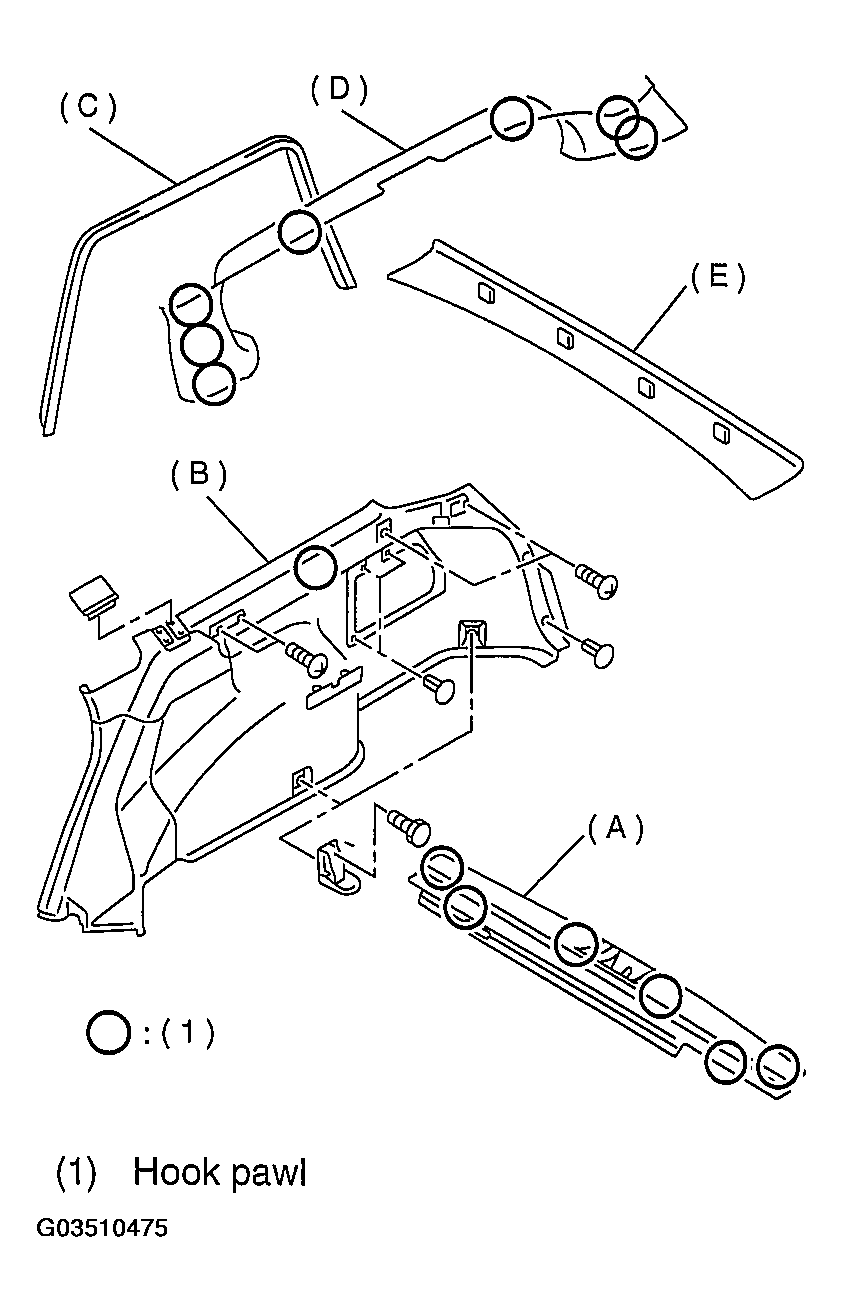

    Fig 1: Removing Rear Rail Trim
    G03510475Courtesy of SUBARU OF AMERICA, INC.
