Cargo Bed C Pillar Molding: Removal
- Remove cargo bed side tray. Refer to
REMOVAL , Cargo Bed Side Tray.
- Remove cargo bed side molding. Refer to
REMOVAL , Cargo Bed Side Molding.
- Remove clip and luggage pipe upper cover.
Courtesy of SUBARU OF AMERICA, INC.

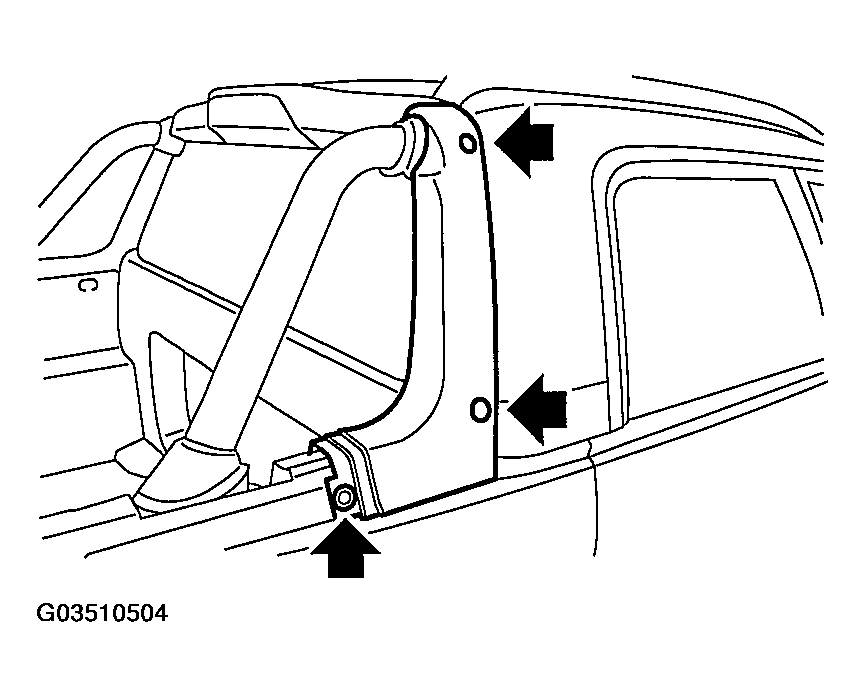

- Remove clip and cargo bed C pillar molding.
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Do not reuse the removed clips; use new ones.
