Rear Wiper Motor: Removal

  1. Disconnect ground cable from battery.
  2. Remove rear wiper arm.
  3. Remove cap (A), nut (B), and spacer (C) from rear wiper shaft.
    Fig 1: Removing Cap & Nut
    G03510213Courtesy of SUBARU OF AMERICA, INC.
  4. Remove rear gate lower trim. Refer to REMOVAL , Rear Gate Trim.
  5. Unclip clip of harness and disconnect connector of wiper motor.
  6. Remove bolts to remove wiper motor assembly (A).

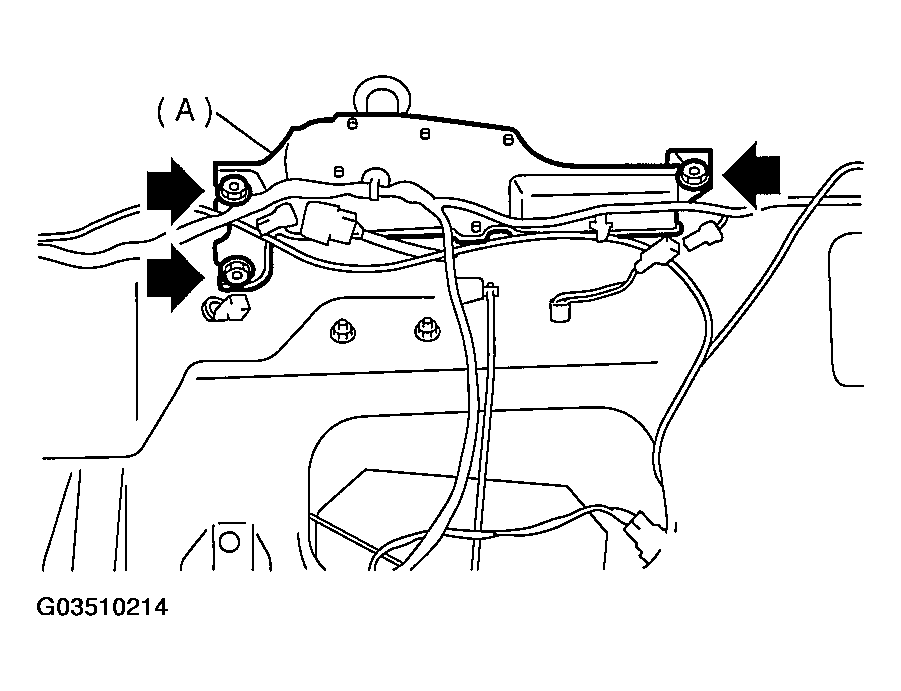

    Fig 2: Removing Bolts
    G03510214Courtesy of SUBARU OF AMERICA, INC.
