Vehicle Communication Unit VCU: Removal

  1. Disconnect the ground cable from battery.
  2. Remove meter visor. Refer to REMOVAL , Combination Meter Assembly.
  3. Remove audio body. Refer to REMOVAL , Radio.
  4. Remove VIU from the audio body.

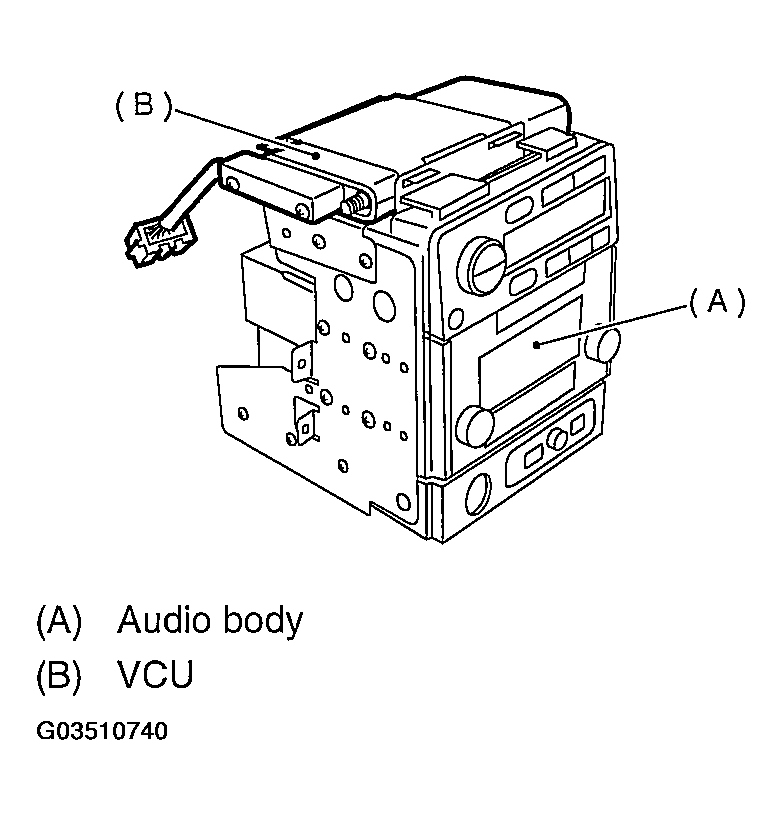

    Fig 1: Removing VIU From Audio Body
    G03510740Courtesy of SUBARU OF AMERICA, INC.
