Outline Of Diagnosis

Check if there is a leakage in fuel system or not, and perform the function diagnosis of valve.

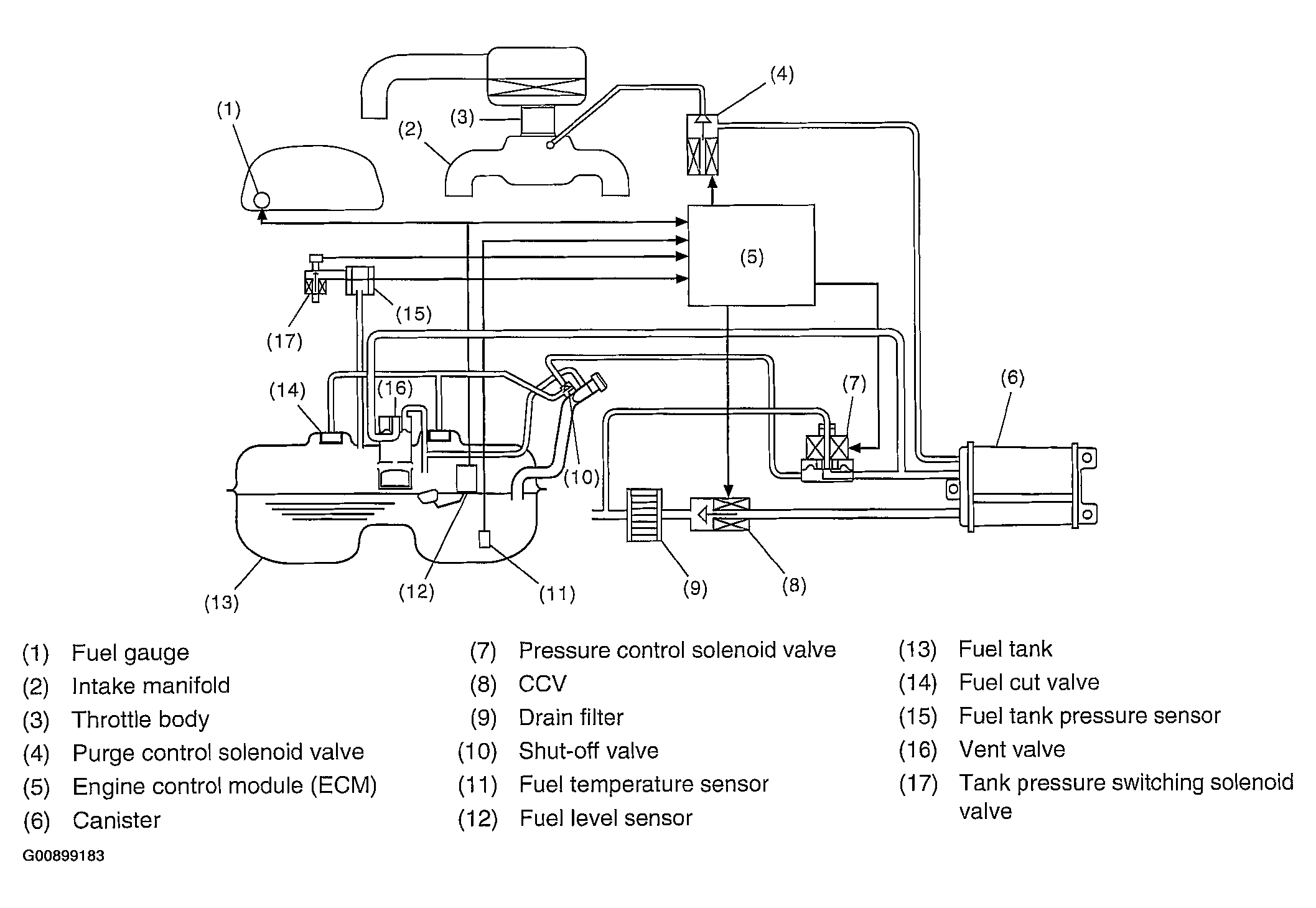

Fig 1: Identifying Fuel System Component

Courtesy of SUBARU OF AMERICA, INC.

In this system diagnosis, checking for leakage and valve function is conducted by changing the fuel tank pressure, and monitoring the pressure change using the fuel tank pressure sensor. 0.04 inch diagnosis is performed in the order of mode Z, mode A, mode B, mode C, mode D and mode E, and 0.02 inch diagnosis is performed in the order of mode Y, mode A, mode B, mode C, mode D and mode E.

• 0.04-Inch Diagnosis

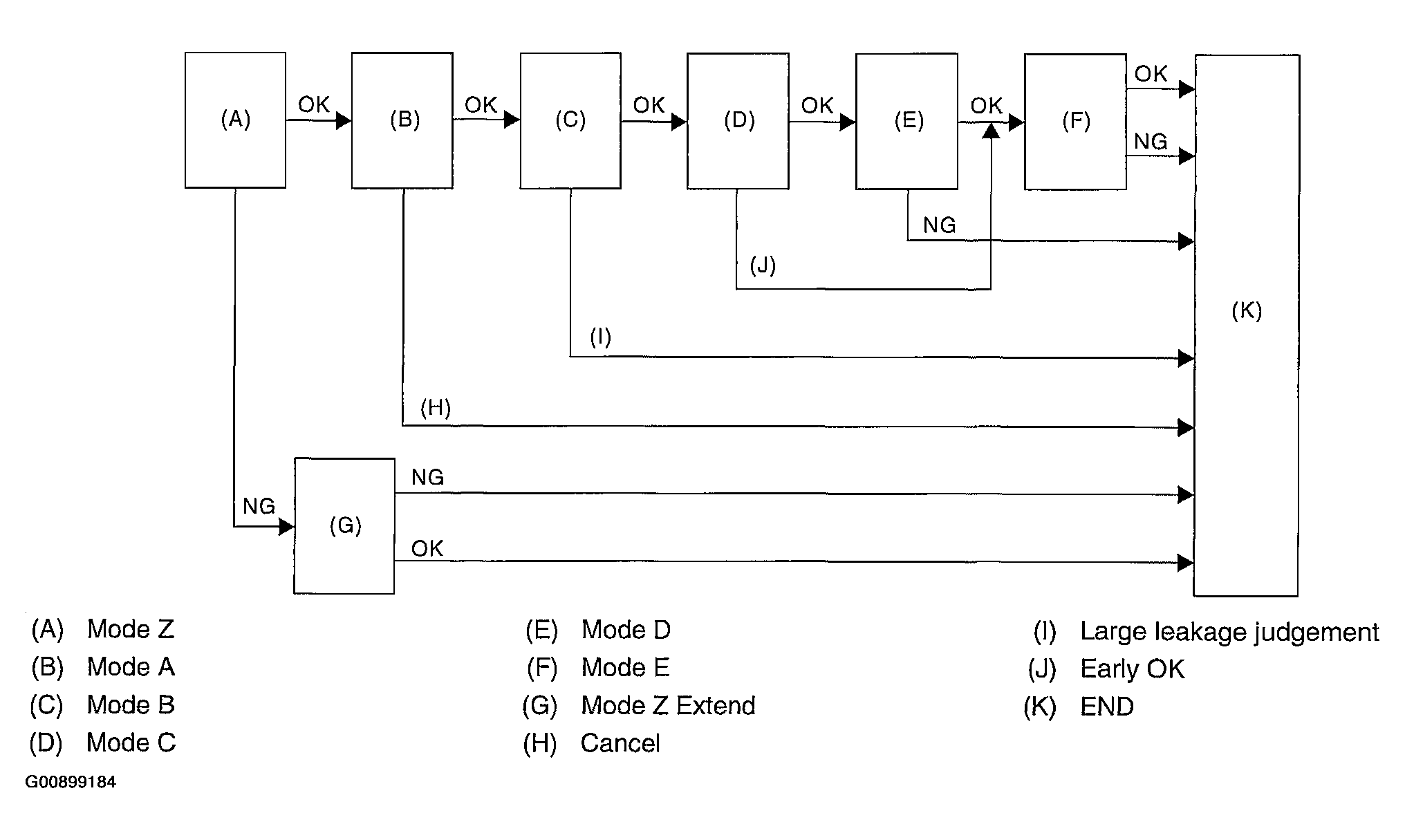

  Fig 2: Identifying Inch Diagnosis Circuit Diagram

  Courtesy of SUBARU OF AMERICA, INC.

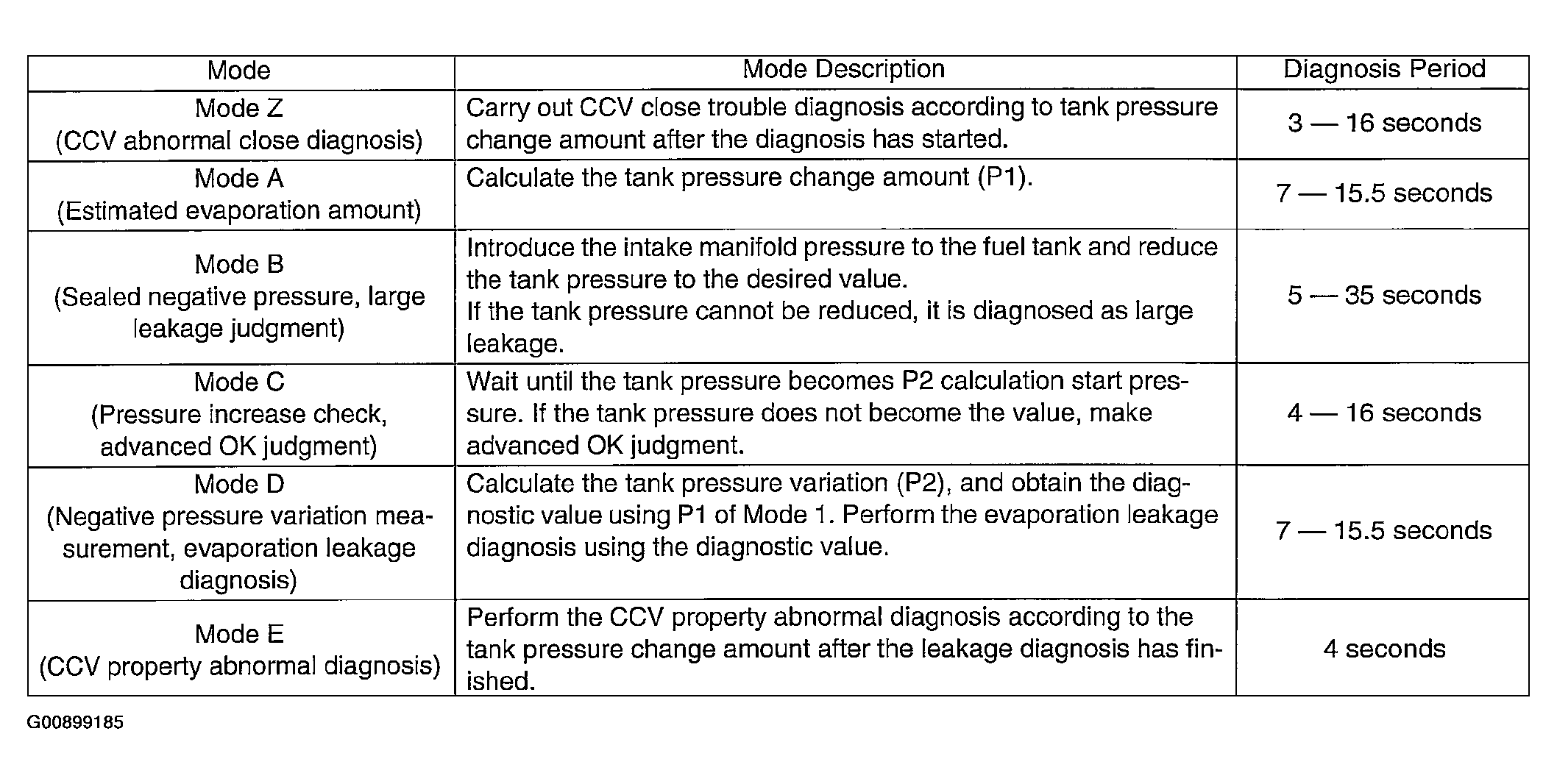

  Fig 3: Description Period Table

  Courtesy of SUBARU OF AMERICA, INC.
• 0.02-inch Diagnosis

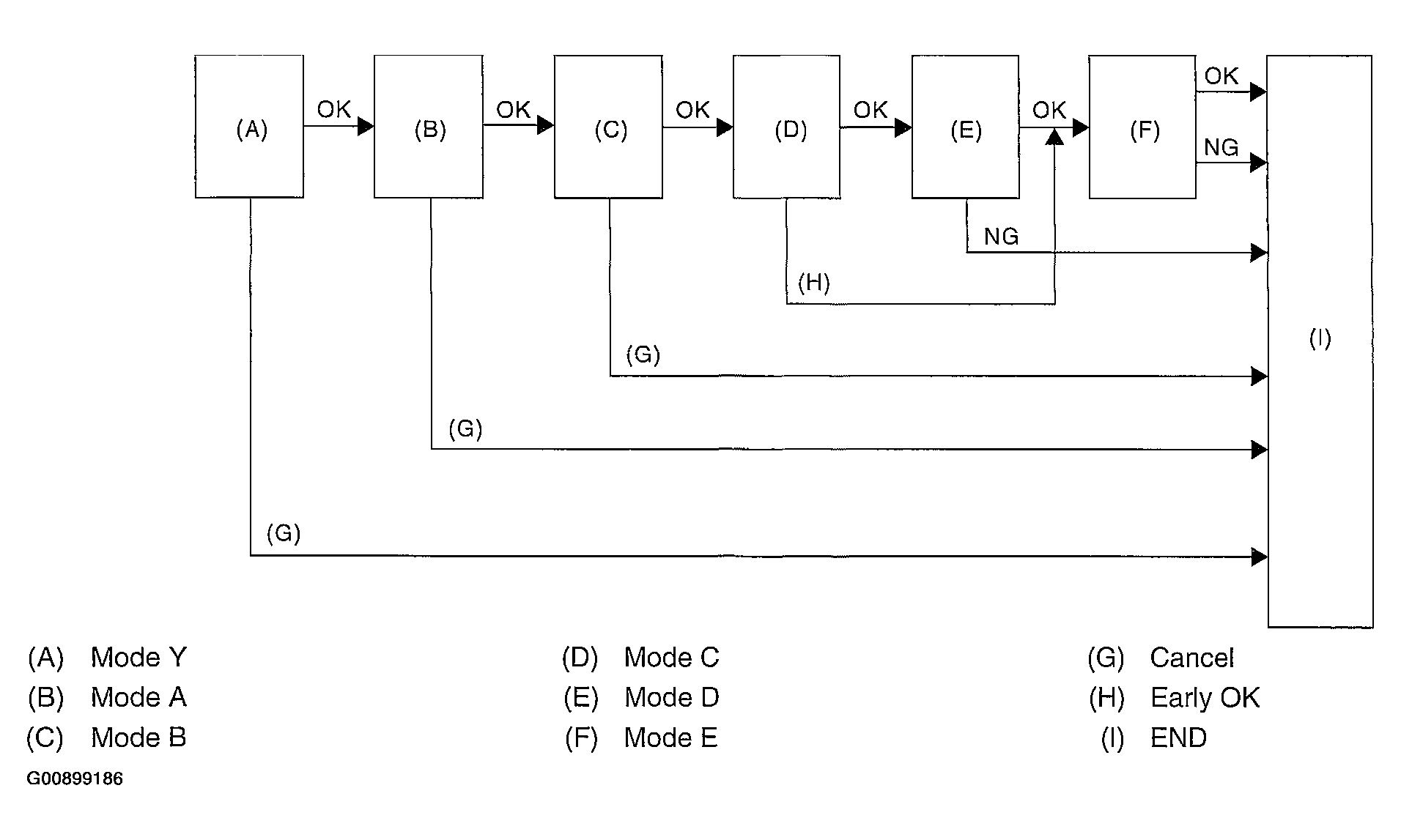

  Fig 4: Identifying Inch Diagnosis Circuit Diagram

  Courtesy of SUBARU OF AMERICA, INC.

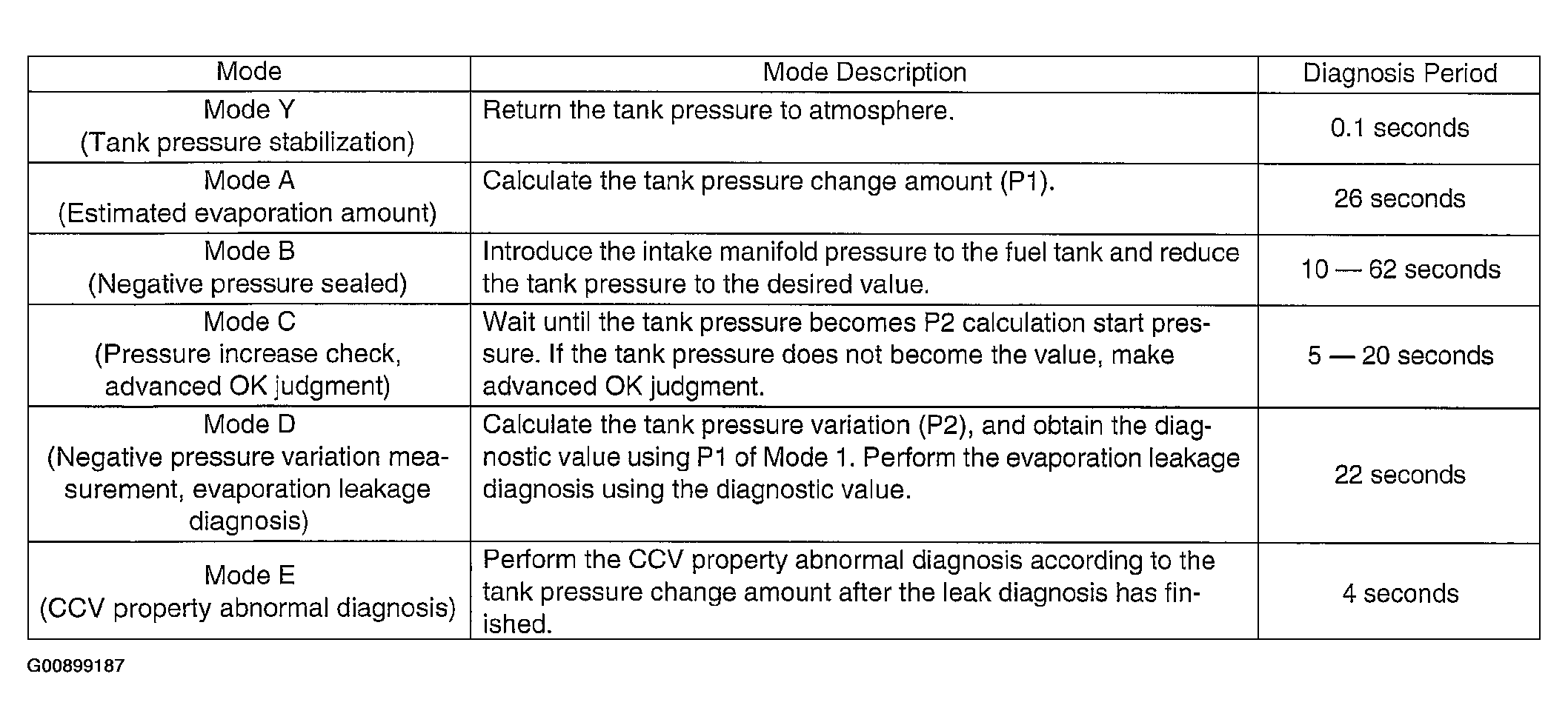

  Fig 5: Description Period Table

  Courtesy of SUBARU OF AMERICA, INC.
• Mode Table for Evaporative Emission Control System Diagnosis
• 0.04-inch Diagnosis

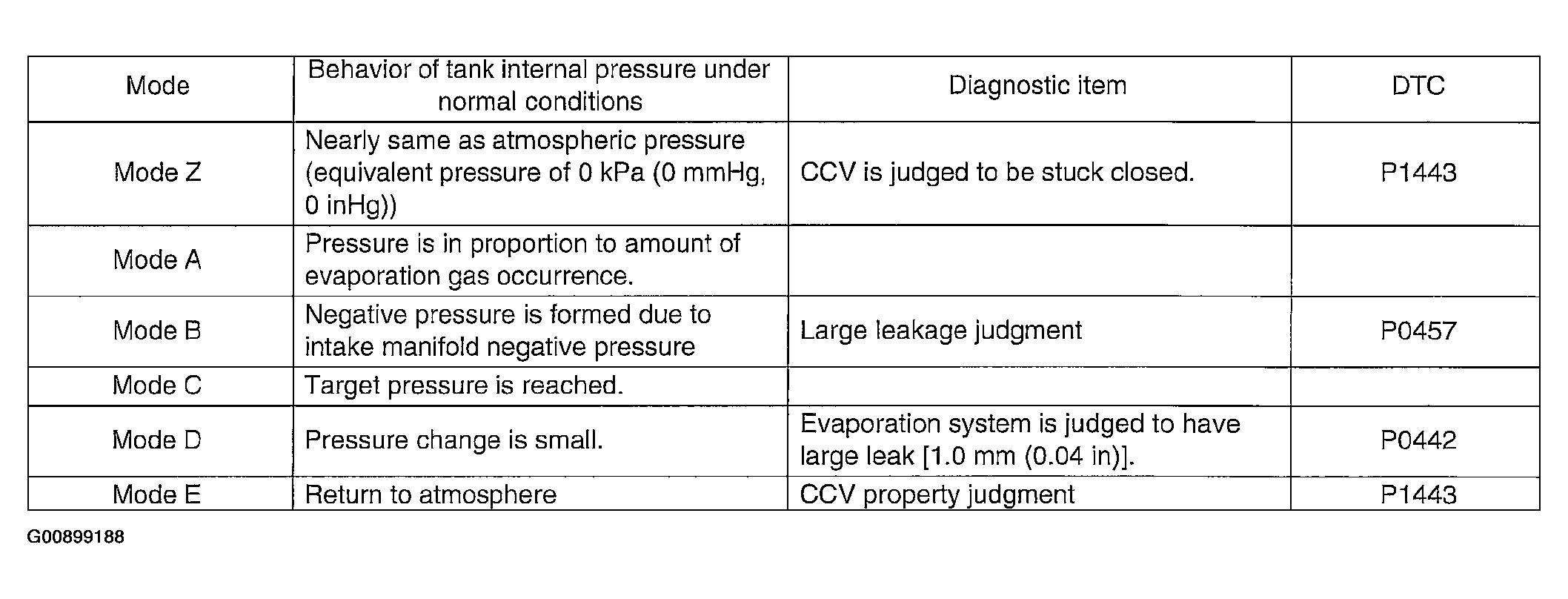

  Fig 6: Mode Table (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.
• 0.02-inch Diagnosis

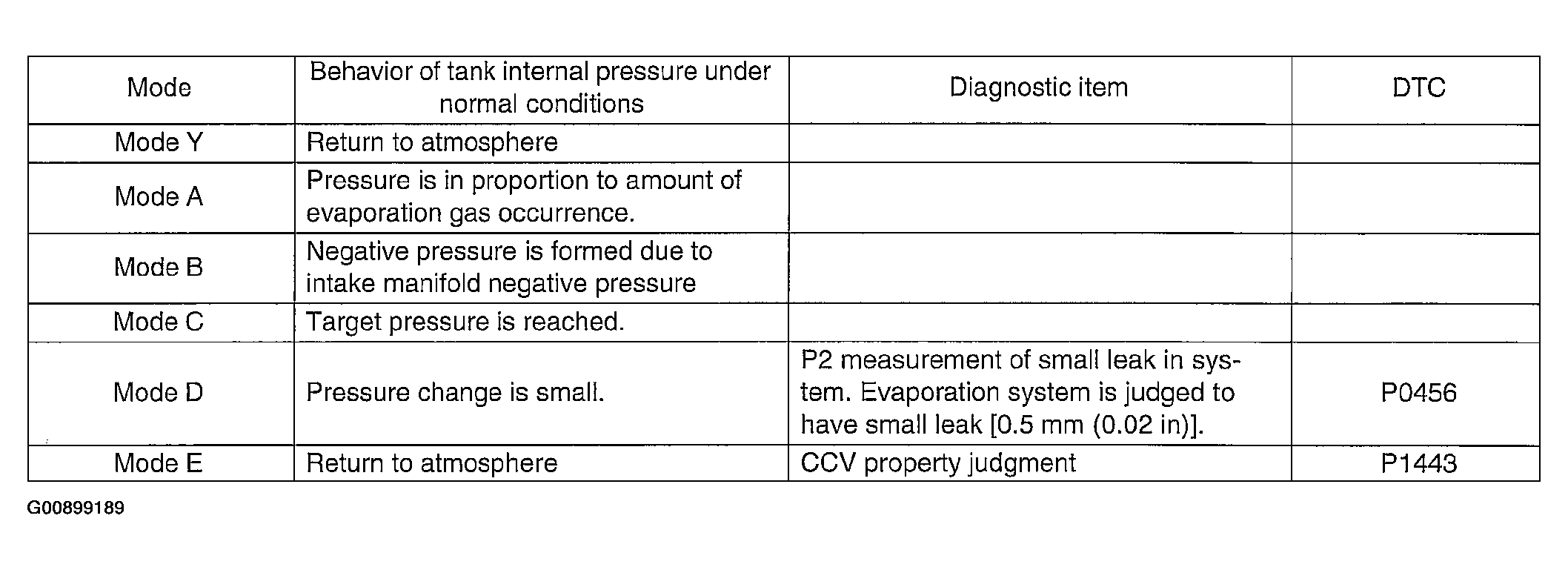

  Fig 7: Mode Table (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.
