Enable Condition

0.04-inch Diagnosis

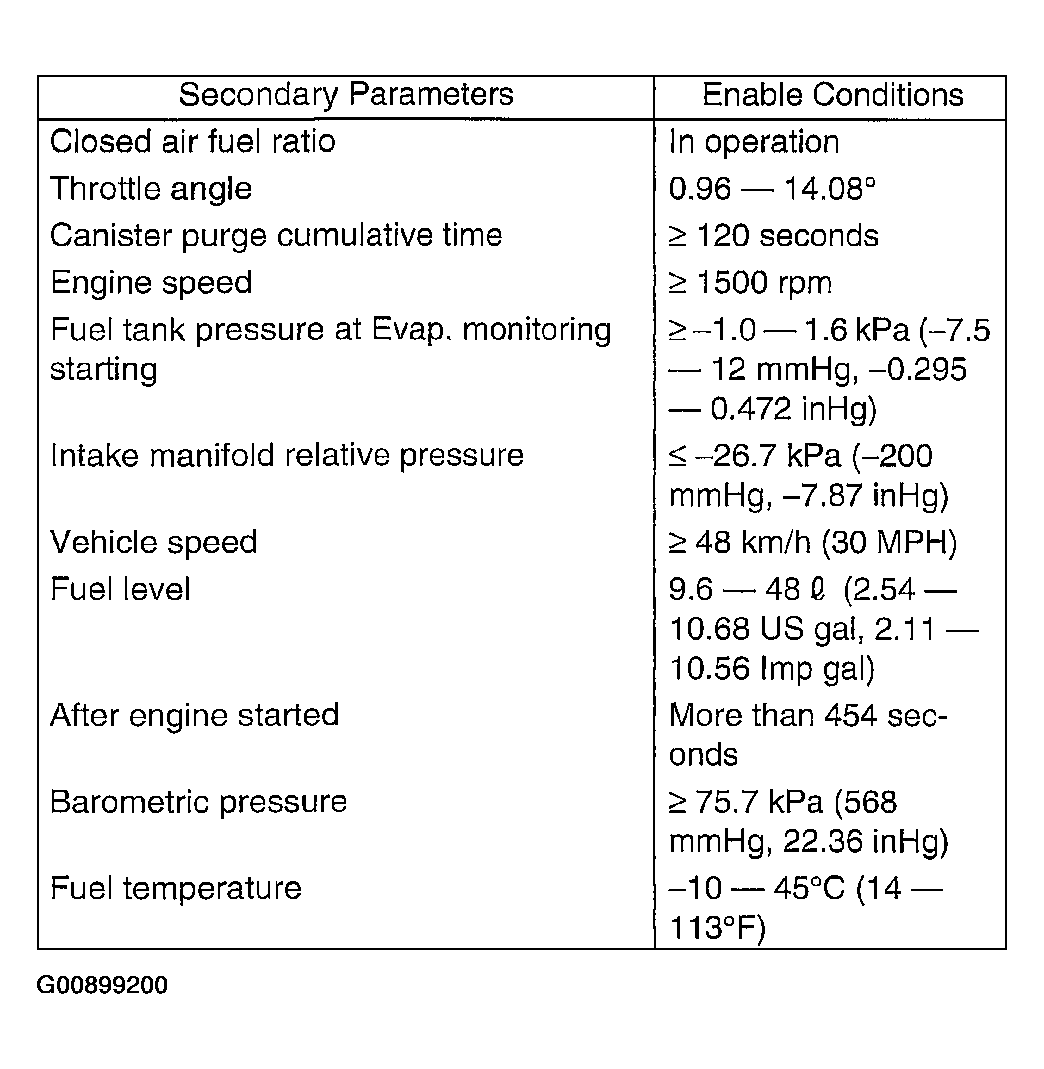

Fig 1: Enable Condition Table (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Cancel Conditions

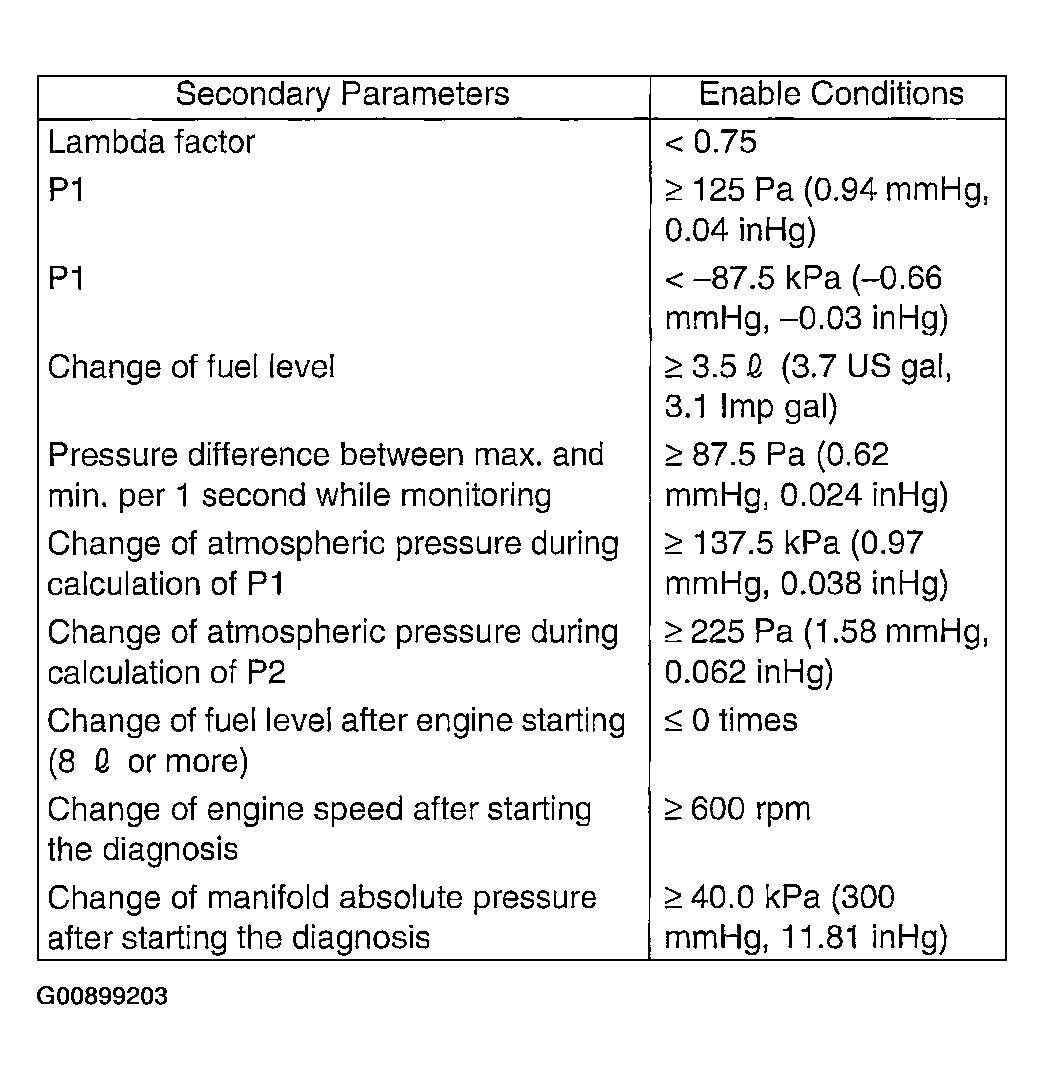

Fig 2: Enable Condition Table (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
0.02-inch Diagnosis

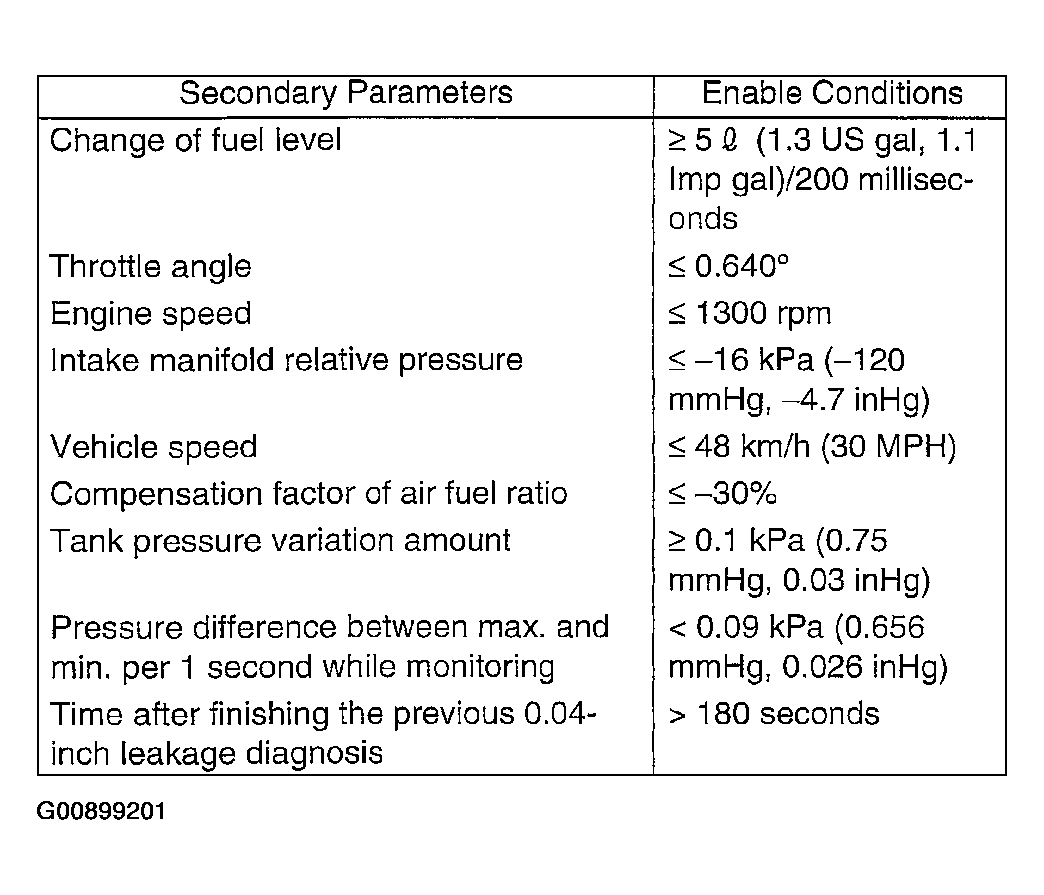

Fig 3: Enable Condition Table (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Cancel Conditions

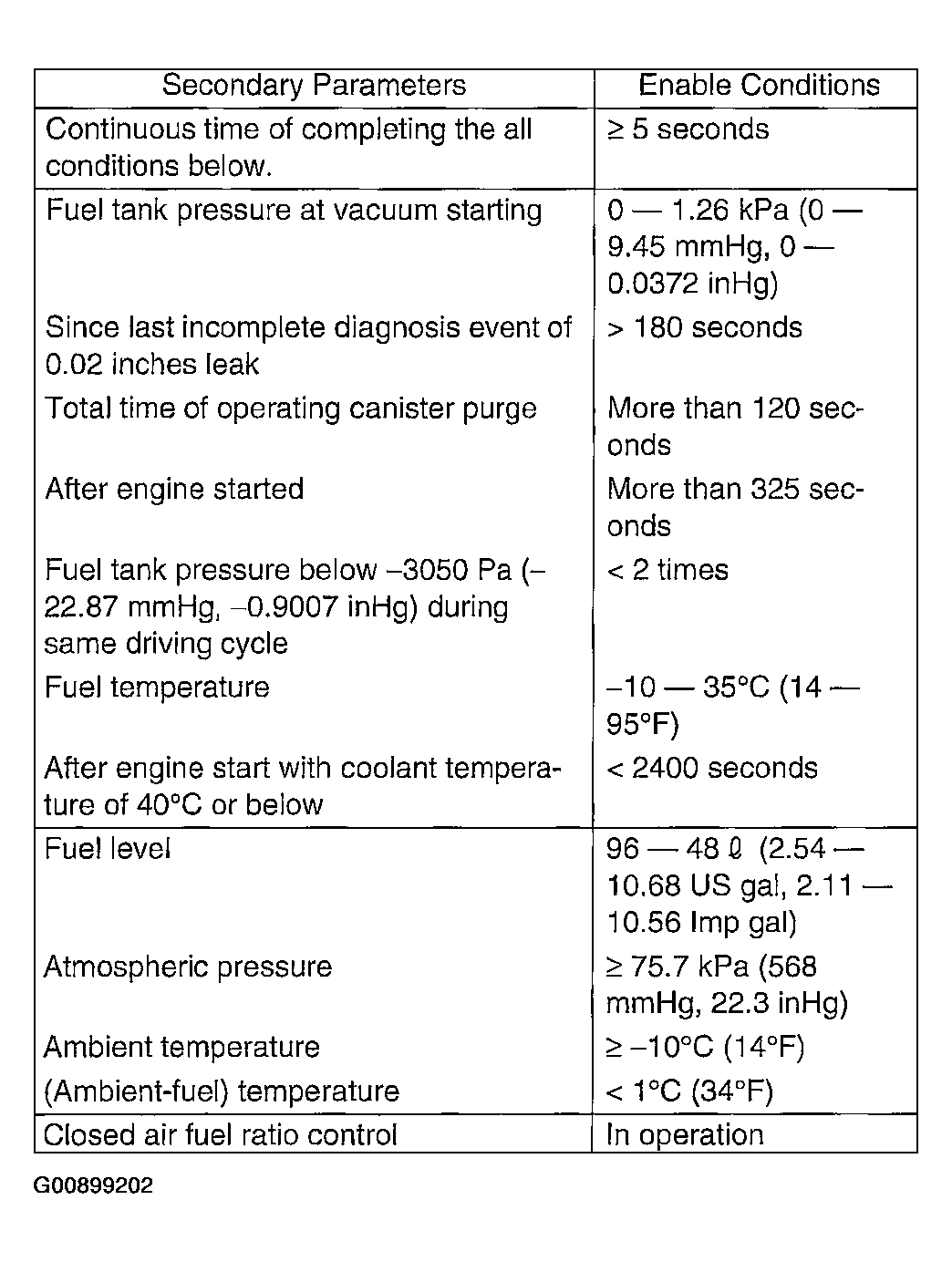

Fig 4: Enable Condition Table (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
