Enable Condition

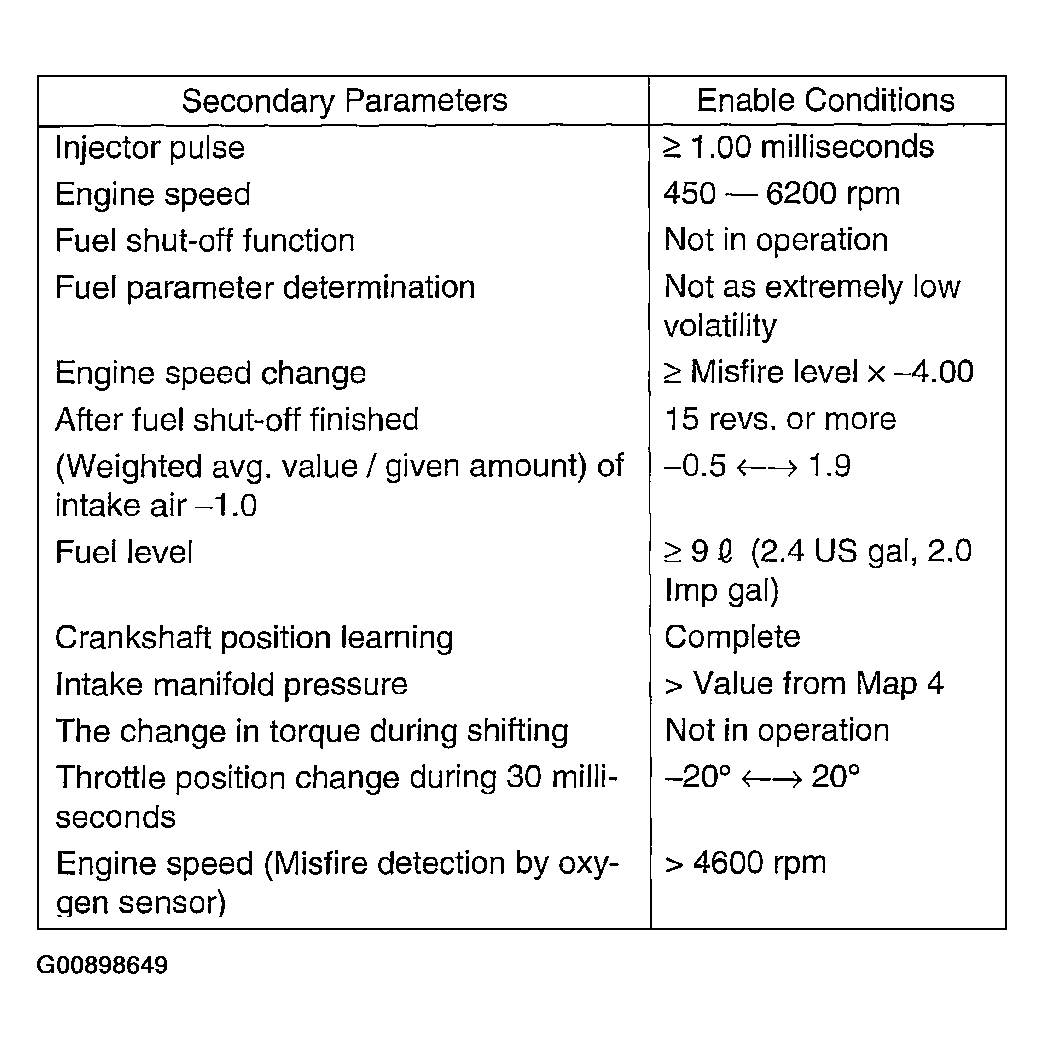

Fig 1: Enable Condition Table

G00898649

Courtesy of SUBARU OF AMERICA, INC.

Map 4

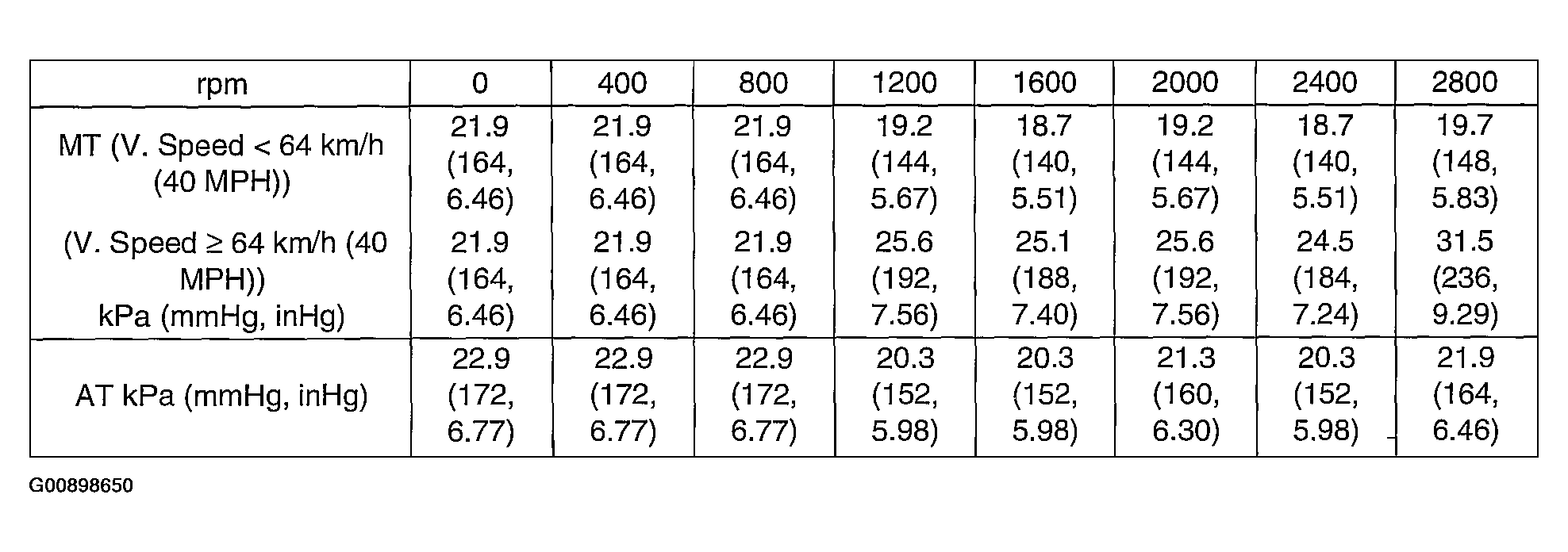

Fig 2: RPM Table (1 Of 2)

G00898650

Courtesy of SUBARU OF AMERICA, INC.

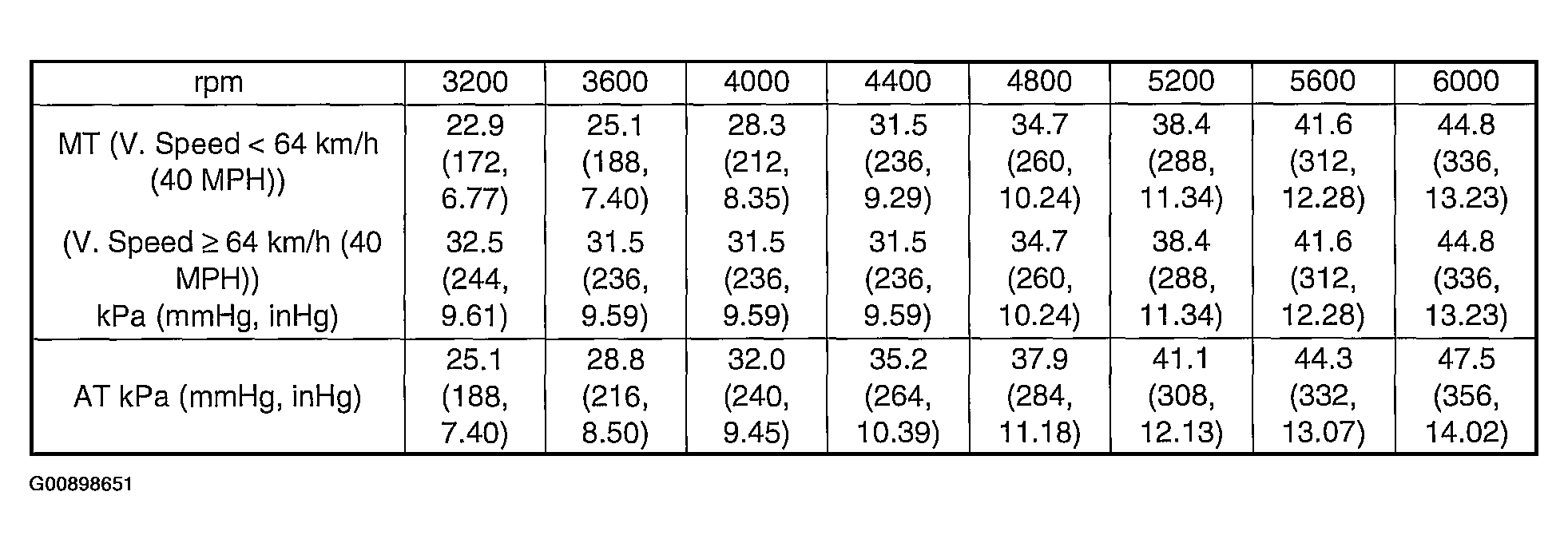

Fig 3: RPM Table (2 Of 2)

G00898651

Courtesy of SUBARU OF AMERICA, INC.
