Outline Of Diagnosis

Detect the slow response of rear oxygen sensor.

Calculate the response time of the output change of the rear oxygen sensor when the A/F ratio changes from rich to lean. And carry out the diagnosis comparing the calculated response time with the threshold value.

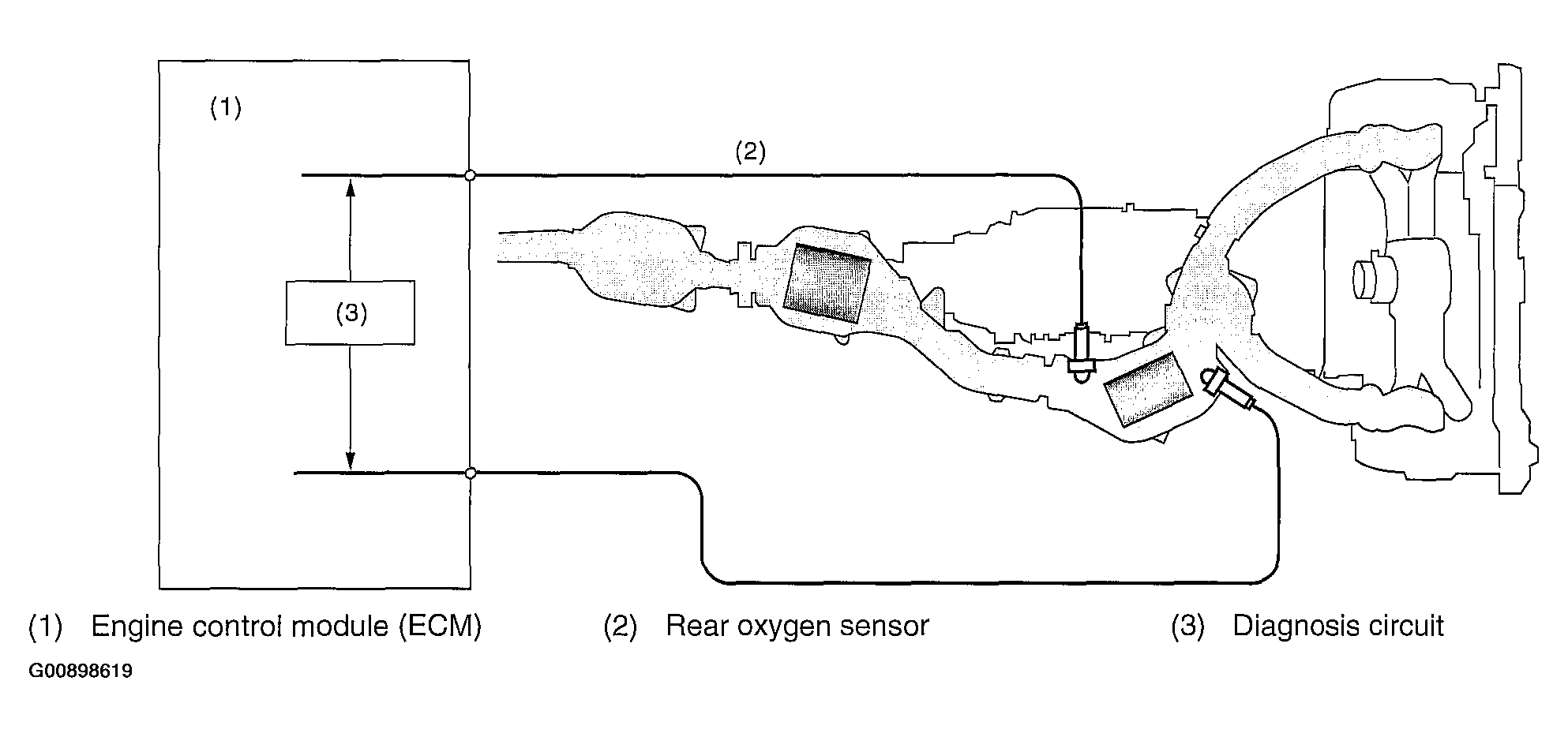

Fig 1: Identifying Rear Oxygen Sensor
G00898619Courtesy of SUBARU OF AMERICA, INC.
