Details of Judgment (Always 1000 milliseconds when the actual opening angle to target opening angle)

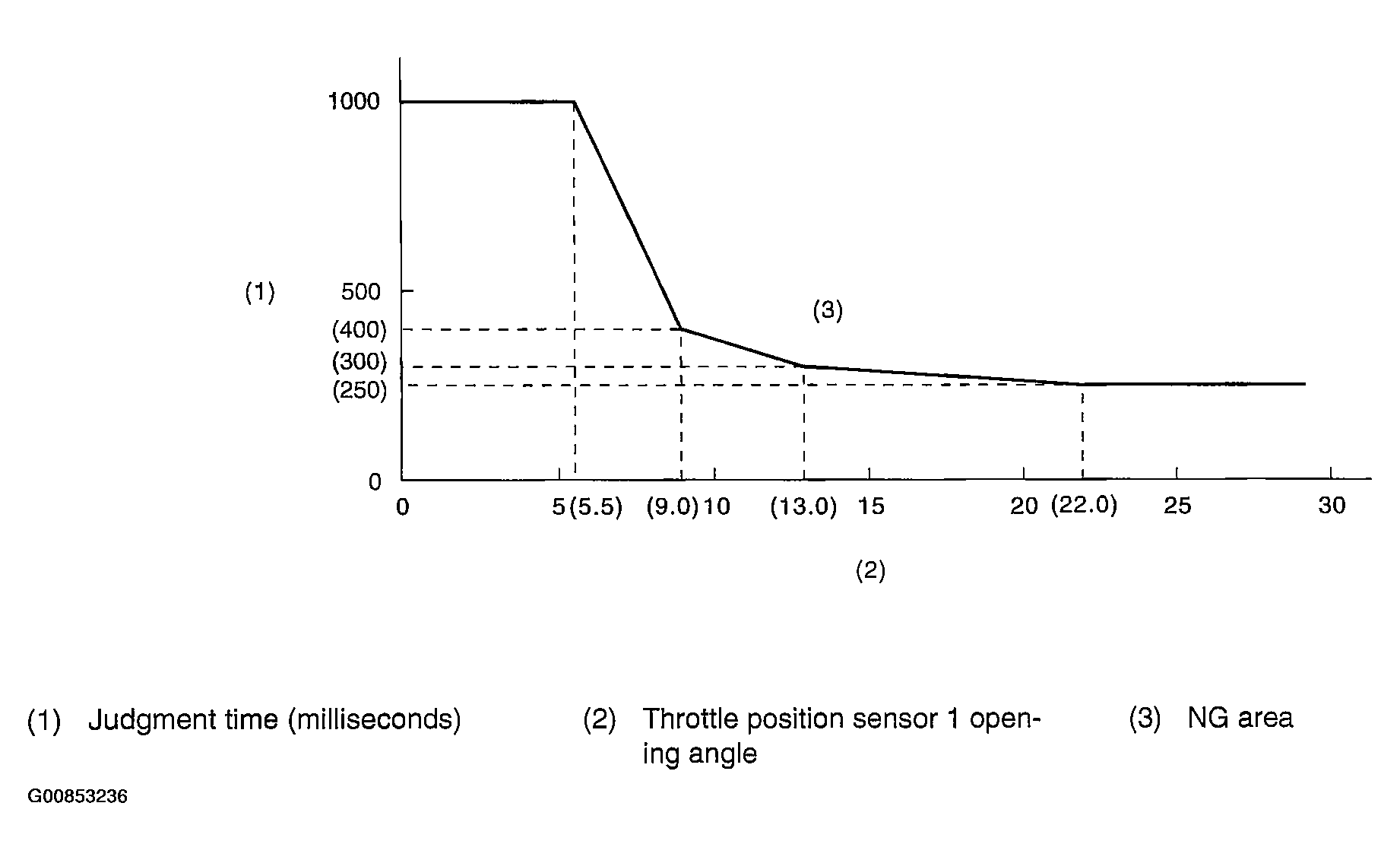

Fig 1: Actual Opening Angle Graph
G00853236Courtesy of SUBARU OF AMERICA, INC.

Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.
