Fuel Injection (Fuel Systems) (H4SO U5 (PZEV))
>>
General Description
>>
Component
>>
Crankshaft Position, Camshaft Position And Knock Sensors
Crankshaft Position, Camshaft Position And Knock Sensors

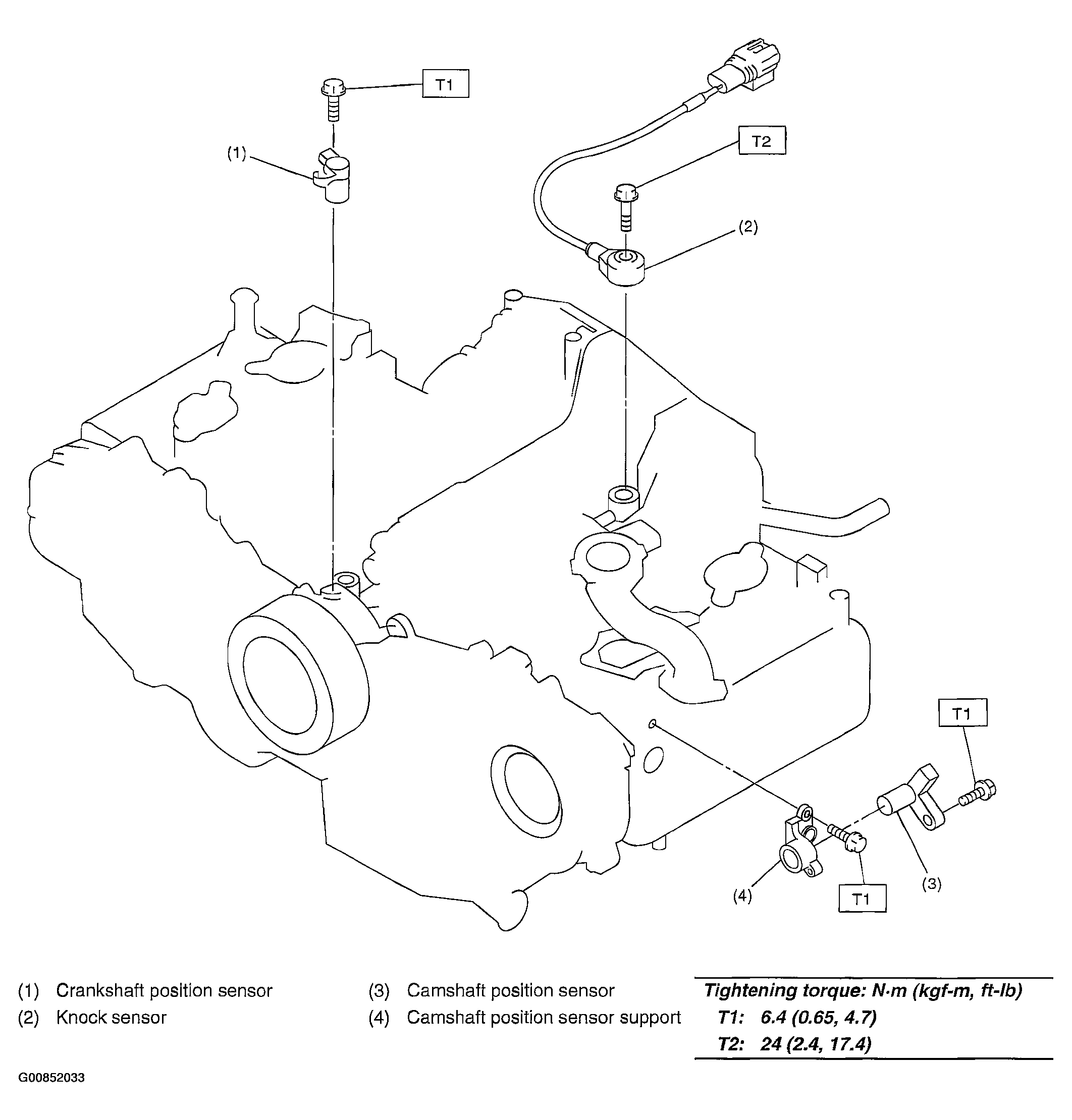

Fig 1: Crankshaft Position, Camshaft Position & Knock Sensors Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
