Belt Idler And Automatic Belt Tension Adjuster Assembly

  1. Remove belt idler (No. 1).

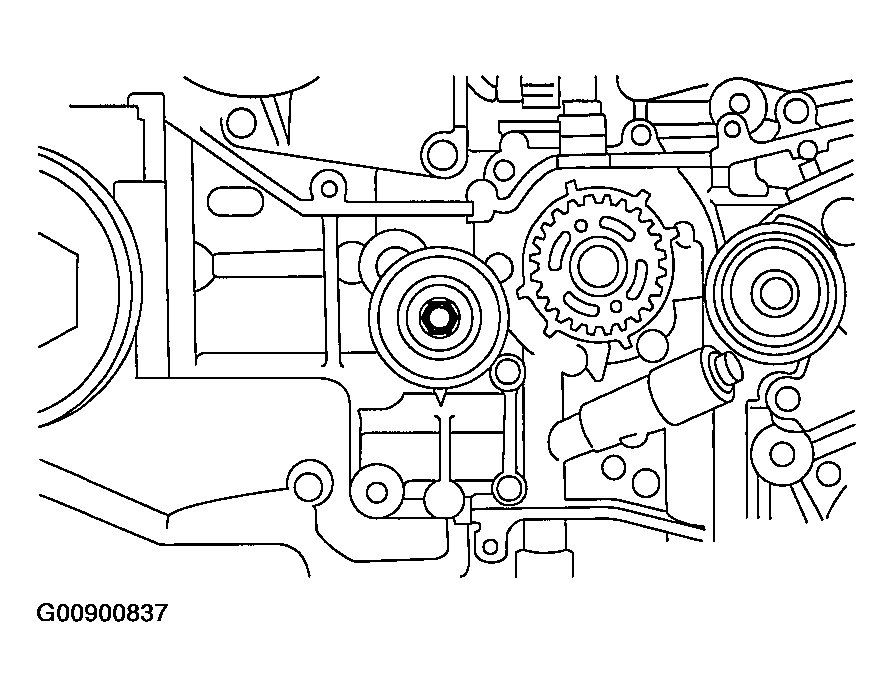

    Fig 1: Removing Belt Idler (No. 1)
    G00900837Courtesy of SUBARU OF AMERICA, INC.
  2. Remove automatic belt tension adjuster assembly.

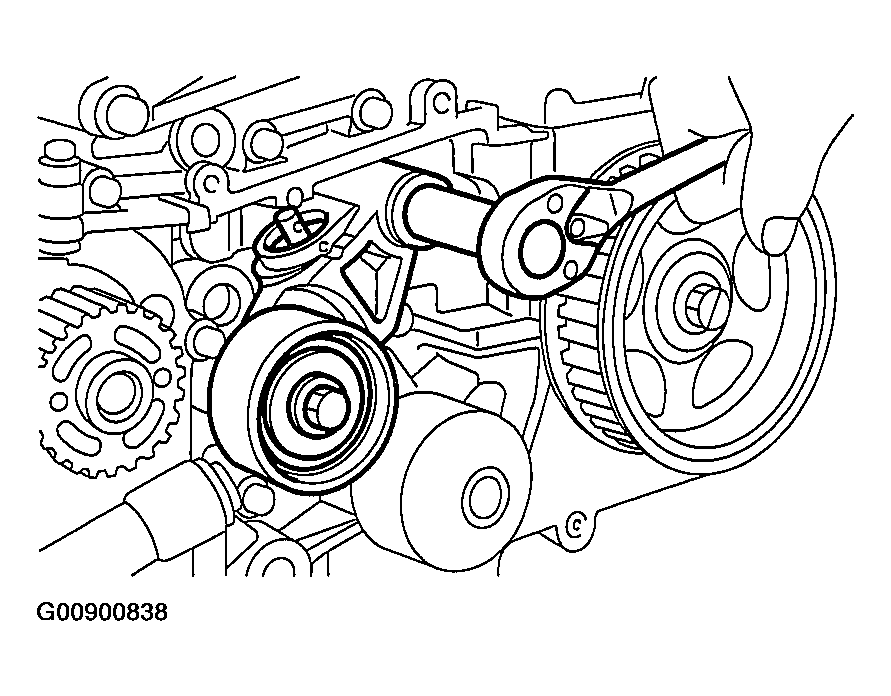

    Fig 2: Removing Automatic Belt Tension Adjuster Assembly
    G00900838Courtesy of SUBARU OF AMERICA, INC.
