Air Intake Chamber: Removal

  1. Loosen clamp (A) which connects air intake chamber and throttle body.
  2. Loosen clamp (B) which connects air intake boot and air intake chamber.
  3. Remove bolt (C) which secures air intake chamber to stay.

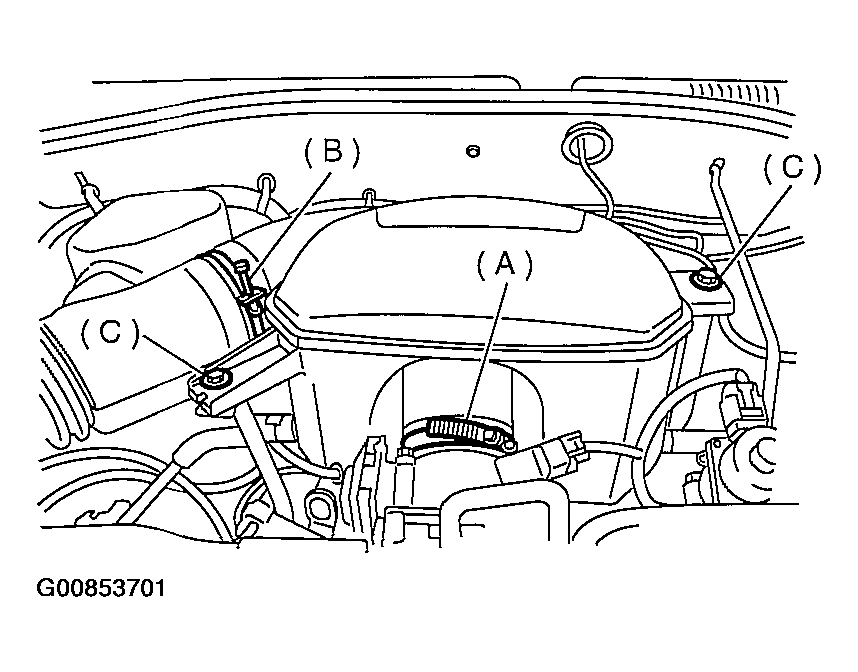

    Fig 1: Removing Air Intake Chamber To Stay
    G00853701Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect blow-by hoses (2 places) and then, remove air intake chamber.
