Air Cleaner Case: Removal

  1. Remove air intake duct. Refer to AIR INTAKE DUCT .
  2. Remove air cleaner element. Refer to AIR CLEANER ELEMENT .
  3. Remove bolt which installs air cleaner case to body.

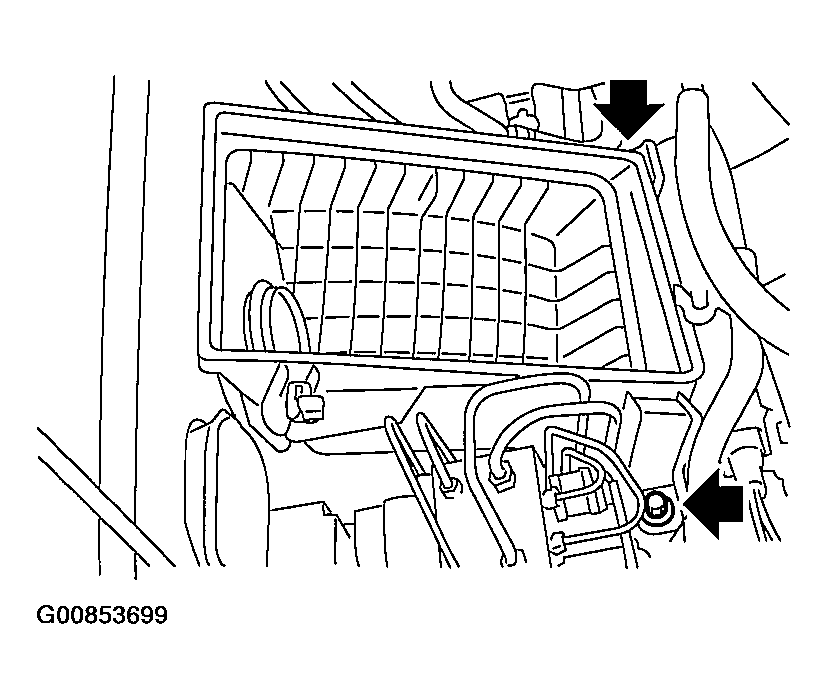

    Fig 1: Removing Air Intake Duct
    G00853699Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air cleaner case.
