Rear Side Belt

  1. Loosen the lock nut (A).
  2. Loosen the slider bolt (B).

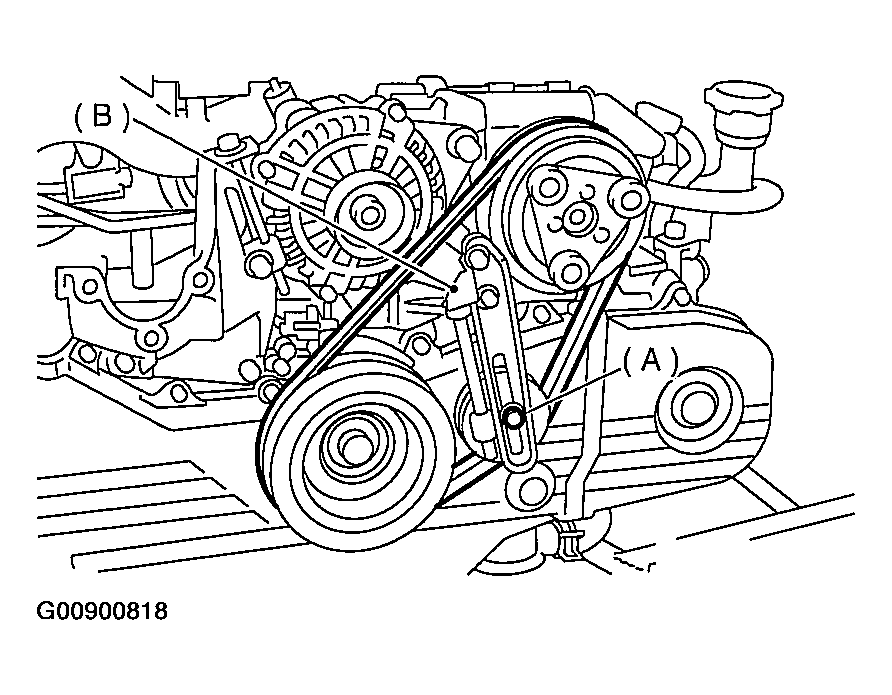

    Fig 1: Loosening Slider Bolt
    G00900818Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the A/C belt.
  4. Remove the A/C belt tensioner.

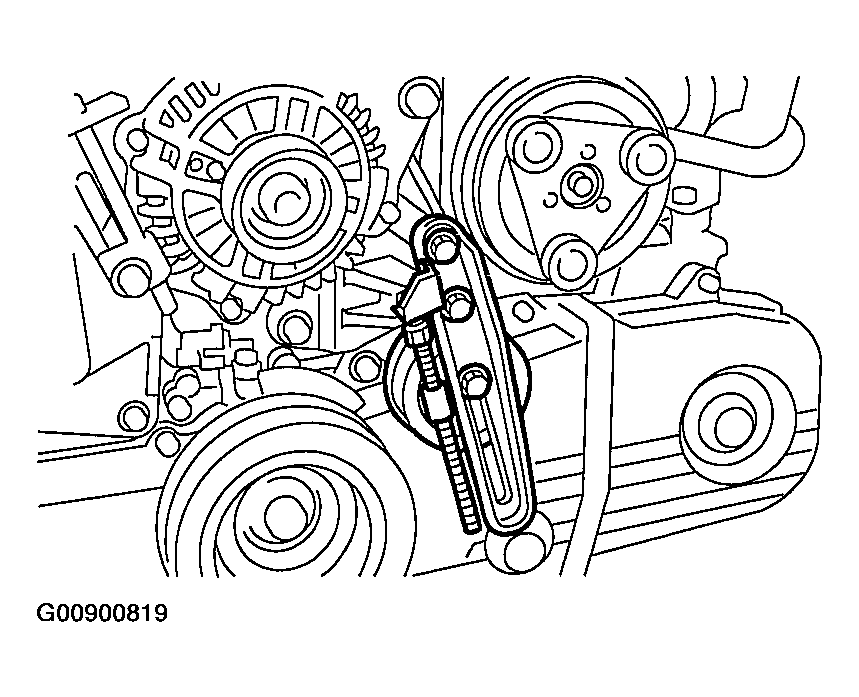

    Fig 2: Removing A/C Belt Tensioner
    G00900819Courtesy of SUBARU OF AMERICA, INC.
