Rear Exhaust Pipe: Removal

  1. Separate rear exhaust pipe from front exhaust pipe.
    CAUTION: Be careful, exhaust pipe is hot.

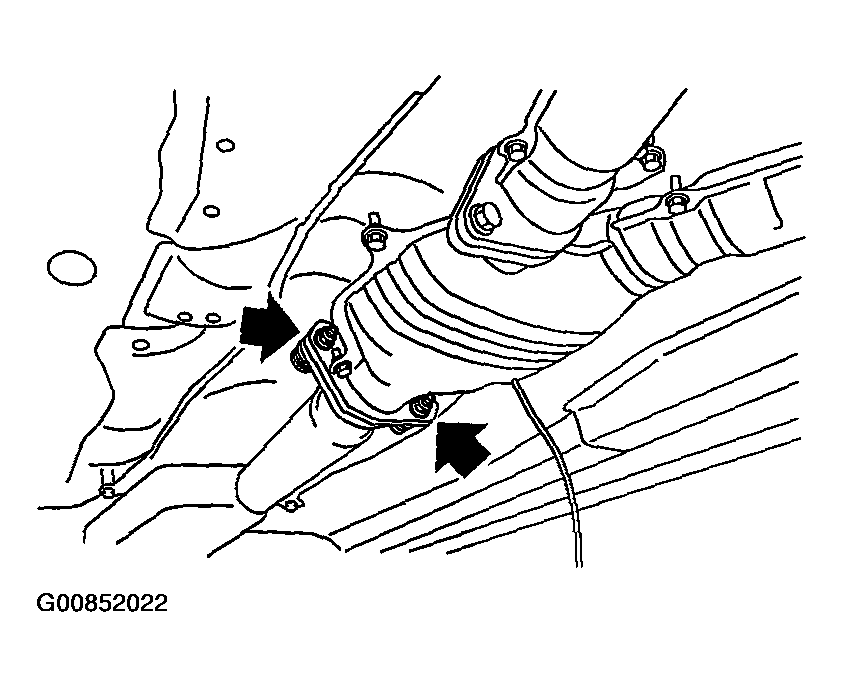

    Fig 1: Removing Rear Exhaust Pipe From Front Exhaust Pipe
    G00852022Courtesy of SUBARU OF AMERICA, INC.
  2. Separate rear exhaust pipe from muffler.
    CAUTION: Be careful not to pull down rear exhaust pipe.

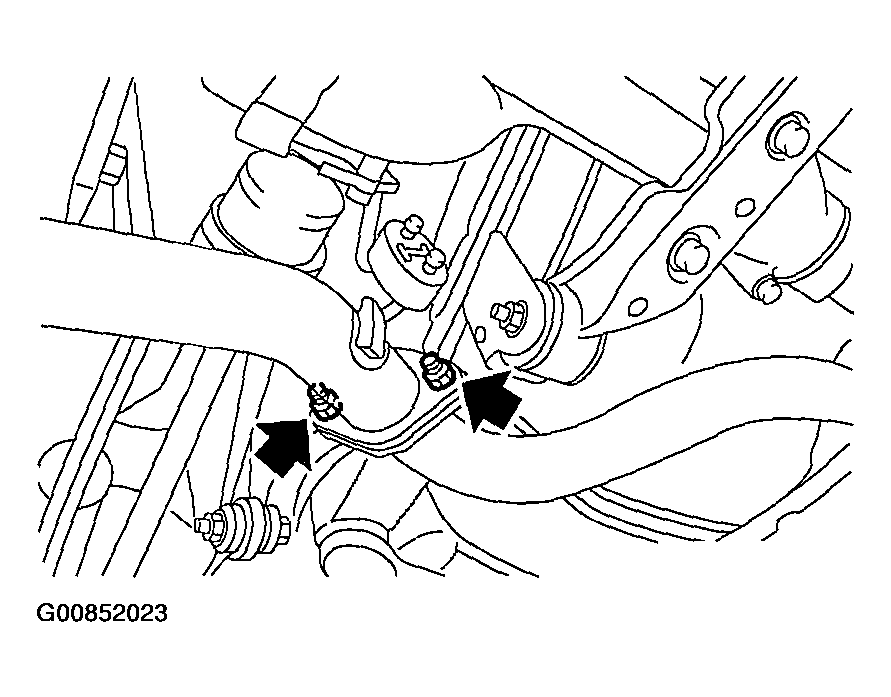

    Fig 2: Removing Rear Exhaust Pipe From Muffler
    G00852023Courtesy of SUBARU OF AMERICA, INC.
  3. Remove rear exhaust pipe.
