Rear Exhaust Pipe: Installation

NOTE: Replace gaskets and self-lock nut with new ones.

Install rear exhaust pipe to muffler.
Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

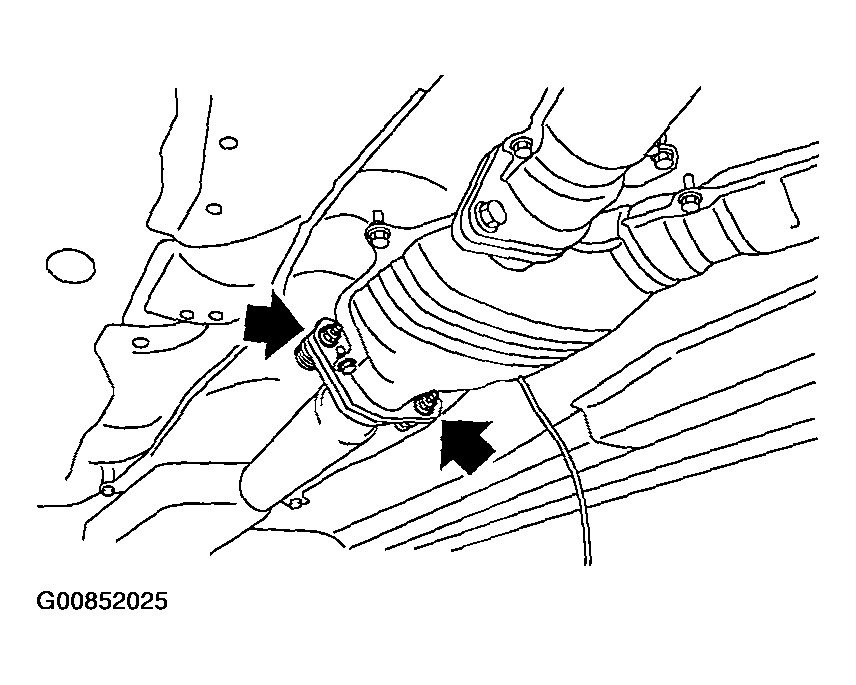

Fig 1: Installing Rear Exhaust Pipe To Muffler
Courtesy of SUBARU OF AMERICA, INC.
Install rear exhaust pipe to front exhaust pipe.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

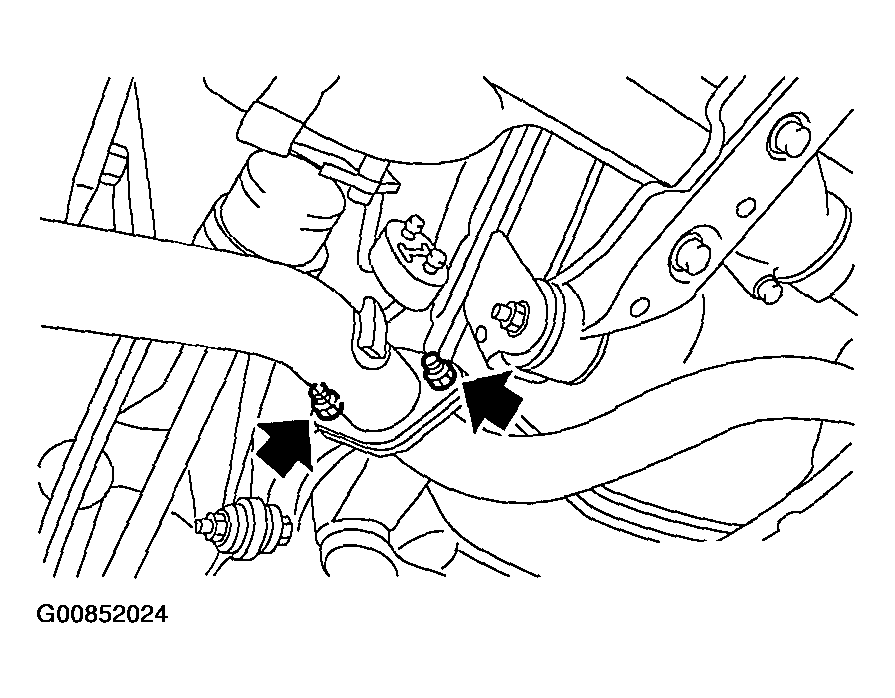

Fig 2: Installing Rear Exhaust Pipe To Front Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
