Exhaust (H4SO U5 (PZEV)): Muffler: Removal

Separate muffler from rear exhaust pipe.
CAUTION: Be careful, exhaust pipe is hot.

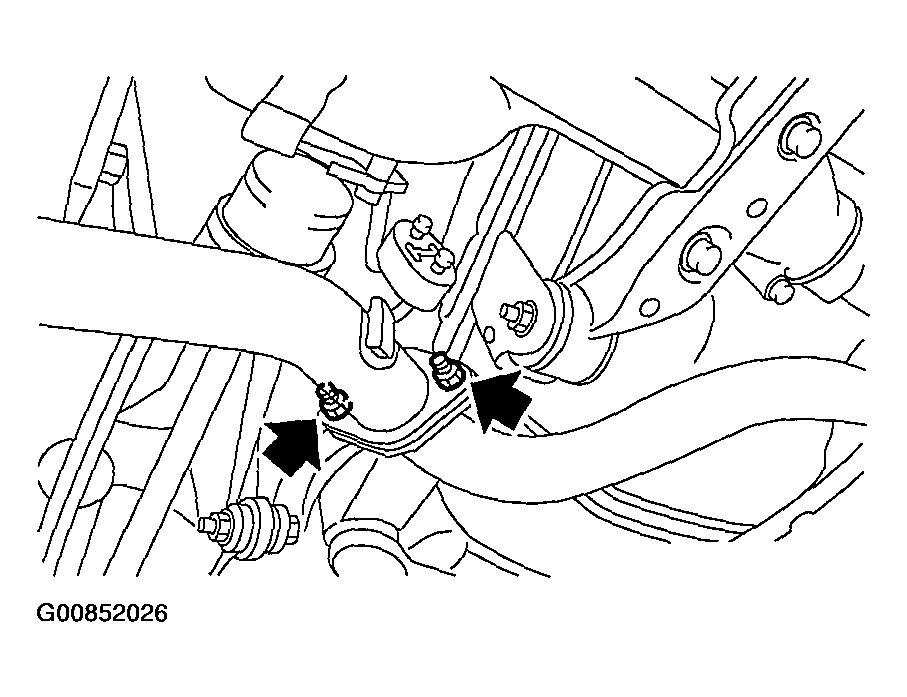

Fig 1: Removing Muffler From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove left and right rubber cushions.
CAUTION: Be careful not to drop the muffler during removal.

NOTE: To facilitate removal, apply a coat of SUBARU CRC to mating area of rubber cushions in advance.

SUBARU CRC (Part No. 004301003)

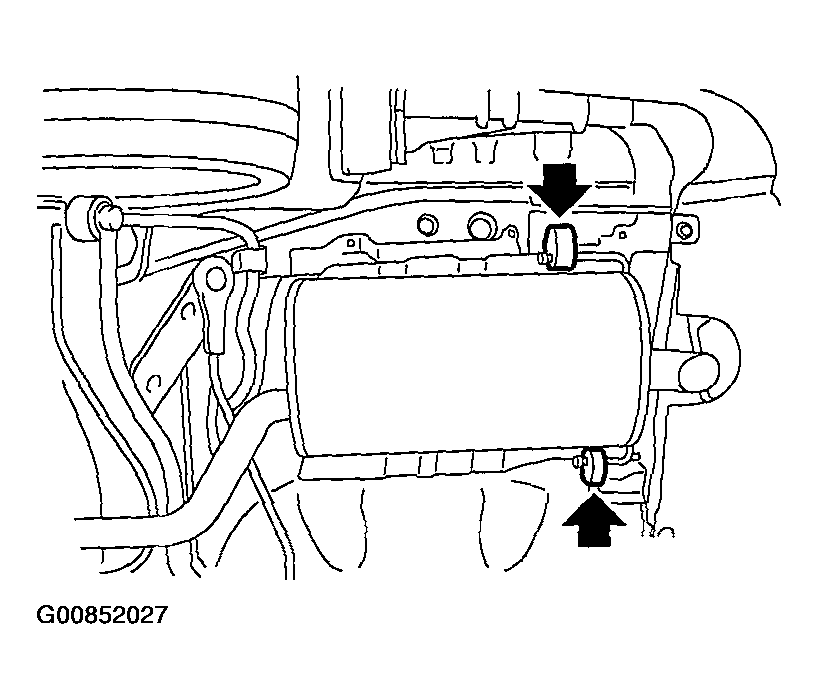

Fig 2: Removing Left & Right Rubber Cushions
Courtesy of SUBARU OF AMERICA, INC.
Remove front rubber cushion, and detach muffler assembly.
NOTE: To facilitate removal, apply a coat of SUBARU CRC to mating area of rubber cushion in advance.

SUBARU CRC (Part No. 004301003)

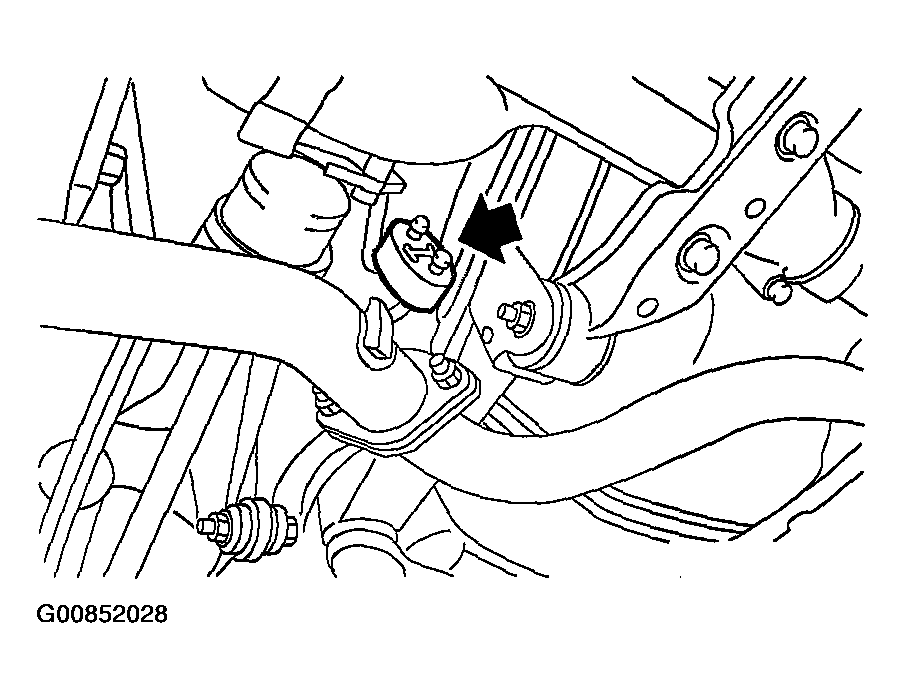

Fig 3: Removing Front Rubber Cushion & Detach Muffler Assembly
Courtesy of SUBARU OF AMERICA, INC.
