Front Exhaust Pipe: Removal

Disconnect ground cable from battery.
Disconnect front oxygen (A/F) sensor connector.
- LH side

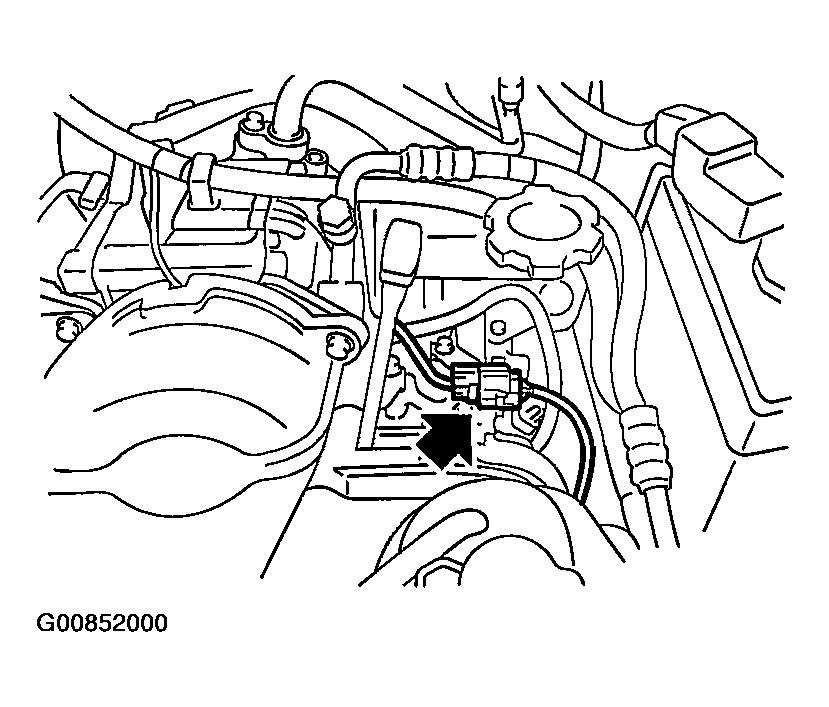

  Fig 1: Disconnecting Front Oxygen (A/F) Sensor Connector
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

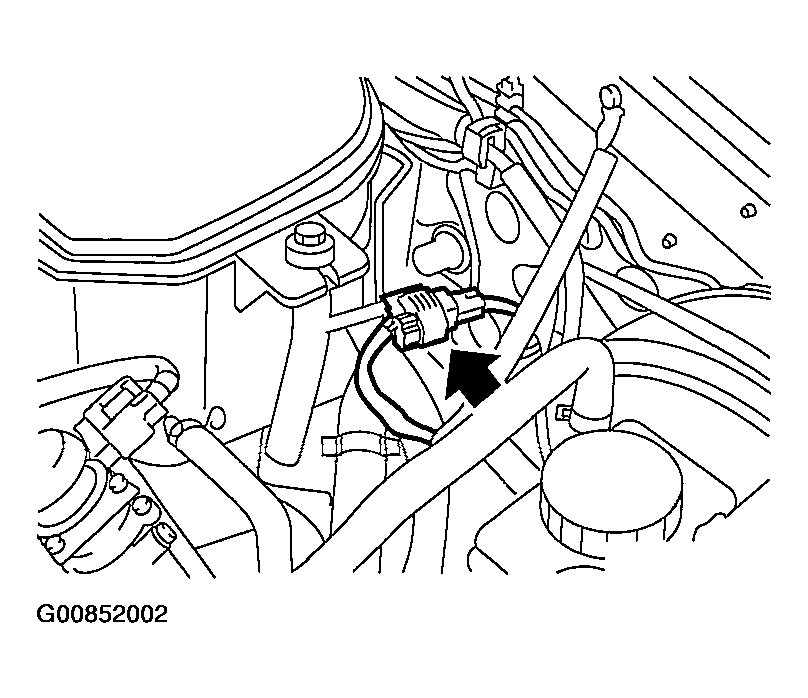

Fig 2: Disconnecting Front Oxygen (A/F) Sensor Connector (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect front oxygen sensor connector.
- LH side

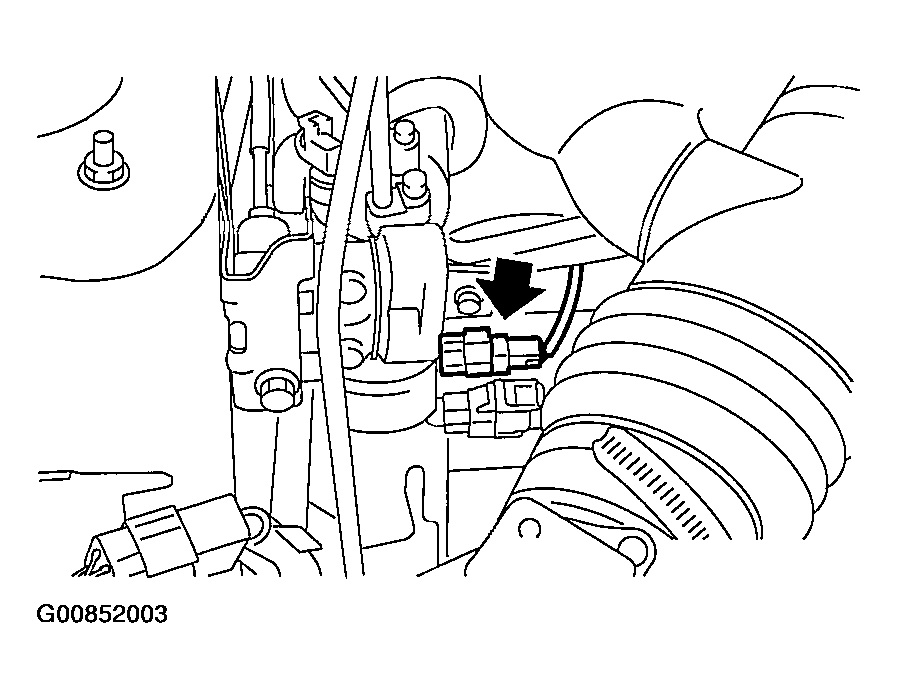

  Fig 3: Disconnecting Front Oxygen Sensor Connector (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

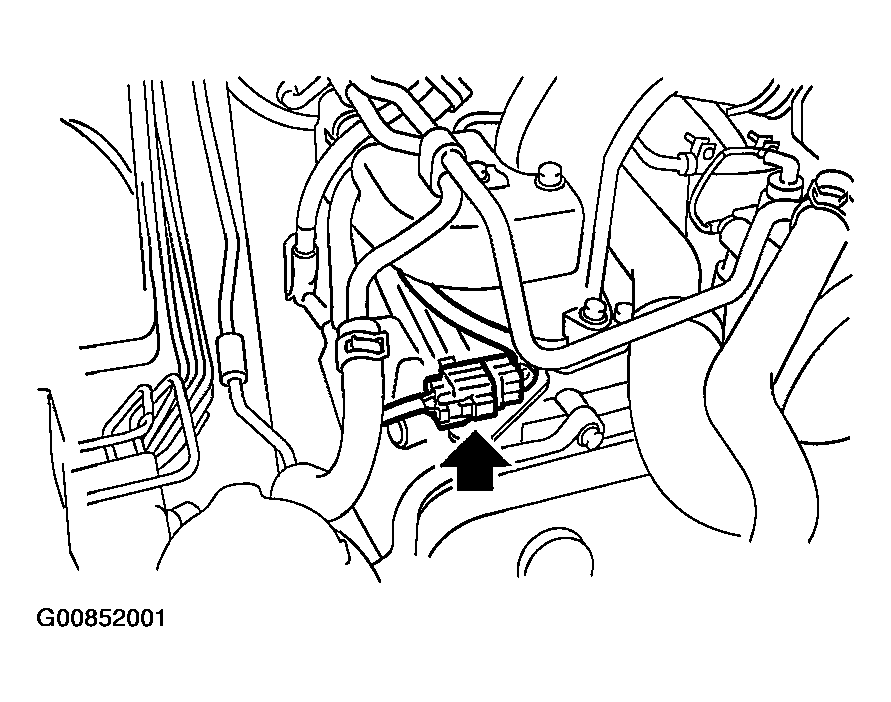

Fig 4: Disconnecting Front Oxygen Sensor Connector (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove under cover.
Disconnect rear oxygen sensor connector.

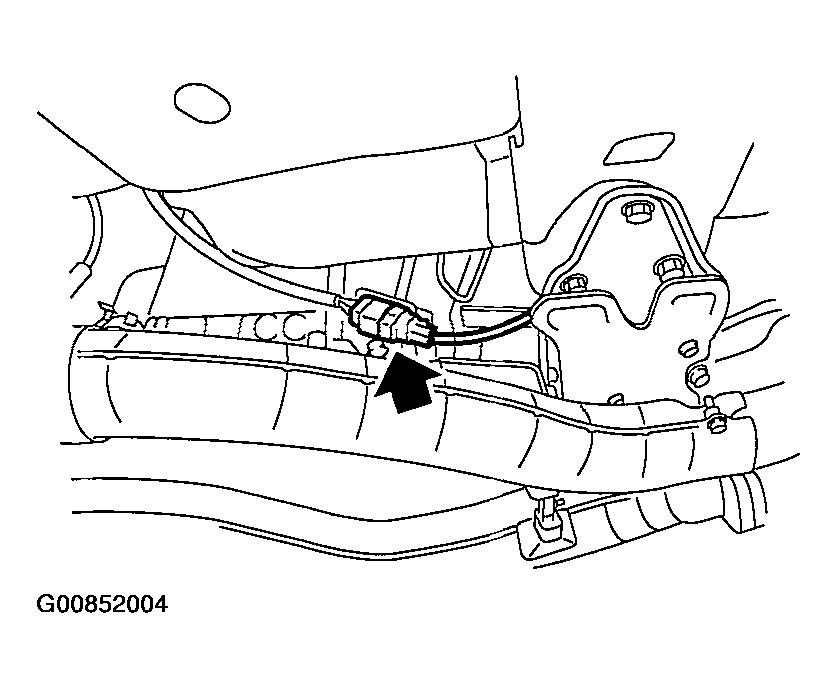

Fig 5: Disconnecting Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Separate front exhaust pipe assembly from rear exhaust pipe.
WARNING: Be careful, exhaust pipe is hot.

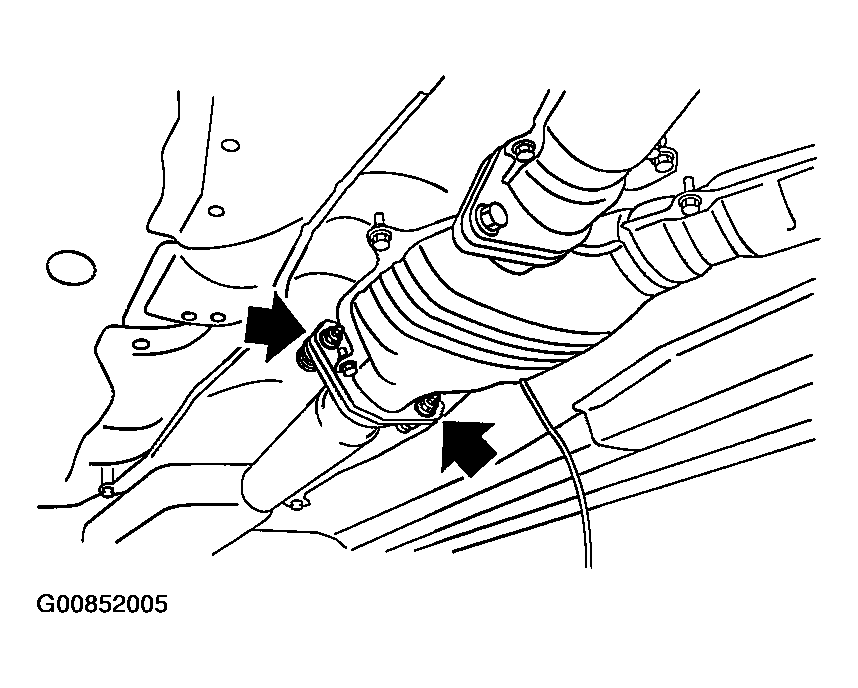

Fig 6: Separating Front Exhaust Pipe Assembly From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which hold front exhaust pipe onto cylinder heads.
CAUTION: Be careful not to pull down front exhaust pipe assembly.

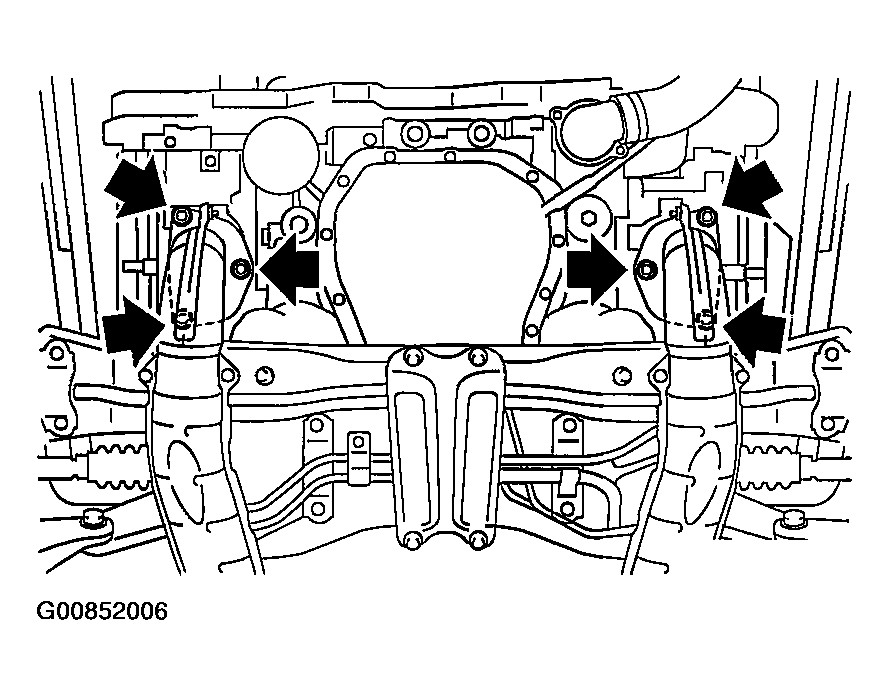

Fig 7: Removing Nuts Which Hold Front Exhaust Pipe Onto Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which secures front exhaust pipe assembly to hanger bracket.

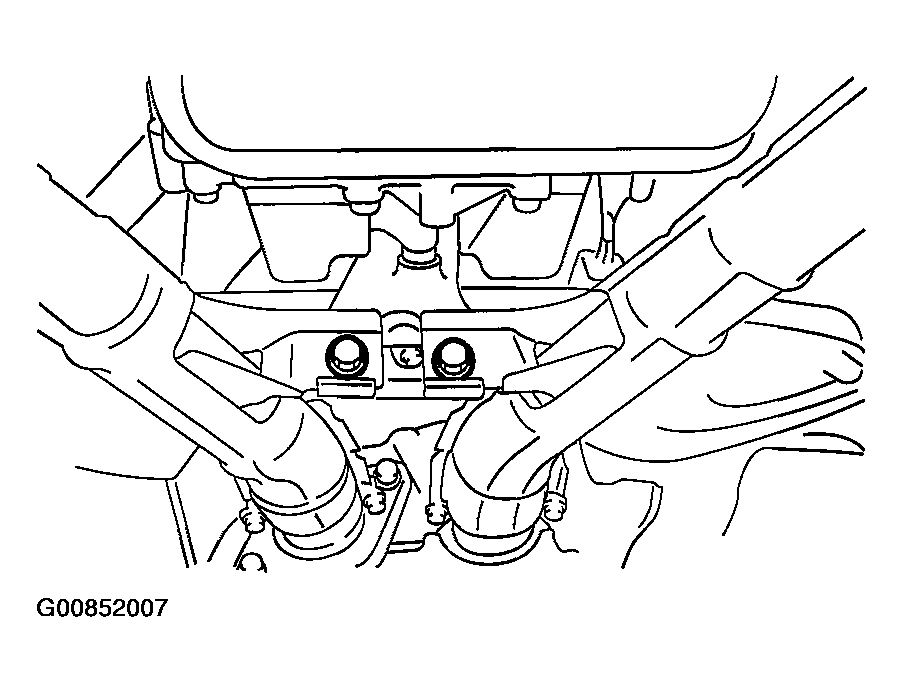

Fig 8: Removing Bolt Which Secures Front Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove front exhaust pipe from the vehicle.
CAUTION:
- Disconnect front oxygen (A/F) sensor, front oxygen sensor and rear oxygen sensor harness from bracket.
- Be careful not to let front exhaust pipe assembly fall off when removing as it is quite heavy.
- After removing front exhaust assembly, do not apply excessive pulling force on rear exhaust pipe.
Separate front exhaust pipe (RH) from front exhaust pipe assembly.

Fig 9: Separating Front Exhaust Pipe (RH) From Front Exhaust Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect front oxygen (A/F) sensor, front oxygen sensor and rear oxygen sensor. Refer to REMOVAL , Front Oxygen (A/F) Sensor. Refer to REMOVAL , Front Oxygen Sensor and REMOVAL , Rear Oxygen Sensor.
