Radiator Sub Fan & Fan Motor (H6DO): Removal

1. Disconnect battery ground cable.
2. Lift-up the vehicle.
3. Remove under cover. See Figure.
4. Disconnect connector of sub fan motor. See Fig 1.
5. Lower the vehicle.
6. Remove air intake duct. See Figure.
7. Remove bolts which hold sub fan shroud to radiator.
8. Remove radiator sub fan shroud through the under side of vehicle. See Figure.

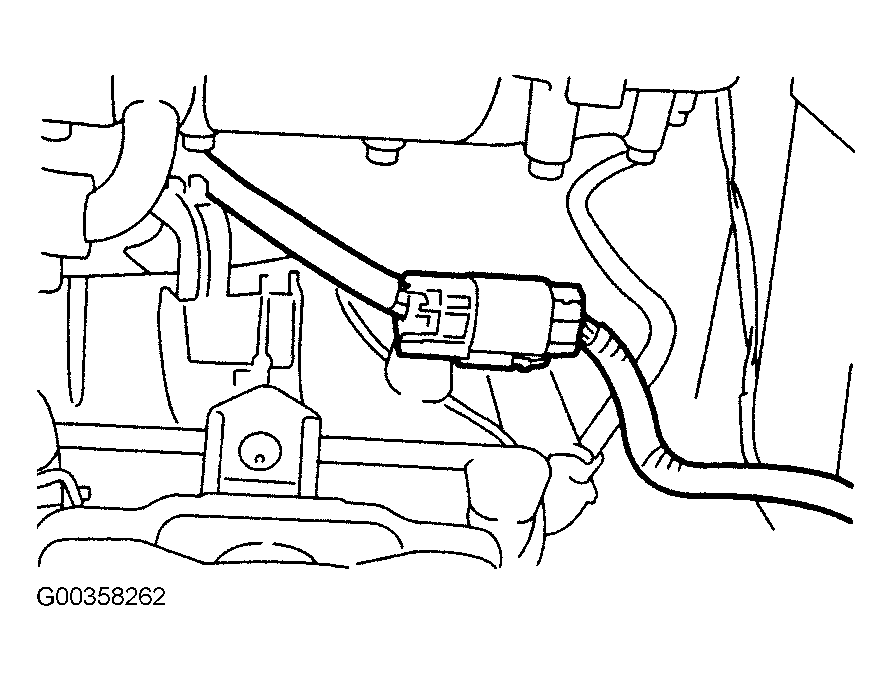

Fig 1: Disconnecting Connector Of Sub Fan Motor

Courtesy of SUBARU OF AMERICA, INC.
