Removal & Installation
- Disconnect battery ground cable.
- Lift-up the vehicle.
- Remove under cover. See Figure.

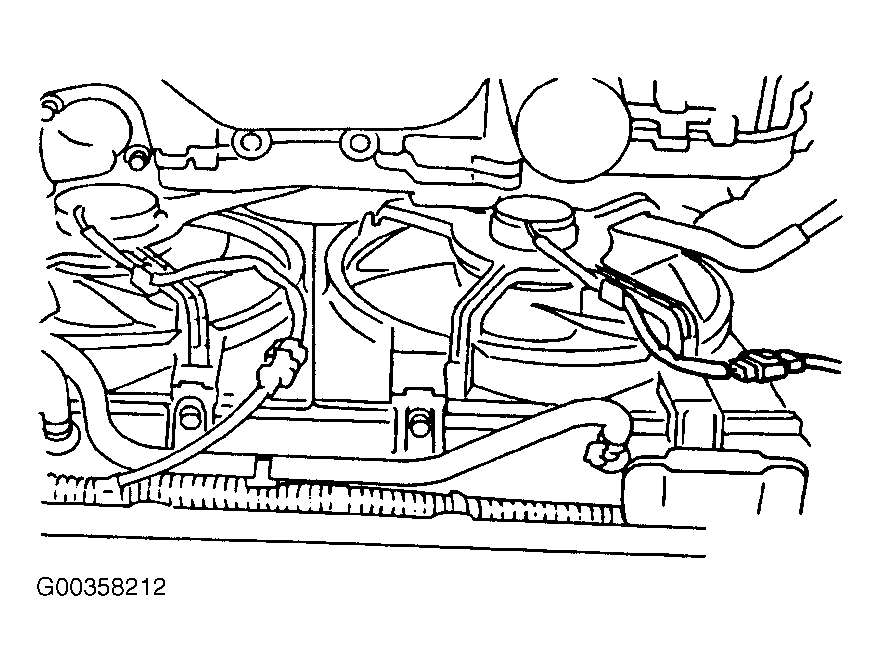

- Disconnect connector of sub fan motor. See Fig 1.
- Lower the vehicle.
- Remove air intake duct. See Figure.
- Remove bolts which hold sub fan shroud to radiator.
- Remove radiator sub fan shroud through the under side of vehicle. See Fig 2.
- Installation is the reverse order of removal. See Fig 2.
