Radiator Main Fan & Fan Motor (H4SO): Removal

1. Disconnect battery ground cable.
2. Lift-up the vehicle.
3. Remove under cover. See Fig 1.
4. Disconnect connector of main fan motor. See Fig 2.
5. Lower the vehicle.
6. Remove air intake duct. See Fig 3.
7. Disconnect over flow hose. See Fig 4.
8. Remove reservoir tank. See Fig 5.
9. Remove radiator main fan motor assembly. See Fig 6.

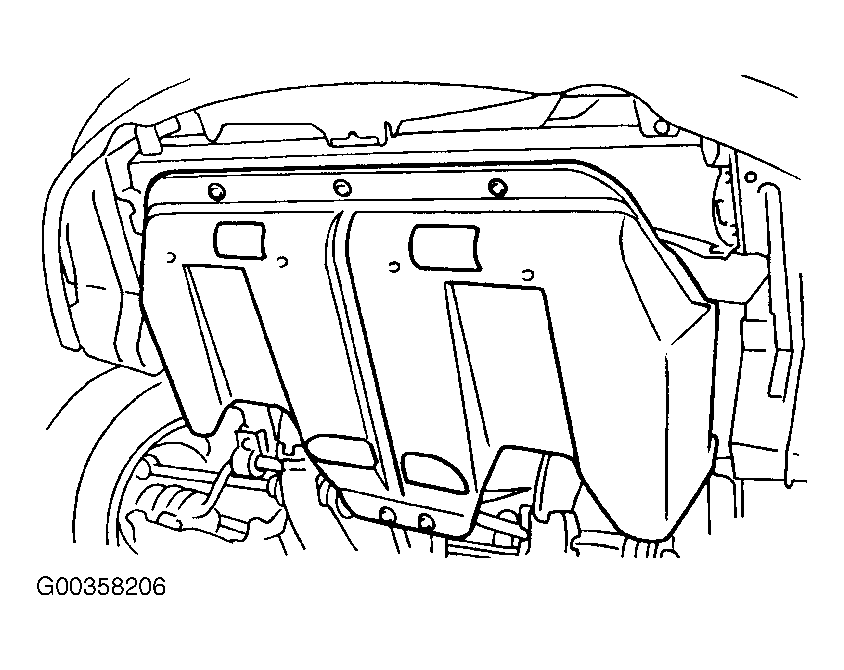

Fig 1: Removing Under Cover

Courtesy of SUBARU OF AMERICA, INC.

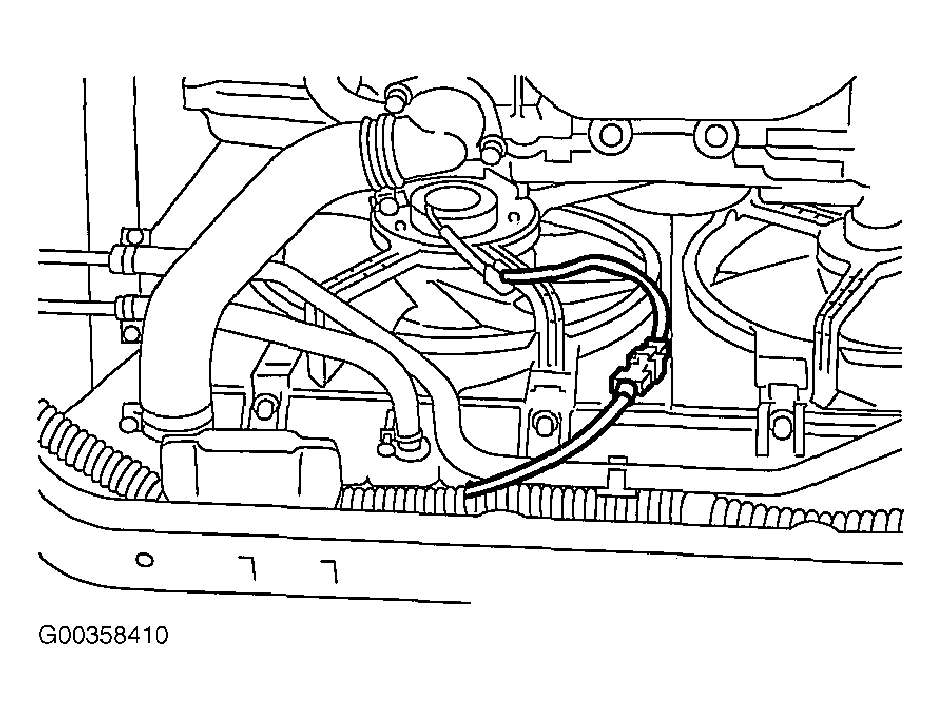

Fig 2: Disconnecting Connector Of Main Fan Motor

Courtesy of SUBARU OF AMERICA, INC.

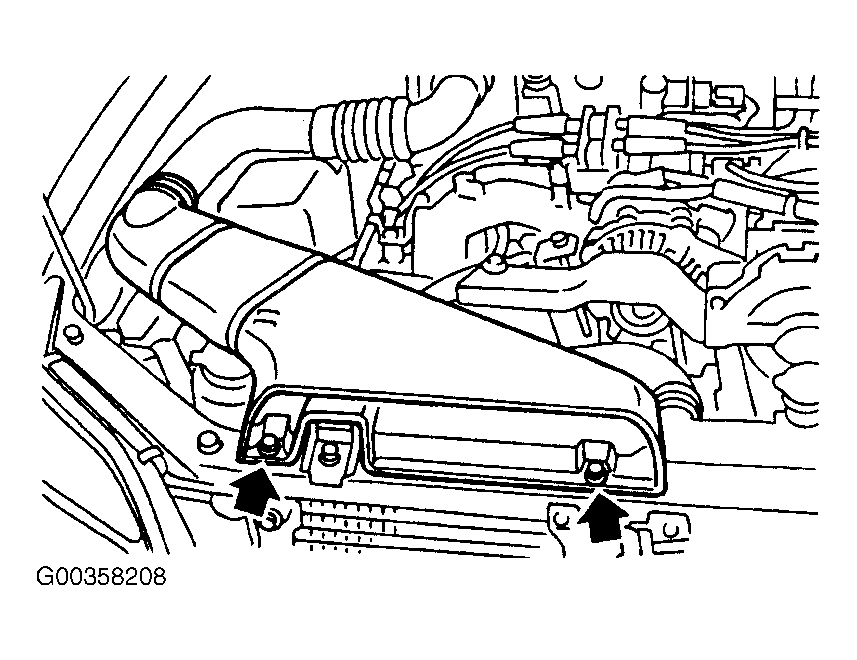

Fig 3: Removing Air Intake Duct

Courtesy of SUBARU OF AMERICA, INC.

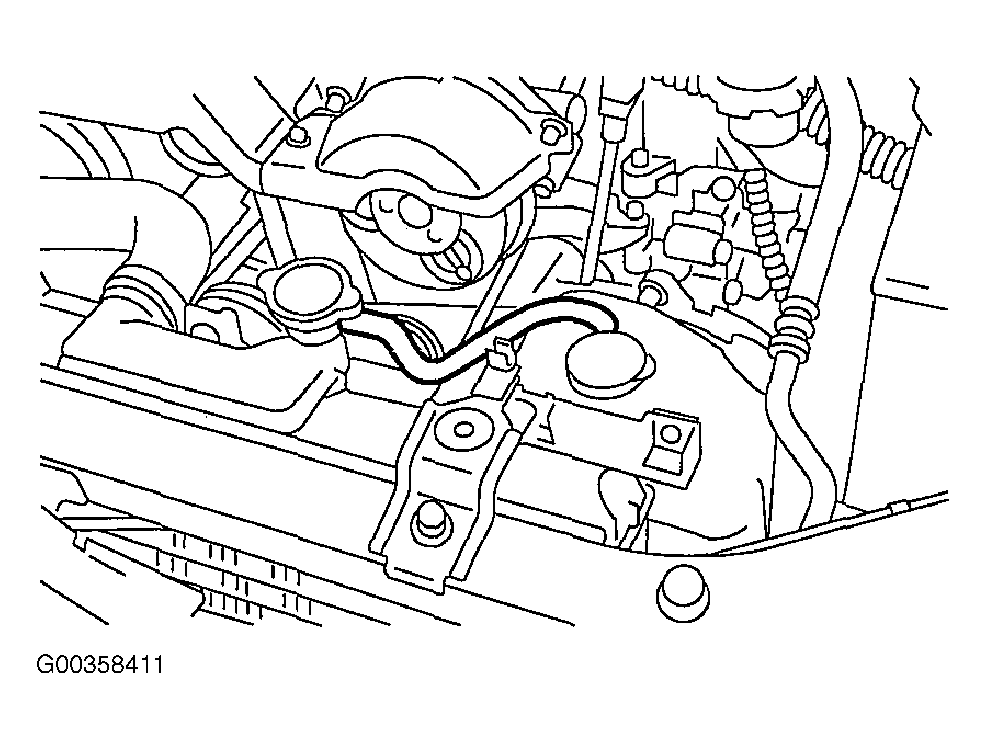

Fig 4: Disconnecting Over Flow Hose

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Removing Reservoir Tank

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Removing Radiator Main Fan Motor Assembly

Courtesy of SUBARU OF AMERICA, INC.
