Disassembly & Assembly

Remove clip which holds motor connector onto shroud. See Fig 1.
Remove nut which holds fan itself onto fan motor and shroud assembly. See Fig 2.
Remove bolts which install fan motor onto shroud. See Fig 3.
Install in the reverse order of removal. See Fig 2 and Fig 3 .

Fig 1: Removing Clip Holding Motor Connector

Courtesy of SUBARU OF AMERICA, INC.

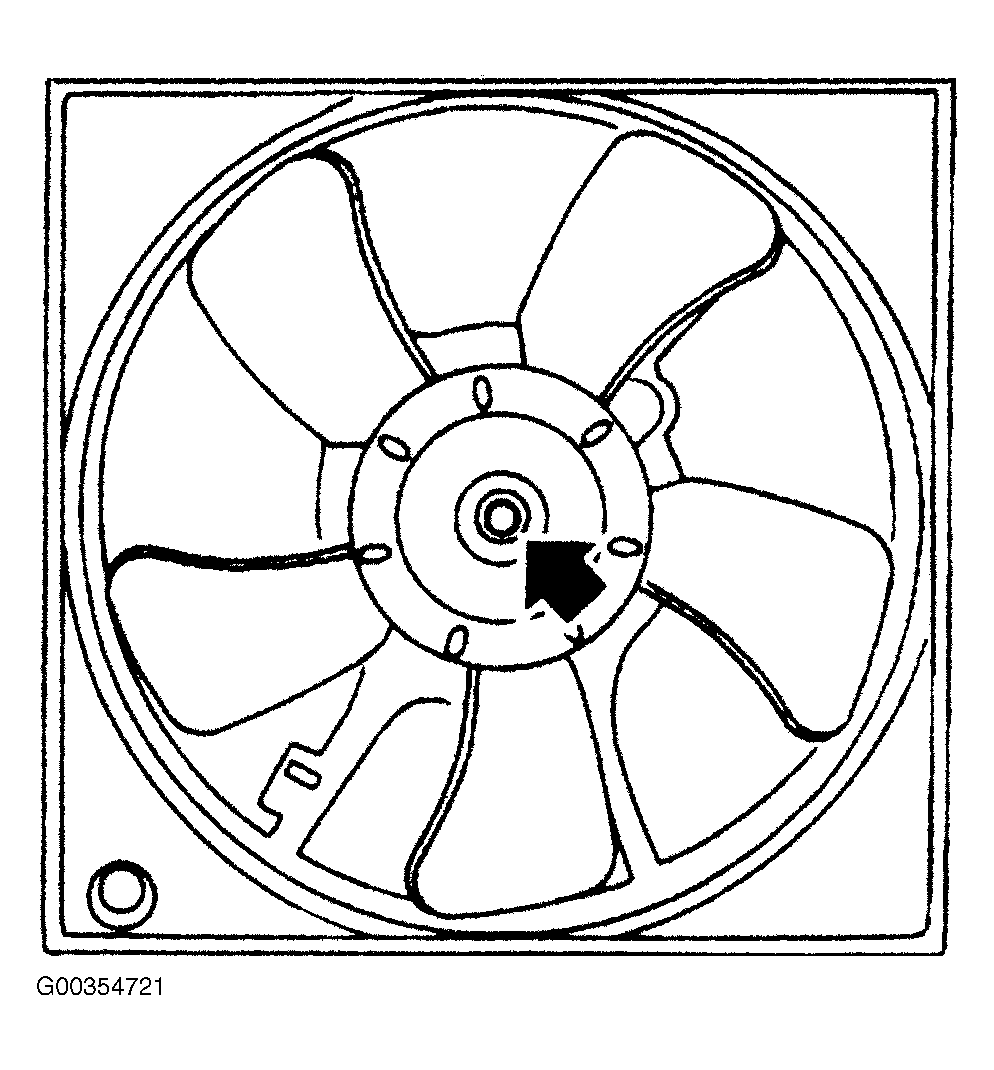

Fig 2: Removing Nut Holding Fan Onto Fan Motor & Shroud

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Removing Fan Motor-To-Shroud Bolts

Courtesy of SUBARU OF AMERICA, INC.
