Radiator Main Fan & Fan (H6DO): Removal

  1. Disconnect battery ground cable.
  2. Lift-up the vehicle.
  3. Remove under cover. See Figure.
  4. Drain engine coolant completely.
  5. Disconnect connectors of main and sub fan motor. See Fig 1.
  6. Lower the vehicle.
  7. Remove air intake duct. See Figure.
  8. Disconnect over flow hose. See Fig 2.
  9. Remove reservoir tank. See Fig 3.
  10. Disconnect radiator inlet hoses from radiator. See Fig 4.
  11. Remove radiator sub fan motor assembly. See Figure.
    NOTE: When removing main fan assembly by lifting it upward, main fan shroud will cause interference with coolant suction area. In order to avoid this, shift the main fan assembly over to sub fan side before removing it.
  12. Remove radiator main fan motor assembly. See Fig 5.

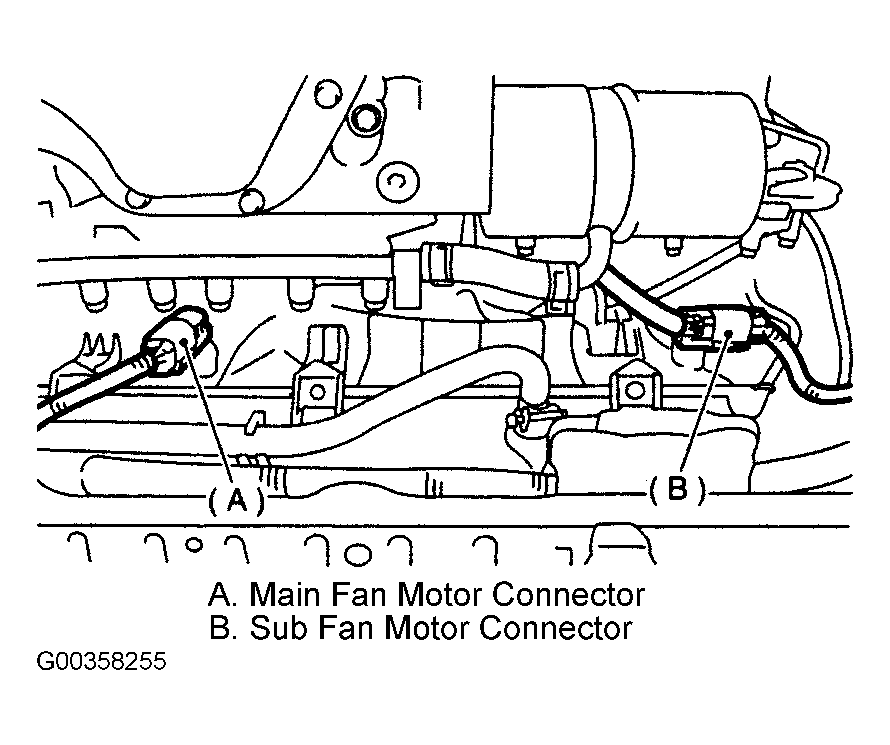

Fig 1: Disconnecting Connectors Of Main & Sub Fan Motor
G00358255Courtesy of SUBARU OF AMERICA, INC.

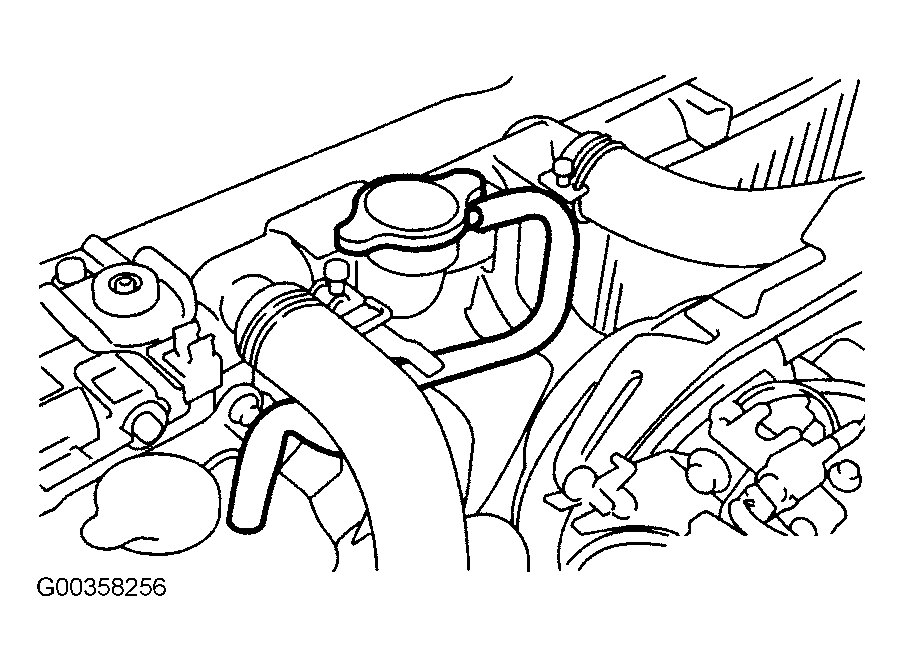

Fig 2: Disconnecting Over Flow Hose
G00358256Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Removing Reservoir Tank
G00358257Courtesy of SUBARU OF AMERICA, INC.

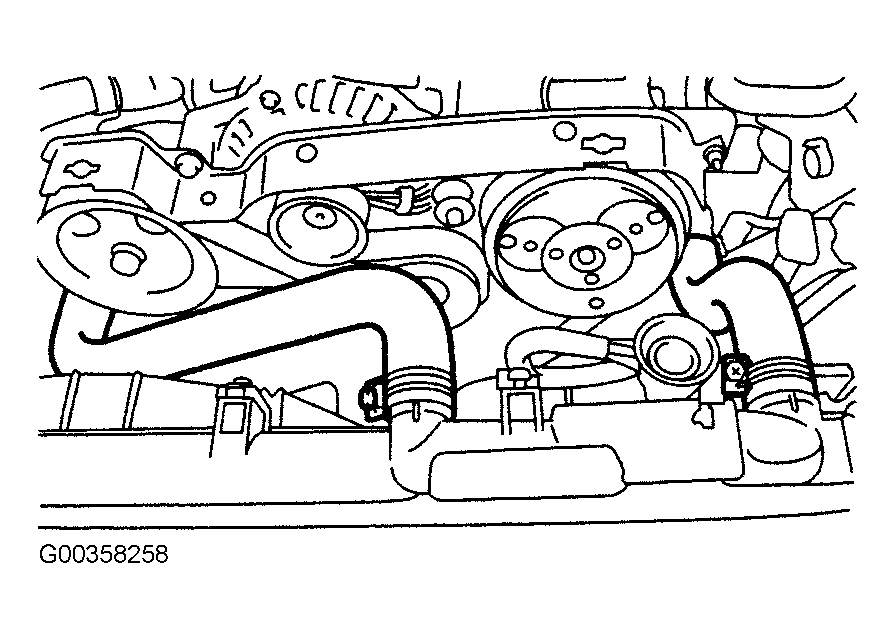

Fig 4: Disconnecting Radiator Inlet Hoses From Radiator
G00358258Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Removing Radiator Main Fan Motor Assembly
G00358260Courtesy of SUBARU OF AMERICA, INC.
