Rear Side Belt

  1. Install a belt, and tighten the slider bolt (B) so as to obtain the specified belt tension. Refer to INSPECTION , V-belt.
  2. Tighten the lock nut (A).
    1. Tightening torque:
      1. Lock nut (A):  22.6 N.m (2.3 kgf-m, 16.6 ft-lb)

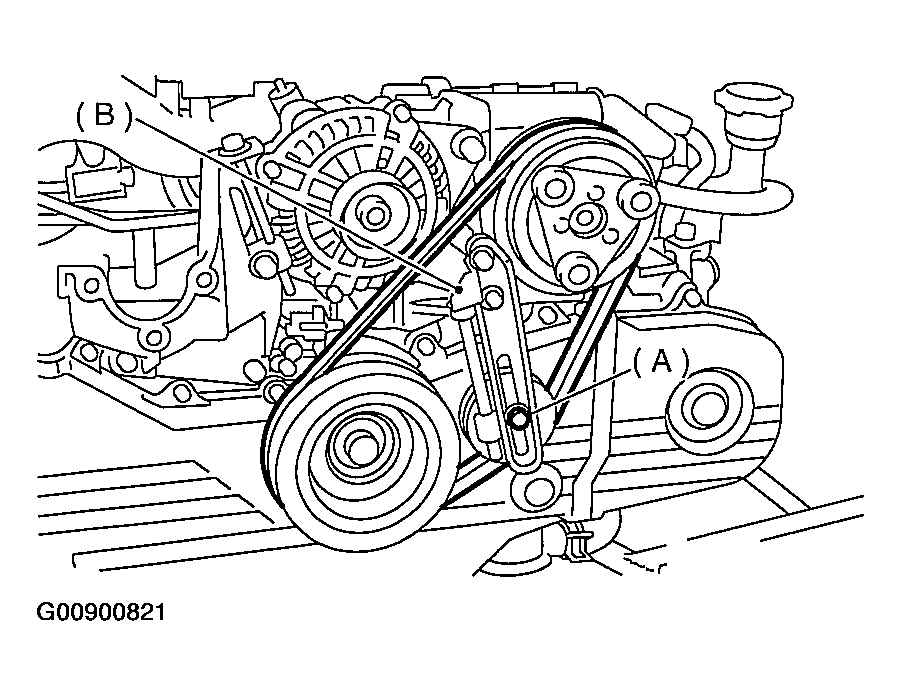

    Fig 1: Tightening Lock Nut
    G00900821Courtesy of SUBARU OF AMERICA, INC.
