Camshaft Support

Measure the thrust clearance of camshaft with dial gauge. If the clearance exceeds the limit, replace camshaft support.

1. Standard:  0.030 - 0.090 mm (0.0012 - 0.0035 in)
2. Limit:  0.10 mm (0.0039 in)

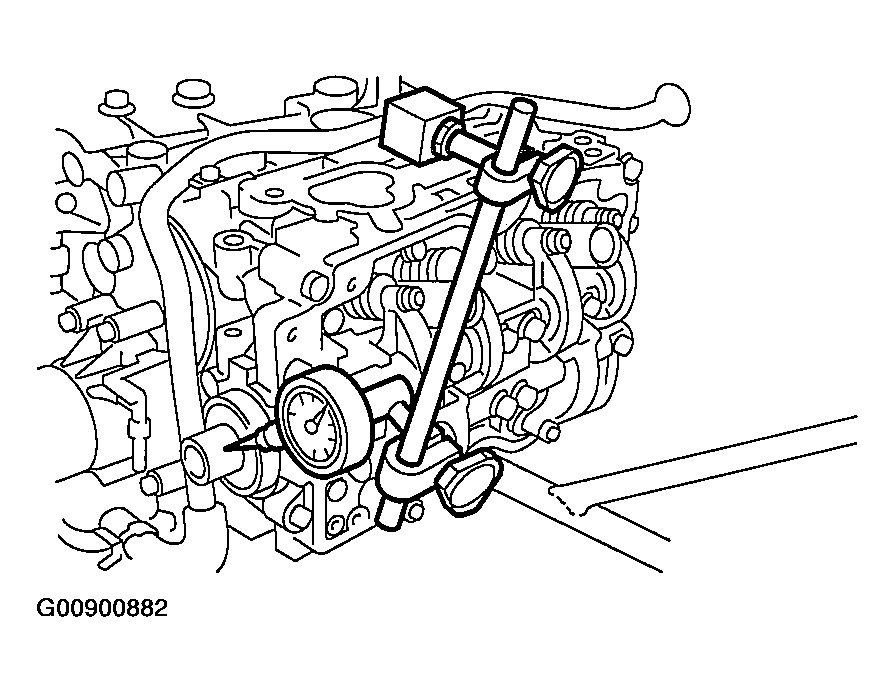

Fig 1: Measuring Camshaft Thrust Clearance Using Dial Gauge

Courtesy of SUBARU OF AMERICA, INC.
