DTC 64: Abnormal Outlet And Suction Solenoid Valve Circuit(S) (Secondary Suction): Wiring Diagram

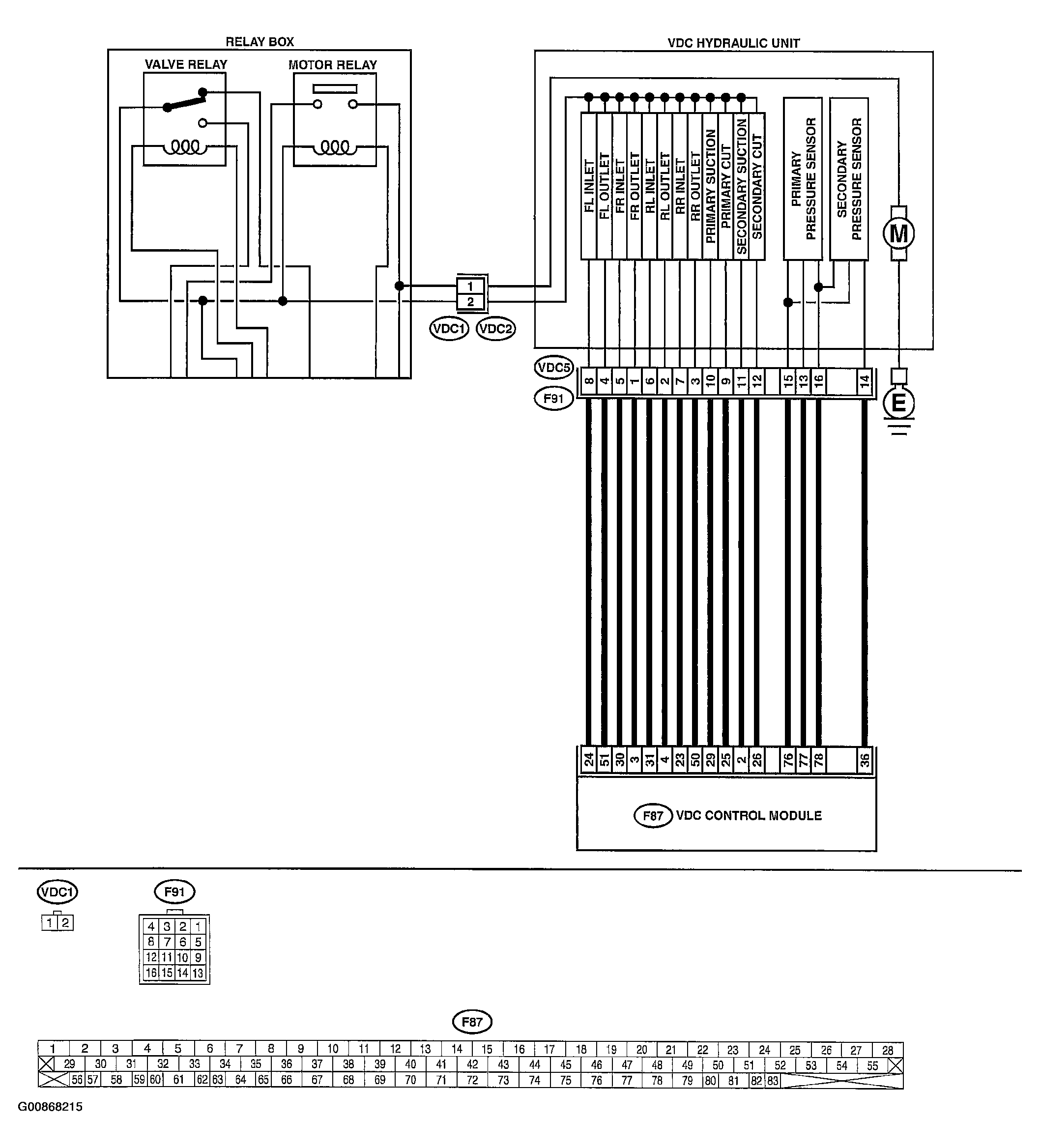

Fig 1: DTC 64 Abnormal Outlet & Suction Solenoid Valve Circuit(s) (Secondary Suction) Wiring Diagram
G00868215Courtesy of SUBARU OF AMERICA, INC.
