Diagnostic Charts

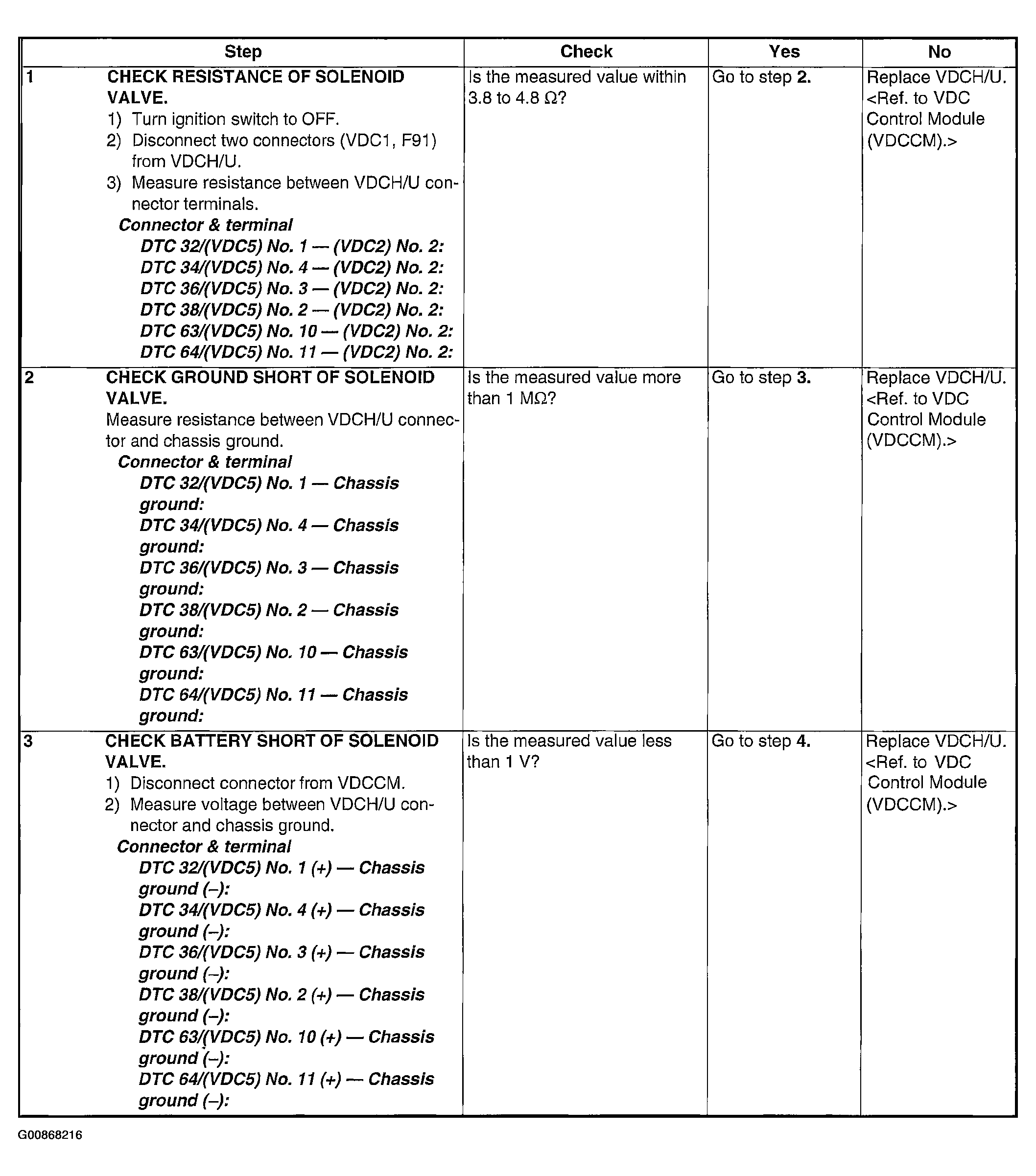

Fig 1: DTC 64 Abnormal Outlet & Suction Solenoid Valve Circuit(s) (Secondary Suction) Diagnostic Chart (1 Of 3)
G00868216Courtesy of SUBARU OF AMERICA, INC.

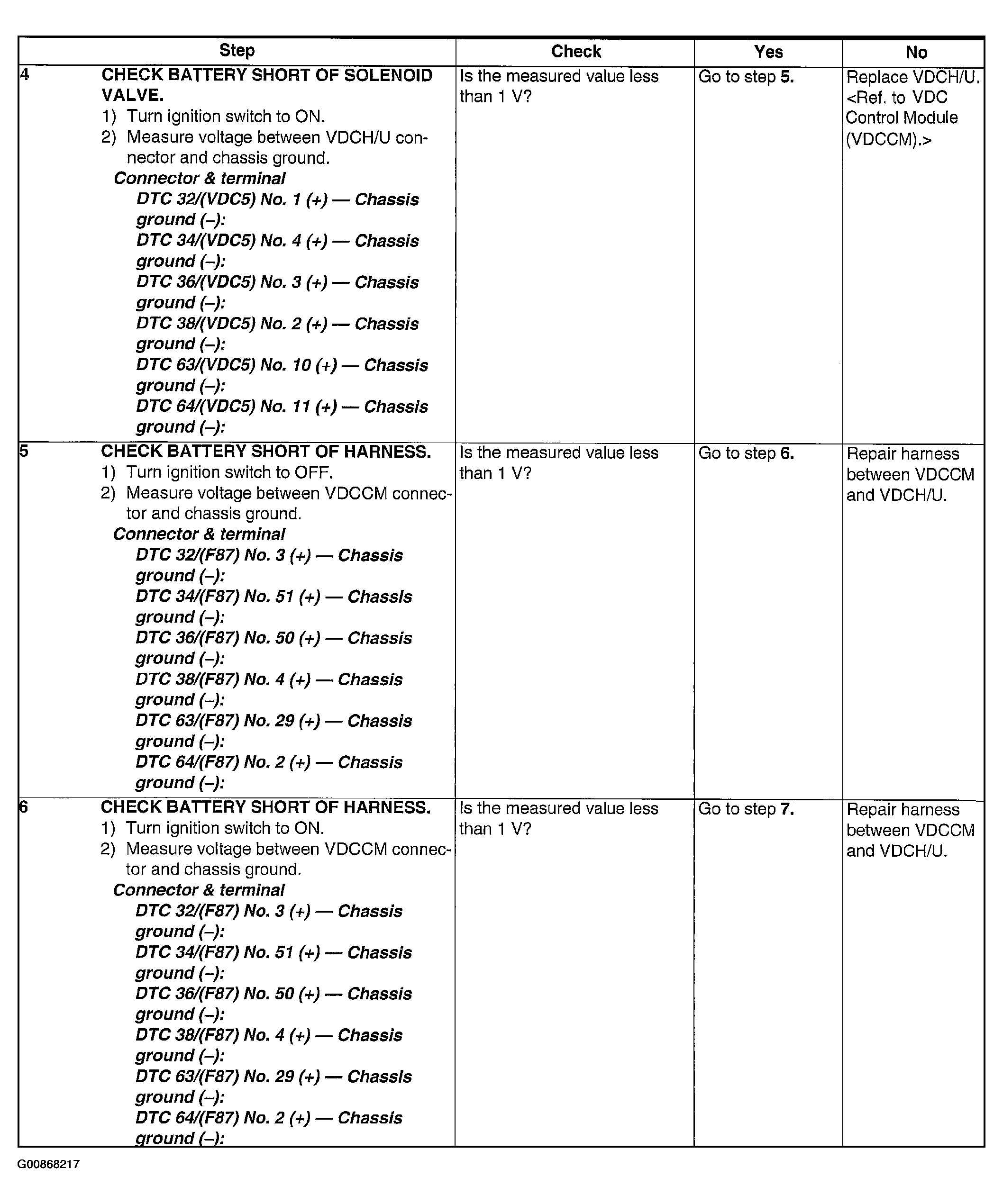

Fig 2: DTC 64 Abnormal Outlet & Suction Solenoid Valve Circuit(s) (Secondary Suction) Diagnostic Chart (2 Of 3)
G00868217Courtesy of SUBARU OF AMERICA, INC.

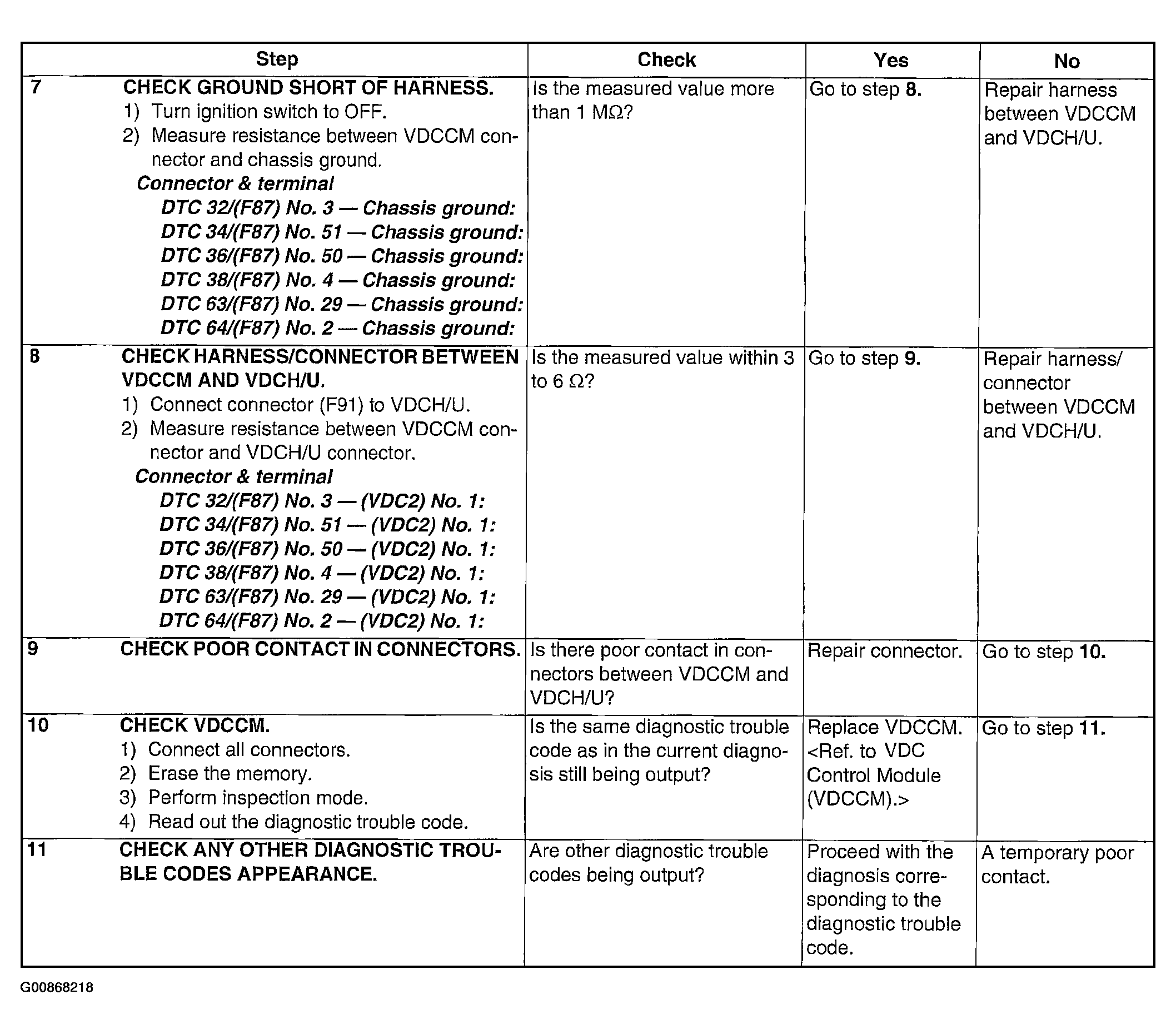

Fig 3: DTC 64 Abnormal Outlet & Suction Solenoid Valve Circuit(s) (Secondary Suction) Diagnostic Chart (3 Of 3)
G00868218Courtesy of SUBARU OF AMERICA, INC.
