DTC 62: Abnormal Inlet And Cut Solenoid Valve Circuit(S) (Secondary Cut): Wiring Diagram

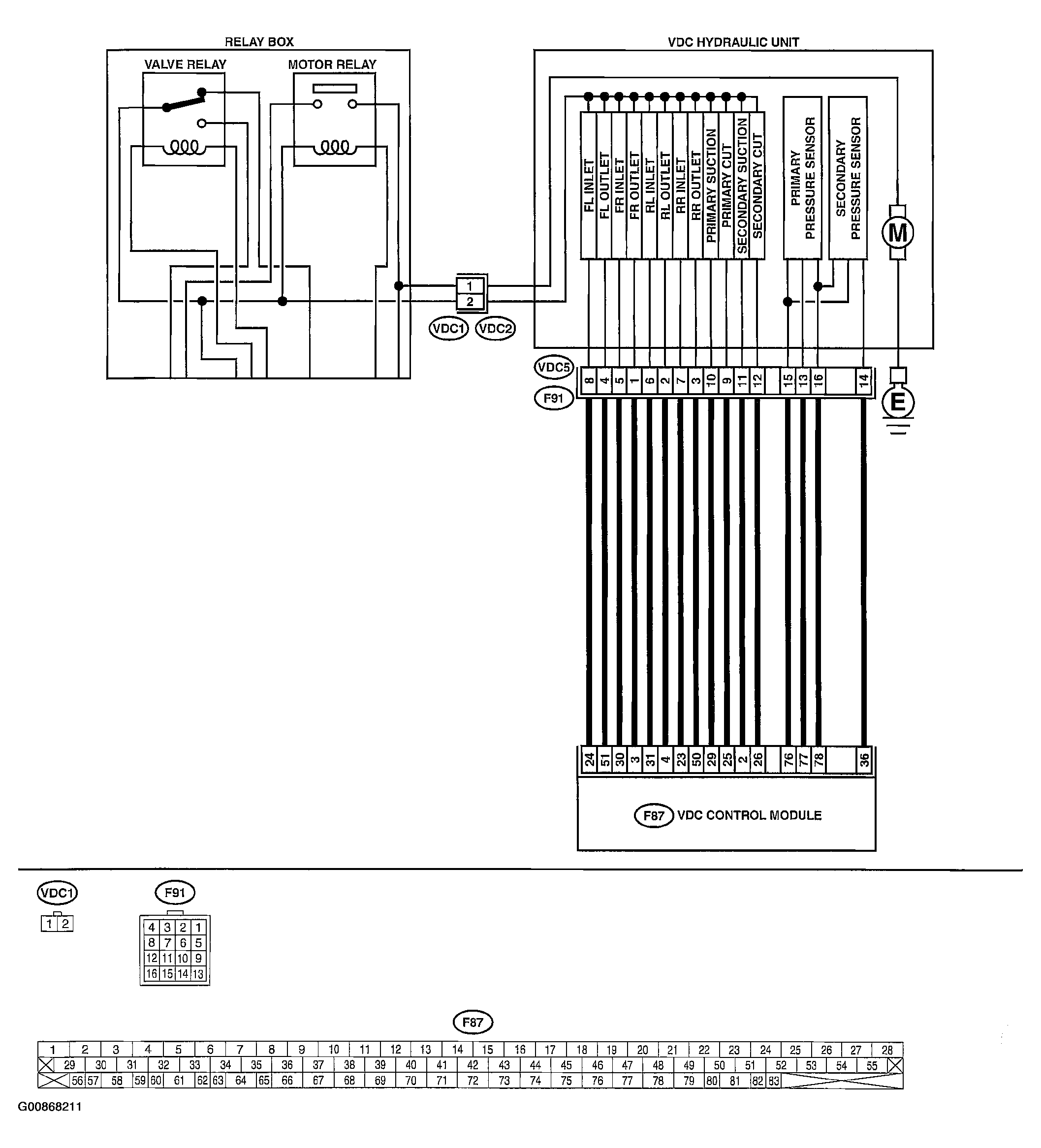

Fig 1: DTC 62 Abnormal Inlet & Cut Solenoid Valve Circuit(s) (Secondary Cut) Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
