Diagnostic Charts

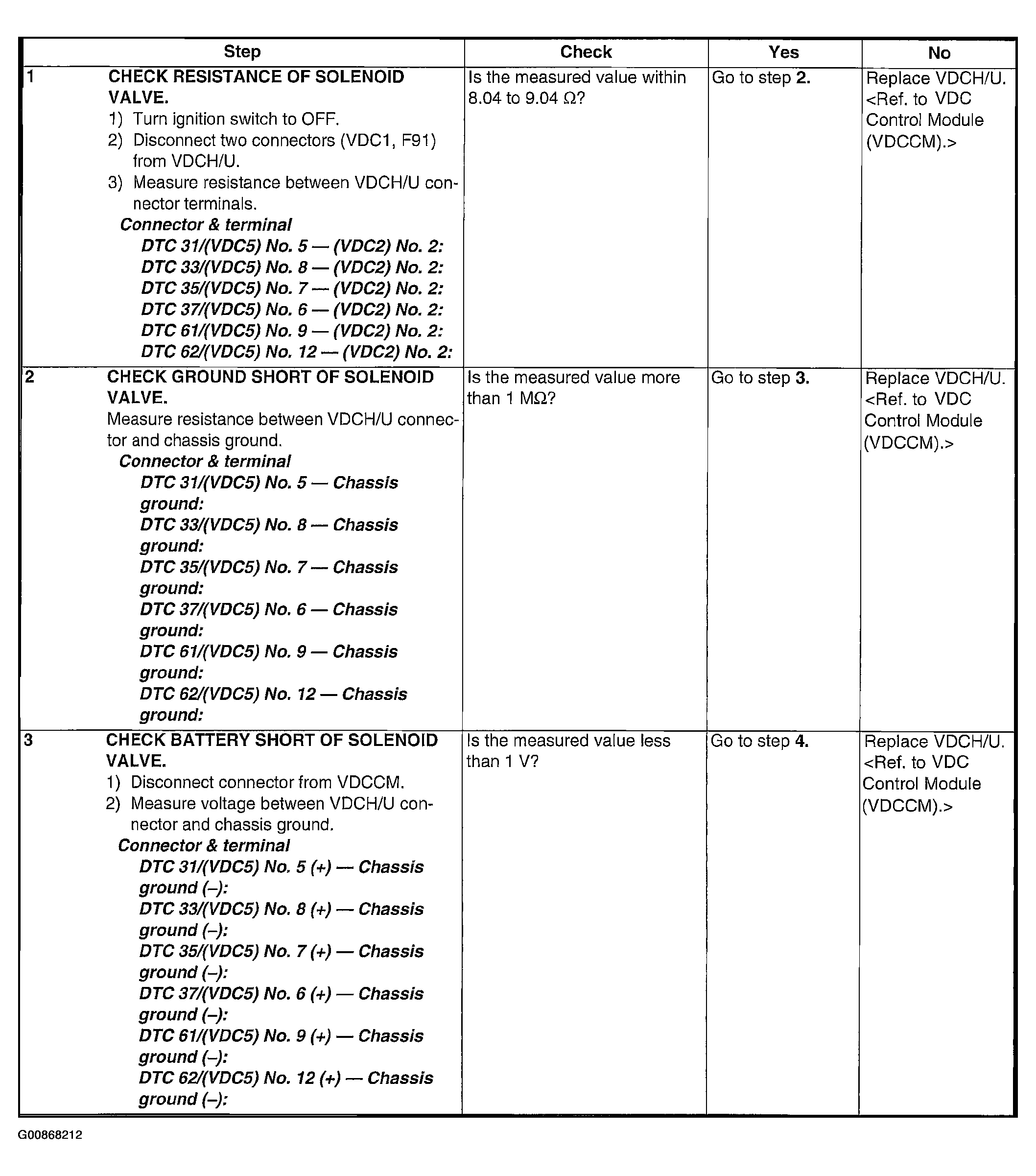

Fig 1: DTC 62 Abnormal Inlet & Cut Solenoid Valve Circuit(s) (Secondary Cut) Diagnostic Chart (1 Of 3)
G00868212Courtesy of SUBARU OF AMERICA, INC.

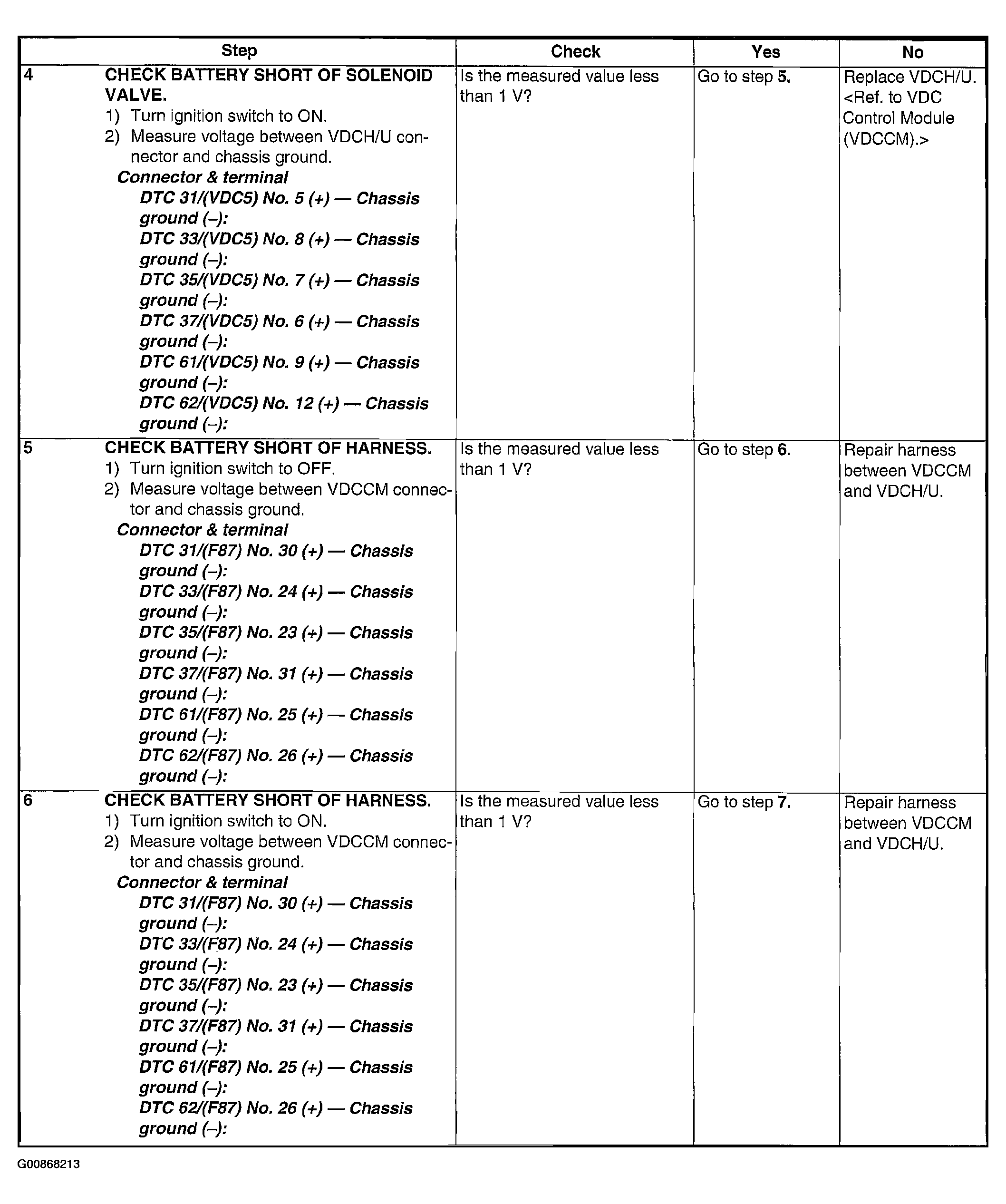

Fig 2: DTC 62 Abnormal Inlet & Cut Solenoid Valve Circuit(s) (Secondary Cut) Diagnostic Chart (2 Of 3)
G00868213Courtesy of SUBARU OF AMERICA, INC.

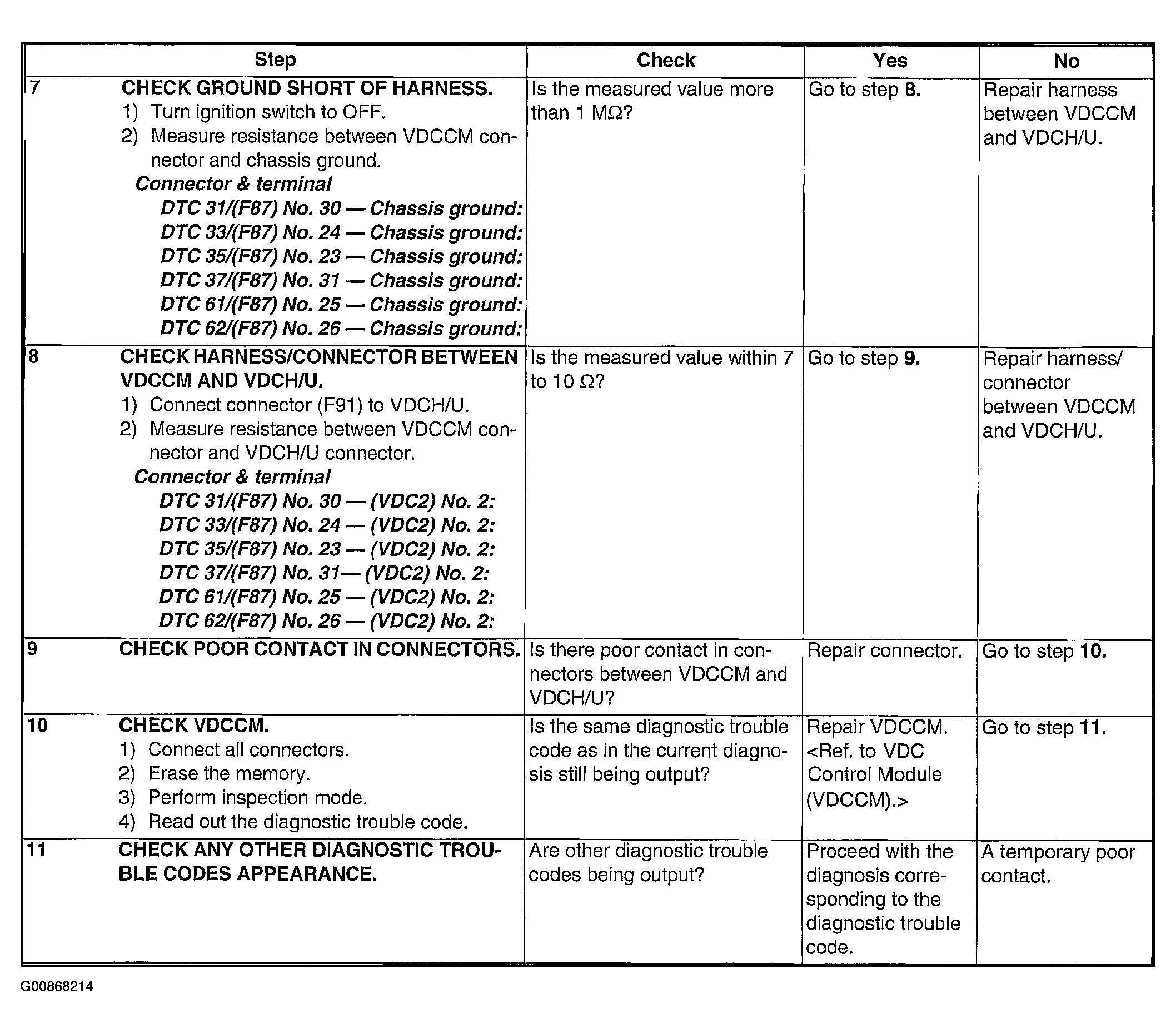

Fig 3: DTC 62 Abnormal Inlet & Cut Solenoid Valve Circuit(s) (Secondary Cut) Diagnostic Chart (3 Of 3)
G00868214Courtesy of SUBARU OF AMERICA, INC.
